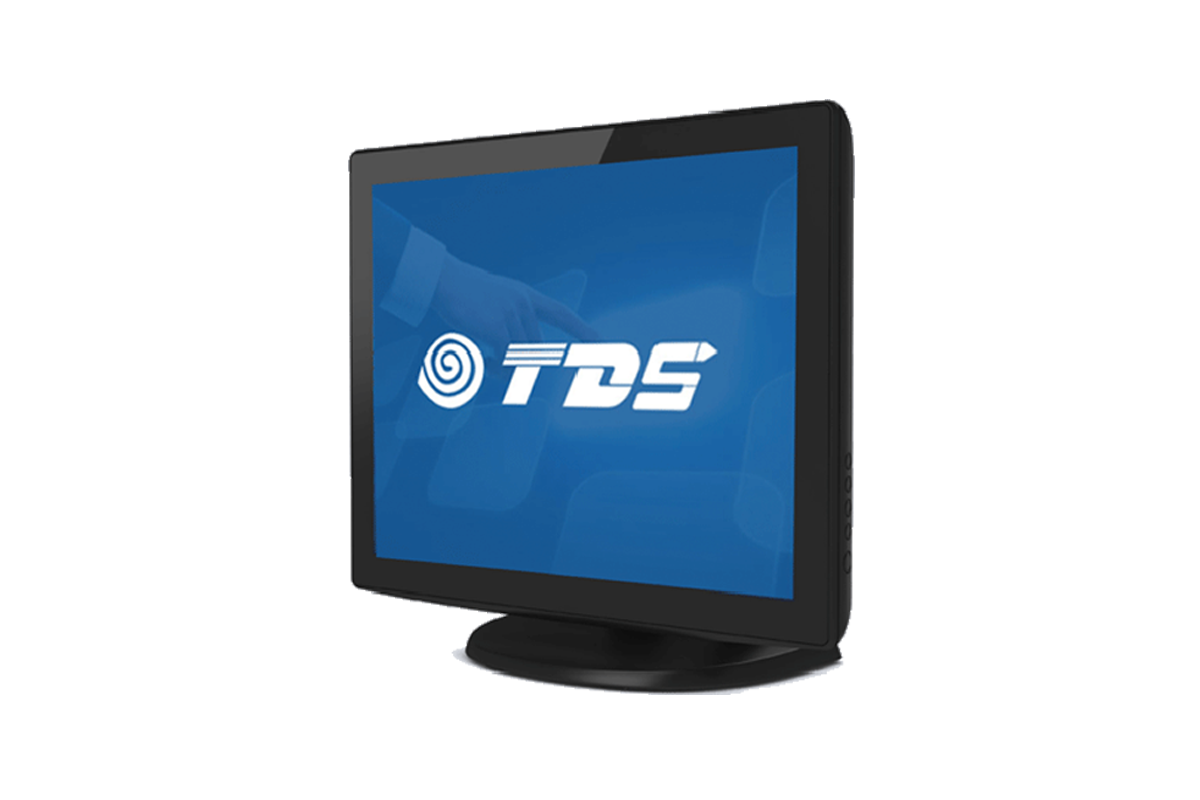

Suited for Retail, Information acquisition desk, Service station, Conference terminal, Cash register system, Library inquiry terminal.
- Zero bezel design
- ABS+PC plastic shell

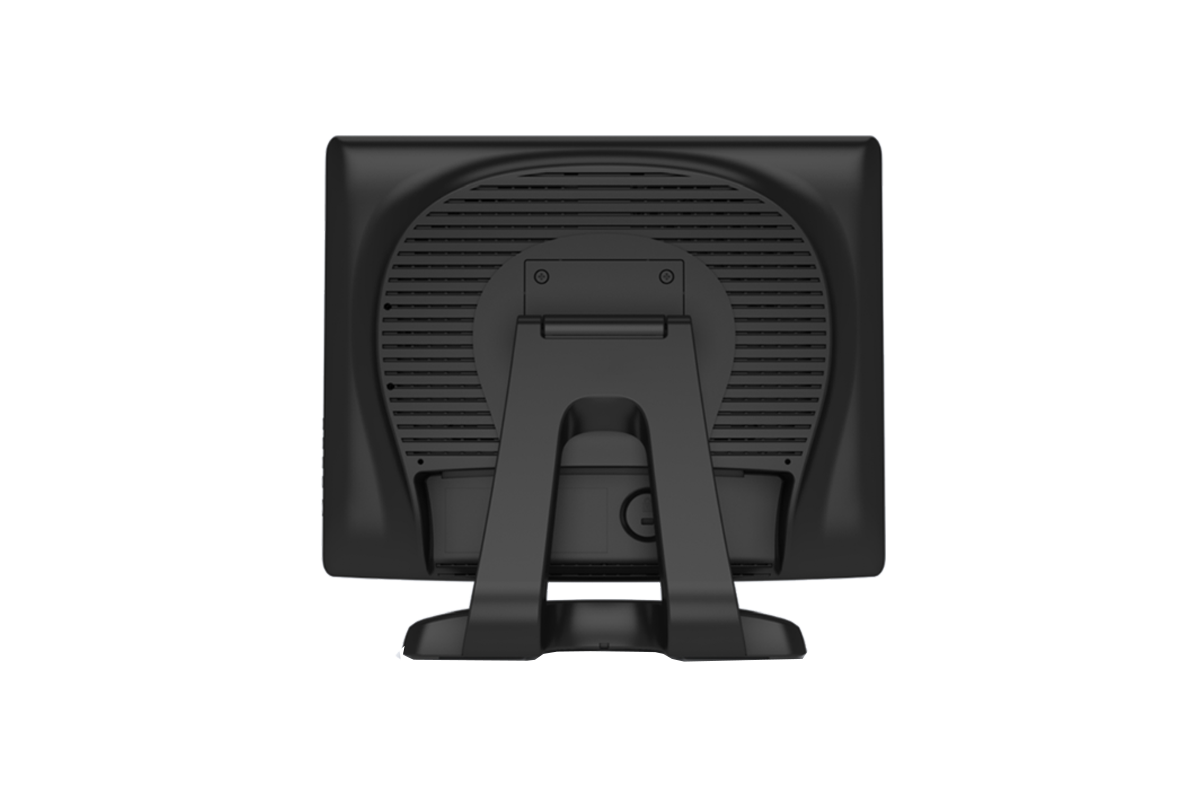

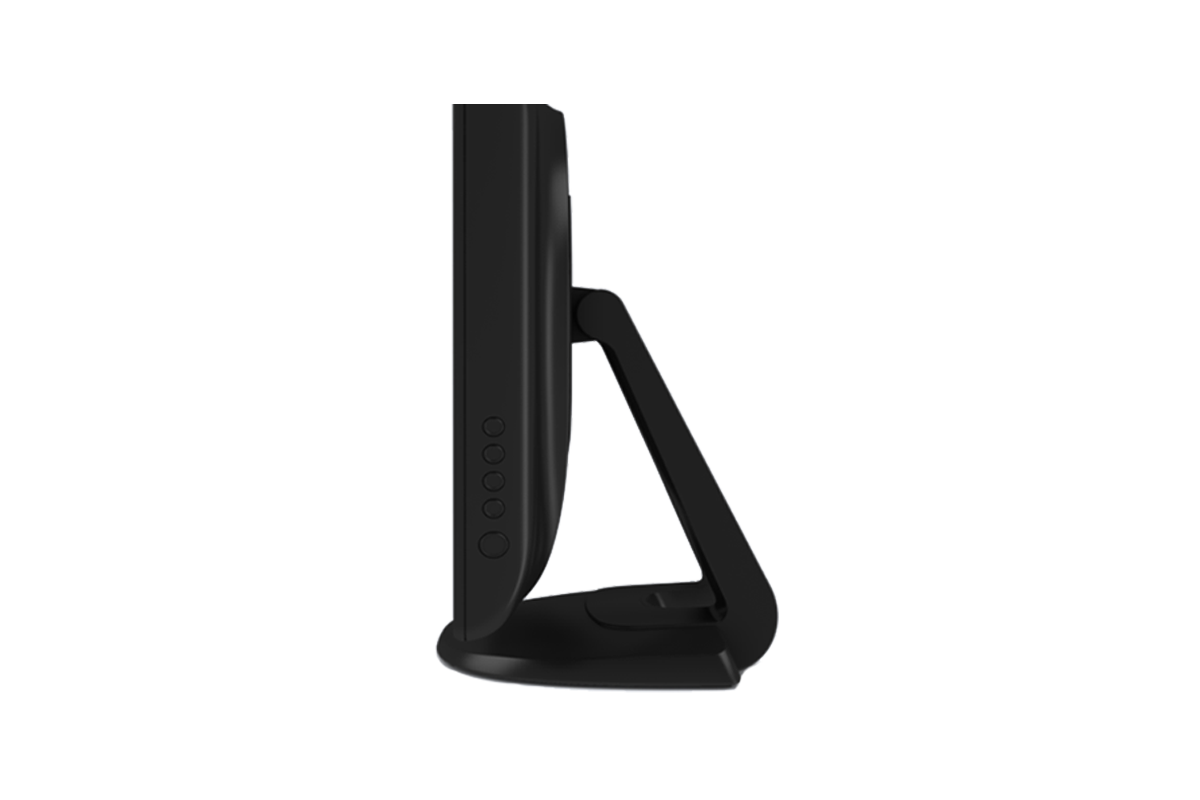

- Stable base with adjustable angle
- Industrial grade LCD, LED back-light
- 1024 X 768 DPI 60HZ
- 10-point PCAP touchscreen
- Anti-fingerprint, Anti-Explosion glass
- Support Windows, Android, Linux
- 3 Years warranty
Optional:
- No Touch
- Privacy filter
- Touch interface:Dual serial/USB
- Video interface: Display Port
- ALL-IN-ONE(Windows/Android)
Specifications
Model
TDS1501E
Color
Black
Diagonal
15"
Aspect Ratio
4:3
Active Area
304.12 x 228.09(mm)
Dimensions
350 x 280 x 52(mm)
Resolution
1024X768@60Hz
Viewing Angle
Horizontal: 89°/89°, Vertical: 89° /89°
Number of Colors
16.2M
Brightness (typical)
LCD Panel: 300 nits, PCAP: 275 nits
Response Time
20ms
Contrast Ratio
1500:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Speakers
TwoX2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
1kg steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 4.2KG
Shipping Dimensions
520 x 340 x 135(mm)
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 70%; Storage: 10% to 80%
MTBF
50,000 hours demonstrated
Mounting Options
VESA:75X75(mm),100X100(mm)
Base Adjustable Angle
0-90 degrees(Optional)
Power Supply
DC:12V3A
Warranty
3-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows/Linux\Android
What's in the Box
1*USB cable,1*VGA cable,1*DC cable
Accessories
Enhancements, expansions, and extras.
20F Stand
20A Stand
Backpack-A03 for Android Rk3399
Backpack-A05 for Windows10
