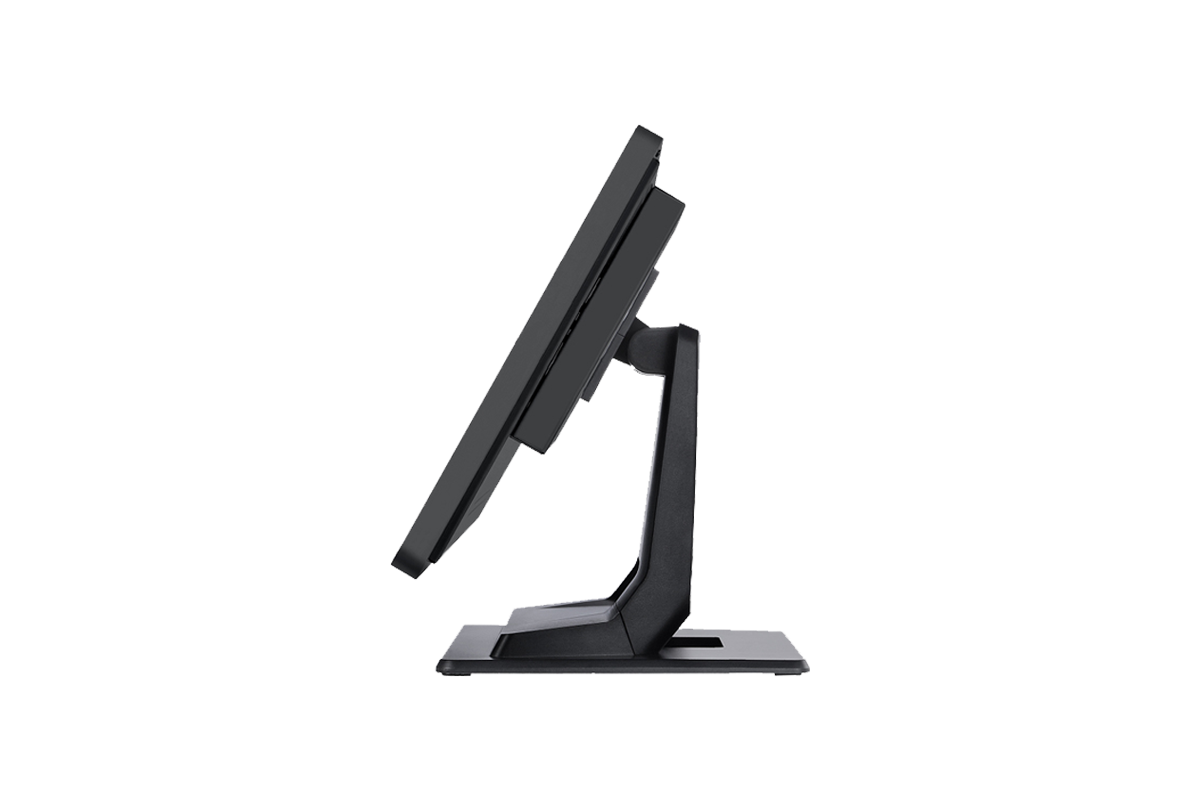

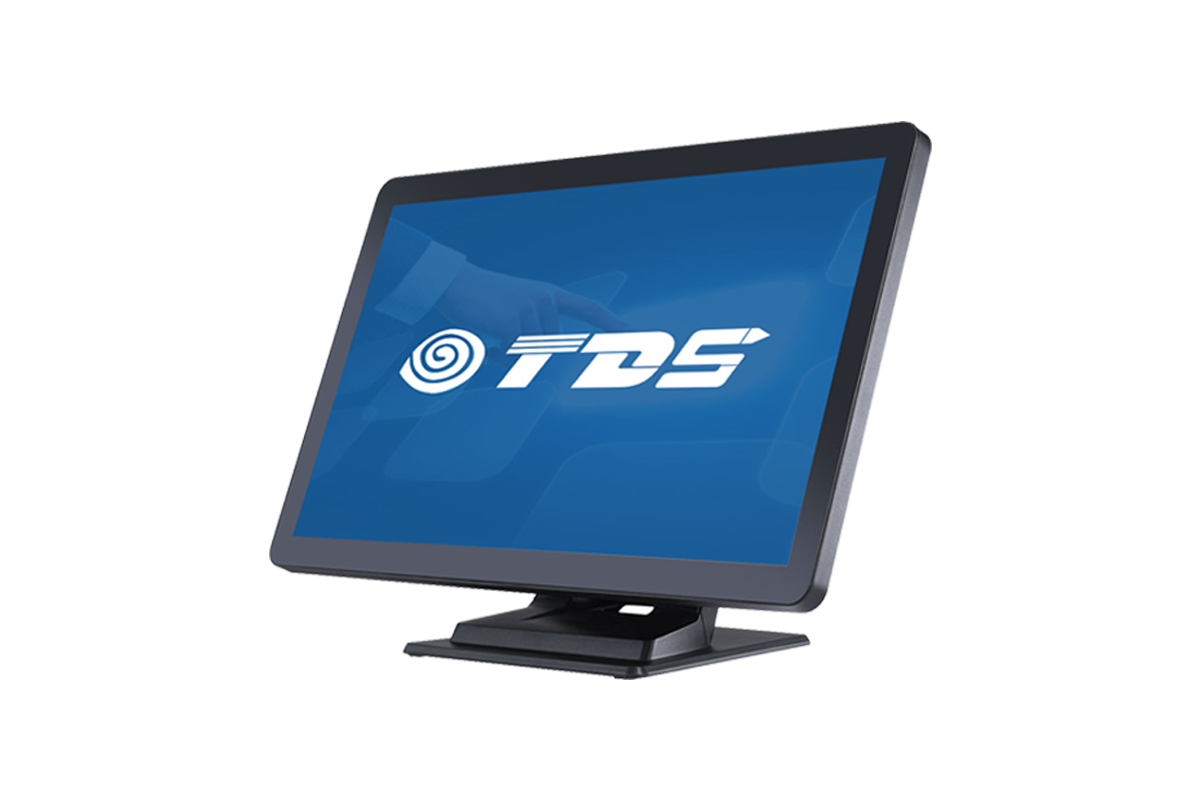

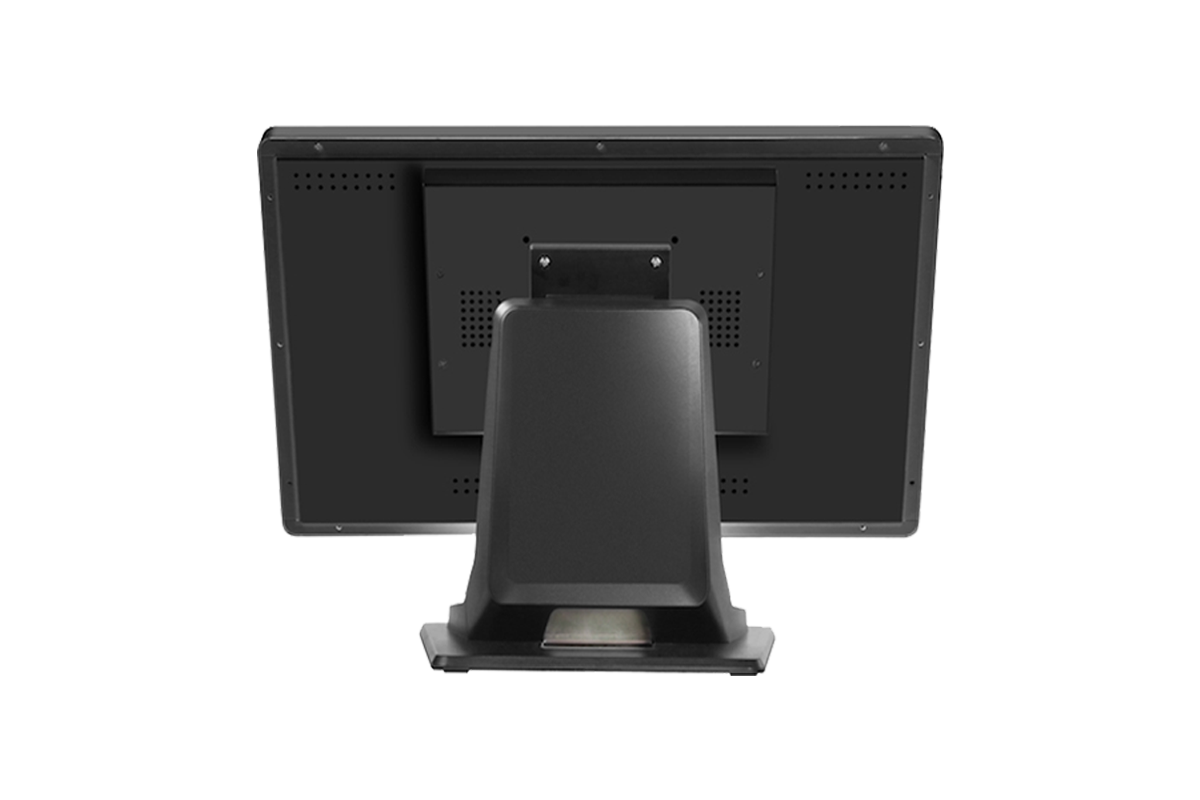

2402C 24" Desktop Touchscreen Monitor
Cashier, self-service, digital signage hospitality applications, electronic menus, fitness equipment, information desks.
+ Flat appearance design
+ Metal shell, ultra-thin shape
+ Commercial grade LCD, LED backlight
+ Resolution 1920X1080FHD@60Hz
+ Widescreen full viewing Angle
+ Supports vertical and horizontal screen
+ 10 point projective capacitive touch scree
+ Cover plate anti riot and anti fingerprint
+ Video interface: HDMI+VGA
+ Stable base with adjustable angle
+ Back VESA wall hanging hole
+ Support OS: Windows/Android/Linux
+ 2 Year Warranty
Optional:
- No Touch
- Private Filter - AG Coating
- Video interface: Display Port
- All-in-one (Windows/Android)
Specifications
Model
TDS2402C
Color
Black
Diagonal
24"
Aspect Ratio
16:9
Active Area
521 x 293(mm)
Dimensions
577 x 355 x 46(mm)
Resolution
1920 X 1080@60Hz
Viewing Angle
Horizontal: 89°/89°
Vertical: 89° /89°
Number of Colors
16.7M
Brightness (typical)
LCD Panel: 300 nits
PCAP: 275 nits
Response Time
5ms
Contrast Ratio
3000:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Speakers
TwoX2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
1kg steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 5.5KG
Shipping Dimensions
600 X 395 X 175(mm)
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
30,000 hours demonstrated
Mounting Options
VESA:75X75(mm)
100X100(mm)
Base Adjustable Angle
0-90 degrees(Optional)
Power Supply
DC:12V3A
Warranty
3-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows/Linux\Android
What's in the Box
1*USB cable,1*VGA cable,1*DC cable
Accessories
Enhancements, expansions, and extras.
20F Stand
20A Stand
Backpack-A03 for Android Rk3399
Backpack-A05 for Windows10
Resources
- 2402C Specification & Drawing
