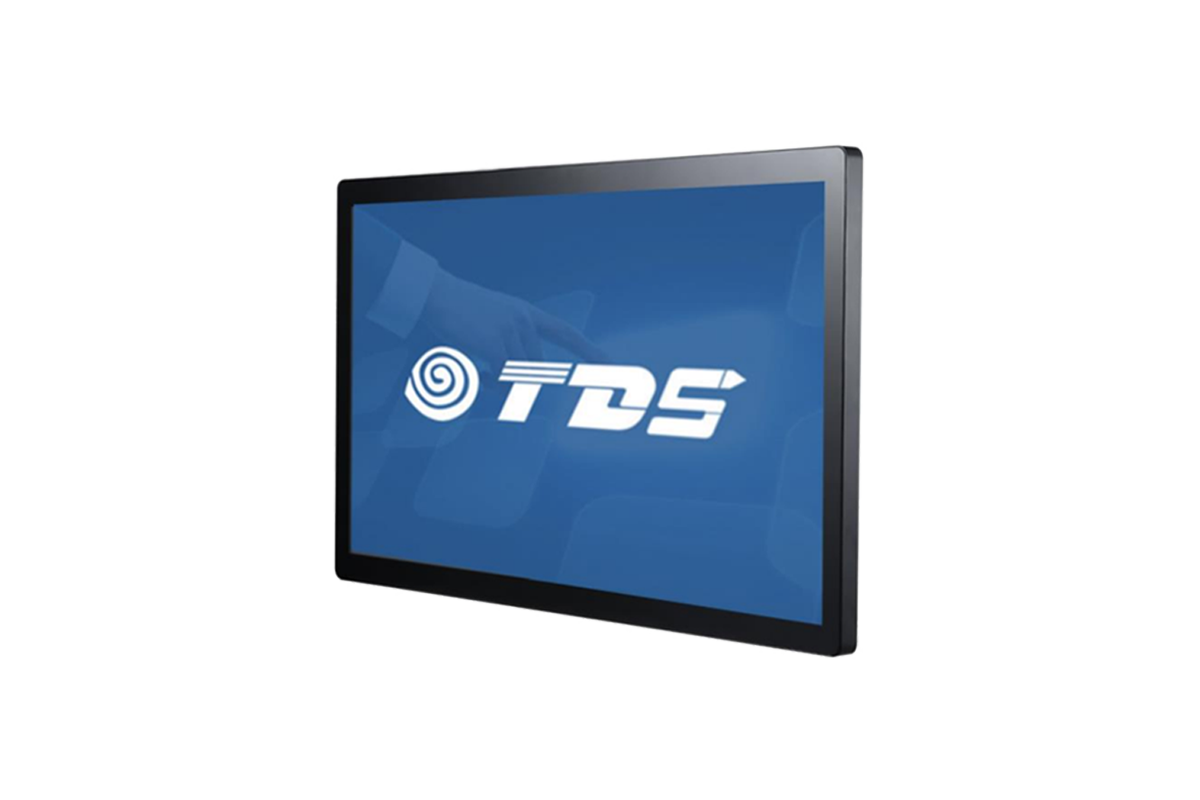

5502D 55" Touchscreen Monitor
Digital signage, brand experience, electronic menus, conference terminals, retail display windows, information desks.
+ Metal shell material, flat and ultra-thin shape
+ Front frame against dust and liquids
+ Commercial grade LCD, LED backlight
+ Resolution 3840X2160UHD@60Hz
+ Wide ratio and full viewing Angle
+ 10 point projection capacitive touchscreen
+ Cover plate anti riot and anti fingerprint
+ Supports vertical and horizontal screen
+ Video interface : HDMI+VGA
+ Back VESA wall mounting hole
+ Support OS: Windows/Android/Linux
+ 2-Years Warranty
Optional:
- No Touch
- AG Coating
- Video interface: Display Port
- Media play
- All-in-one (Android/Windows)
Specifications
Model
TDS5502D
Color
Black
Diagonal
55"
Aspect Ratio
16:9
Active Area
1208 X 679(mm)
Dimensions
1268 X 738 X 55(mm)
Resolution
1920 X 1080@60Hz
Viewing Angle
Horizontal: 89°/89°
Vertical: 89° /89°
Number of Colors
16.7M
Brightness (typical)
LCD Panel: 300 nits
PCAP: 275 nits
Response Time
8ms
Contrast Ratio
1200:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Speakers
TwoX2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
1kg steel ball falls from 1.2m without breaking
Weight
(Unpackaged)32KG
Shipping Dimensions
1330 X 840 X 130(mm)
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
30,000 hours demonstrated
Mounting Options
VESA:75X75(mm)
100X100(mm)
Base Adjustable Angle
0-90 degrees(Optional)
Power Supply
DC:12V3A
Warranty
2-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows/Linux\Android
What's in the Box
1*USB cable,1*VGA cable,1*DC cable
Accessories
Enhancements, expansions, and extras.
20F Stand
20A Stand
Backpack-A03 for Android Rk3399
Backpack-A05 for Windows10
