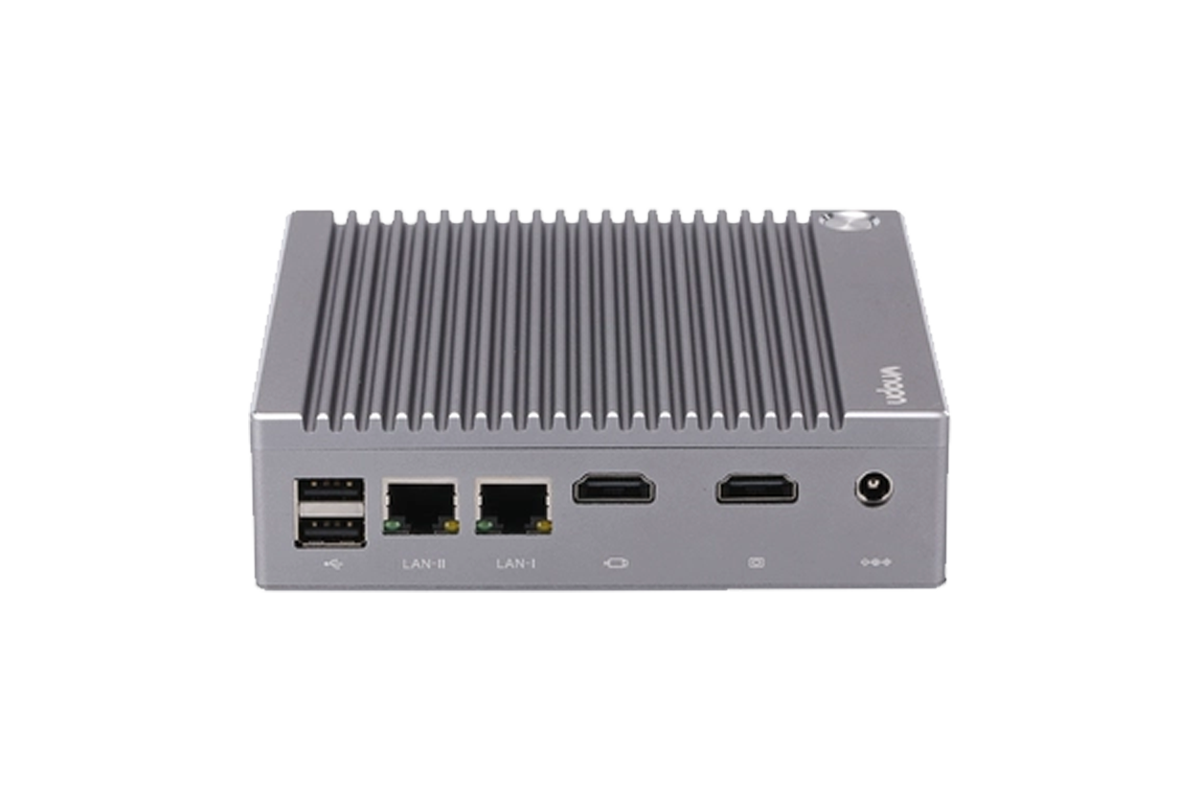

Model# Backpack-A03

Backpack For Windows

Backpack-A03 for Android Rk3399

TDSTOUCH New

Sizes:

Backpack-A05

Backpack-A07

- Aluminum alloy fully enclosed shell

- Dust-proof and good heat dissipation effect

- Fan-less low power industrial motherboard

- ARM RK3399 /6-core /64-bit processor

- Support dual-screen asynchronous display

- Resolution 4K HD video playback

- Dual Gigabit Ethernet ports

- Support dual-band WiFi(2.4GHz/5GHz)

- Wall-mounted on the back to save space

- Support OS：Android 7.1/9.0/Ubuntu18.04

- 2-year warranty

Specifications

Color

Silver

CPU

RK3399/2.0GHz, 6-core,64 bit processor

GPU

Mail-T860 GPU

Memory

DDR3-4G

Storage

eMMC-32G(Optional:32G/64G/128G)

Network

2*RJ45,Ethernet 10/100/1000Mbps
2.4GHz/5GHz dual-band WiFi+Bluetooth 4.2

Video Interface

1*HDMI Support 4K@ 60Hz output
1*HDMI Support 1920X1080@ 60Hz output

Audio Interface

1*headphone, 1*microphone input

RTC

External real-time clock powered battery, supports scheduled

power on and off

Infrared

1*Infrared receiver, supports infrared remote control function

LED

1*power status LED (red)

1*system LED (green, flashing by default)

Button

1*power button, 1*upgrade button

I/O interface

4*USB-2.0, 2*USB-3.0,2*RS232(RS485),1*TF card slot,1*DC

Power Adapter

AC input voltage: 100-240 VAC, Input frequency: 50-60 Hz

12V3A,DC diameter: 5.5X2.1mm

Dimensions

134 X 127 X 35(mm)

Video

Support H.265, H.264, H.263, VP9, WMV, AVS, MPEG and

other video formats 1080P/2160P multi-video decoding


Supports browsing of various image formats such as JPG, PNG

Application

Calculator, browser, calendar, settings, clock, video player

OS Support

Android 7.1/9.0/Ubuntu18.04

Accessories

Enhancements, expansions, and extras.

Not available now

Resources

Backpack-A03 Specification & Drawing
