17" B Projected Capacitive Touchscreen
- 10-point projected capacitive touchscreen
- G+G glass structure, high light transmittance
- 3mm explosion-proof tempered glass cover
- AF anti-fingerprint treatment, smooth touch
- FPC strip anti-static material
- EETI industrial grade touch control IC
- USB touch interface, driver-free
- Supports glove and stylus touch
- Support OS:Windows/Android/Linux
- 2-years Warranty
Optional:
- 1mm-5mm thickness glass
- Special glass shapes
- logo customization
- Different colors print
- Anti-glare coating

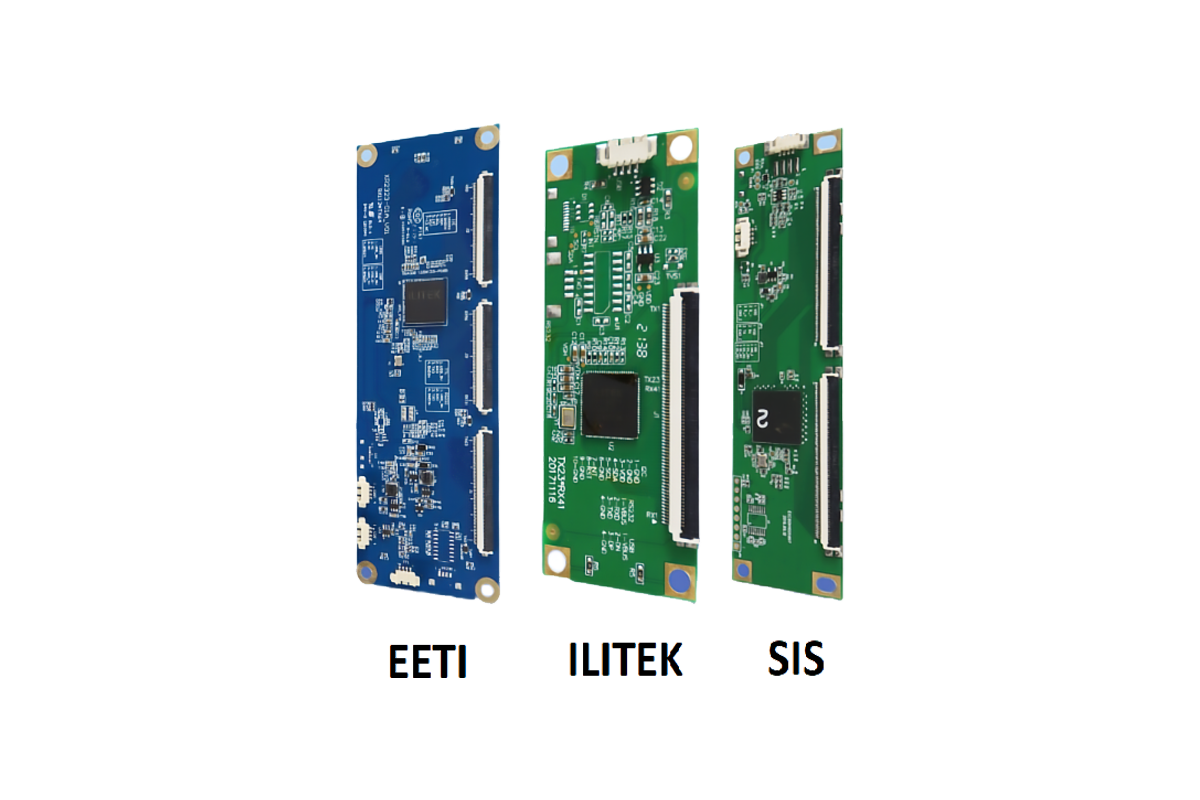

- Different touch IC solutions
- Stylus customization
- Touch interface:RS232
Specifications
Model
HC-17-B-0504V1
Silk printing color
Black
Structure
Glass+Glass
Aspect Ratio
5:4
Window VA
341.92X274.3(mm)
R angle
R3
Cover Lens
OD 377X309(mm)
Cover Glass Thickness
3mm
Sensor Thickness
0.7mm
Overall Thickness
3.95mm
Cover surface treatment
Anti-fingerprint
Surface Hardness
6H
Transparency
90%
Touch Controller
ILITEK_2510
Touch Solution
COB
Interface of CT
USB(Standard)
Number of Touches
10points
Input Methods
Finger
Gloved hand
Passive stylus
Positional Accuracy
±2mm
FPC outlet length
110mm
Report Rate
≥100Hz
Response time
<10ms
Operating Voltage
5V
Durability
Over 50 million touches in one location
Explosion-proof
200 grams of steel ball height 0.6meters vertical drop center point will not break
Temperature
Operating: -10°C-60°C; Storage: -20°C-70°C
Humidity
Operating: 20%-80%; Storage: 10%-90%
Warranty
2-year
Operating system
WinXP,Win7, Win8,Win10, Linux, Wince, Android, Mac
Accessories

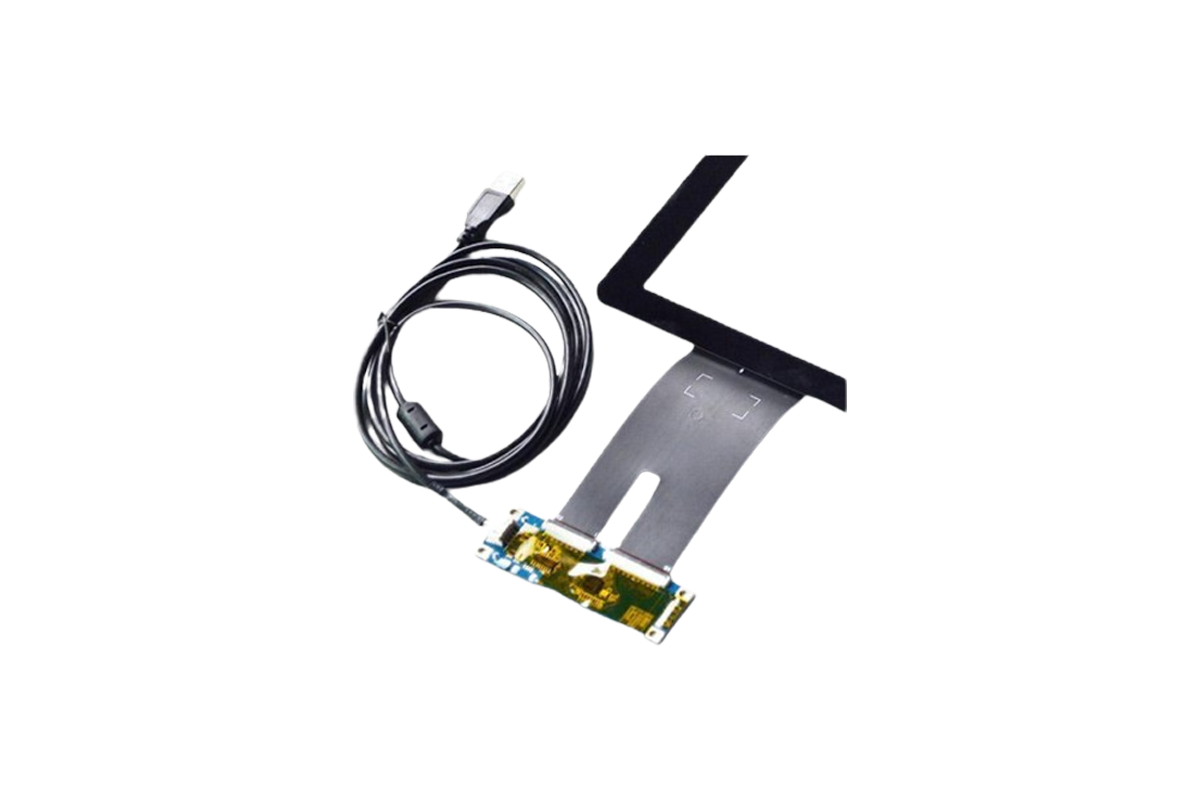

1*1.5m USB cable
Accessories
Enhancements, expansions, and extras.
Not available now
Resources
- 17 inch PCAP Touchscreen Specification
- View
