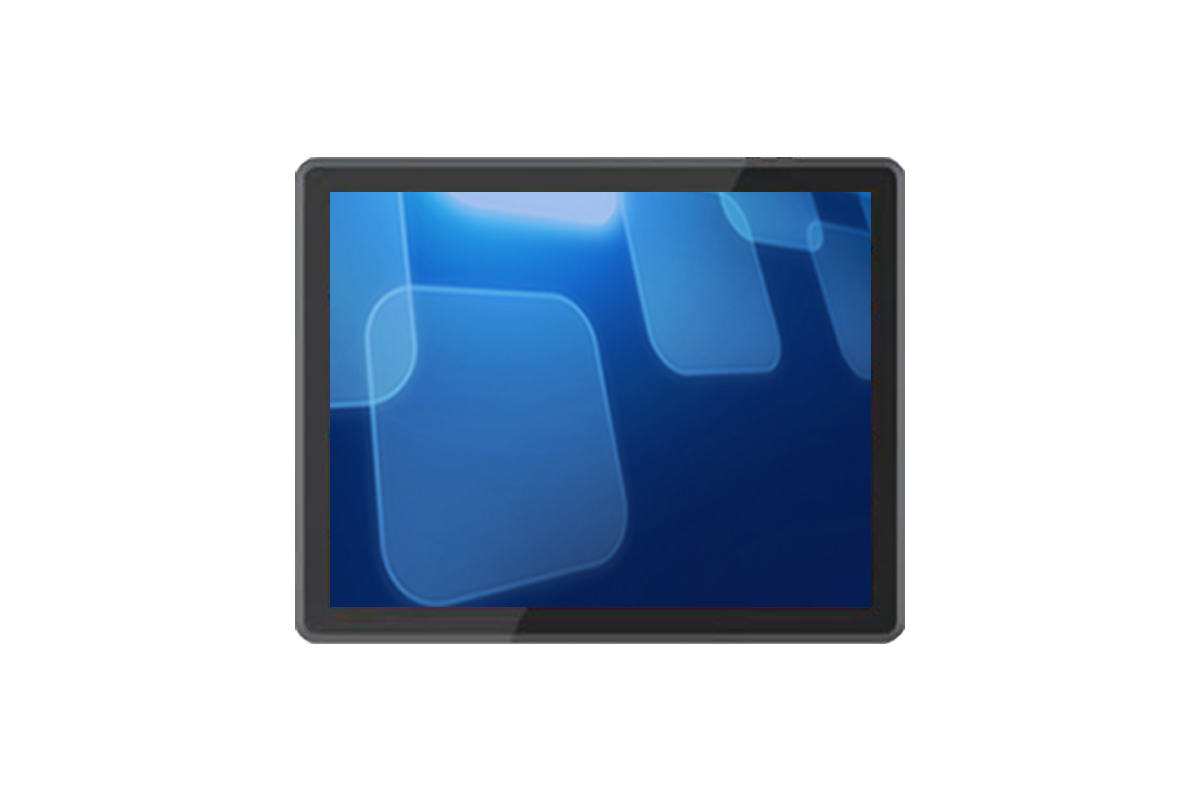

Industrial automation console, IOT self-service terminal, industrial dashboard
+ Zero bezel frame + Aluminum type material Shell
+ Front panel meets IP65 standard, dust/waterproof
+ Industrial grade LCD screen, LED backlight
+ Resolution 1024X768@60Hz
+ 10-point projection capacitive touchscreen
+ Cover plate waterproof and anti-riot treatment

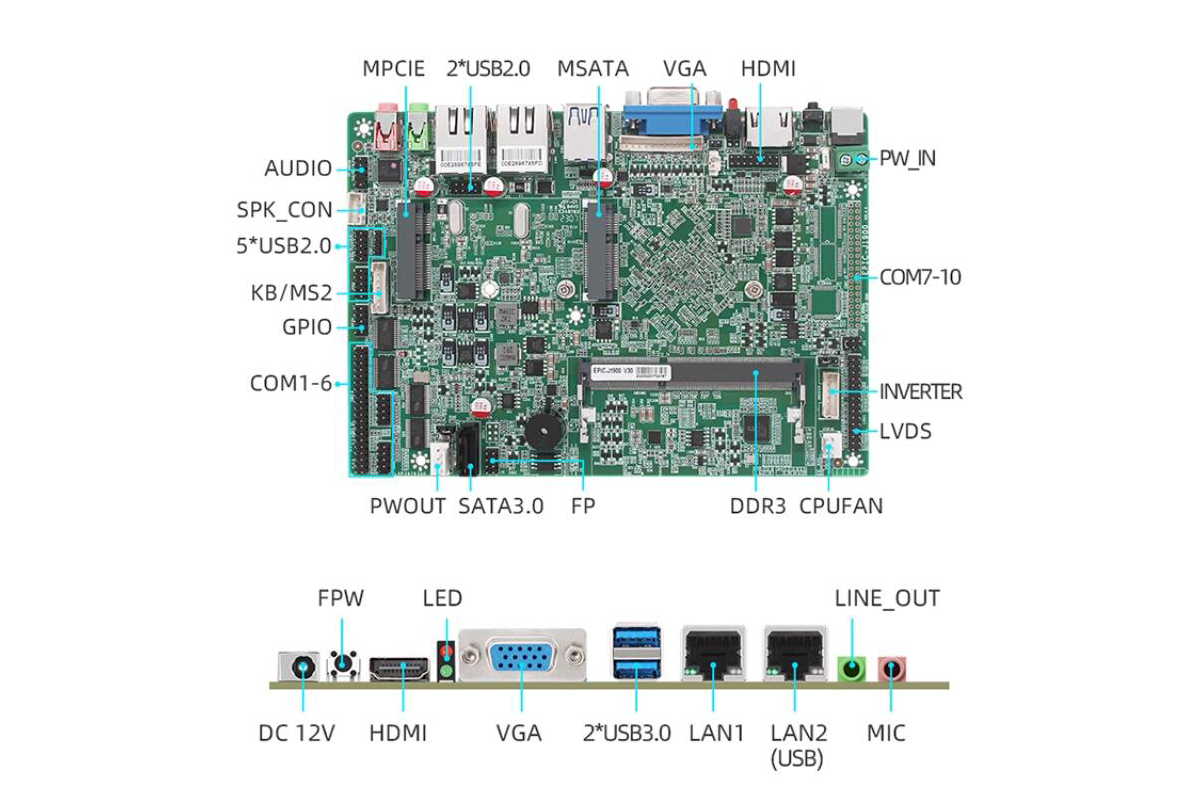

+ Fanless Low power consumption motherboard
+ Intel Celeron®J1900 high-performance processor
+ 2* Intel 211AT gigabit network
+ 9-27V wide voltage power supply
+ Support 7X24 hours operation
+ Support OS:windows10/Linux/Ubuntu
+ 3-years warranty
Optional：
- No Touch
- AG Coating
- I5 processor
- Touchscreen Monitor
Specifications
Model
TDS1530
Color
Silver
Diagonal
15"
Aspect Ratio
5:4
Active Area
304 x 228(mm)
Dimensions
350 X 296 X 59(mm)
Resolution
1024 X 768@60Hz
Viewing Angle
Horizontal: 80°/80°
Vertical: 80° /80°
Number of Colors
262K
Brightness (typical)
LCD Panel: 300 nits
PCAP: 275 nits
Response Time
8ms
Contrast Ratio
800:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
≥90%
Surface hardness
6H(Mohs)
Touch Interface
USB2.0
Processor
Intel Celeron® J1900/2.0GHz,
TDP10W(2M cache, up to 2.42GHz)
Chipset
Bay Trail
Graphics
Intel®HD Graphics
Storage
SSD 64GB
Memory(RAM)
DDR3L 4GB, maximum support 8G
BIOS
AMI UEFI BIOS
Network
2XLAN RJ45 (Gigabit)
WLAN
2.4GHz, Wi-Fi support802.11 a/b/g/n/ac deal
Bluetooth
4.0

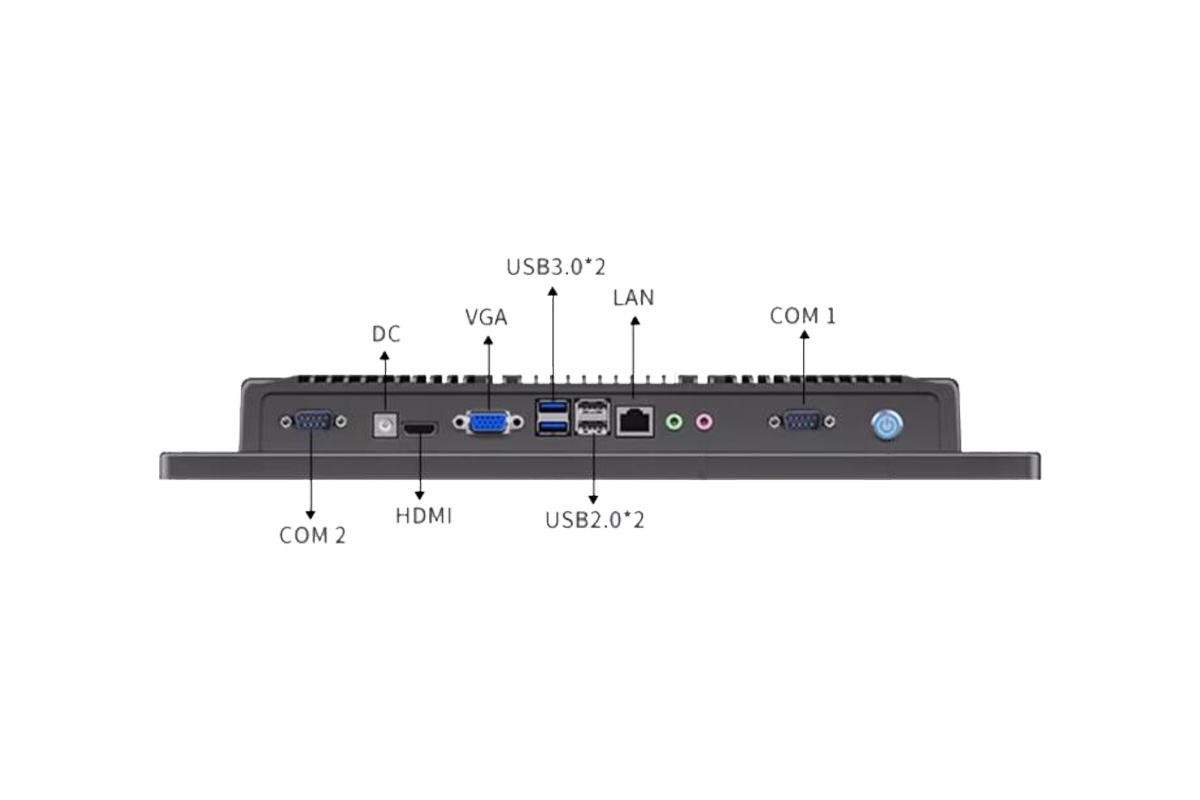

I/O Interface
2*USB2.0, 2*USB3.0, 2*RS232, 2*RJ-45，1*DC
1* audio circuit output, 1* audio microphone input，1*HDMI，1*VGA
Watch Dog
Hardware reset(256 levels, 0 to 255 seconds)
Speakers
TwoX2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
1kg steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 8KG
Operating Temperature
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
50,000 hours demonstrated
Mounting Options
VESA:75X75(mm)
100X100(mm)
Base Adjustable Angle
0-90 degrees(Optional)
Power Supply
DC:12V3A
Warranty
3-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows/Linux\Android
What's in the Box
1*USB cable,1*VGA cable,1*DC cable
Accessories
Enhancements, expansions, and extras.
20F Stand
20A Stand
Backpack-A05 for Windows10
