Digital signage, brand experience, electronic menus, conference terminals, retail display windows, information desks
Features
+ Metal shell, flat surface appearance
+ Front frame is waterproof and dustproof
+ Commercial grade LCD, LED backlight
+ Resolution 1920X1080FHD@60Hz
+ Supports vertical and horizontal display
+ Video interface: HDMI+VGA

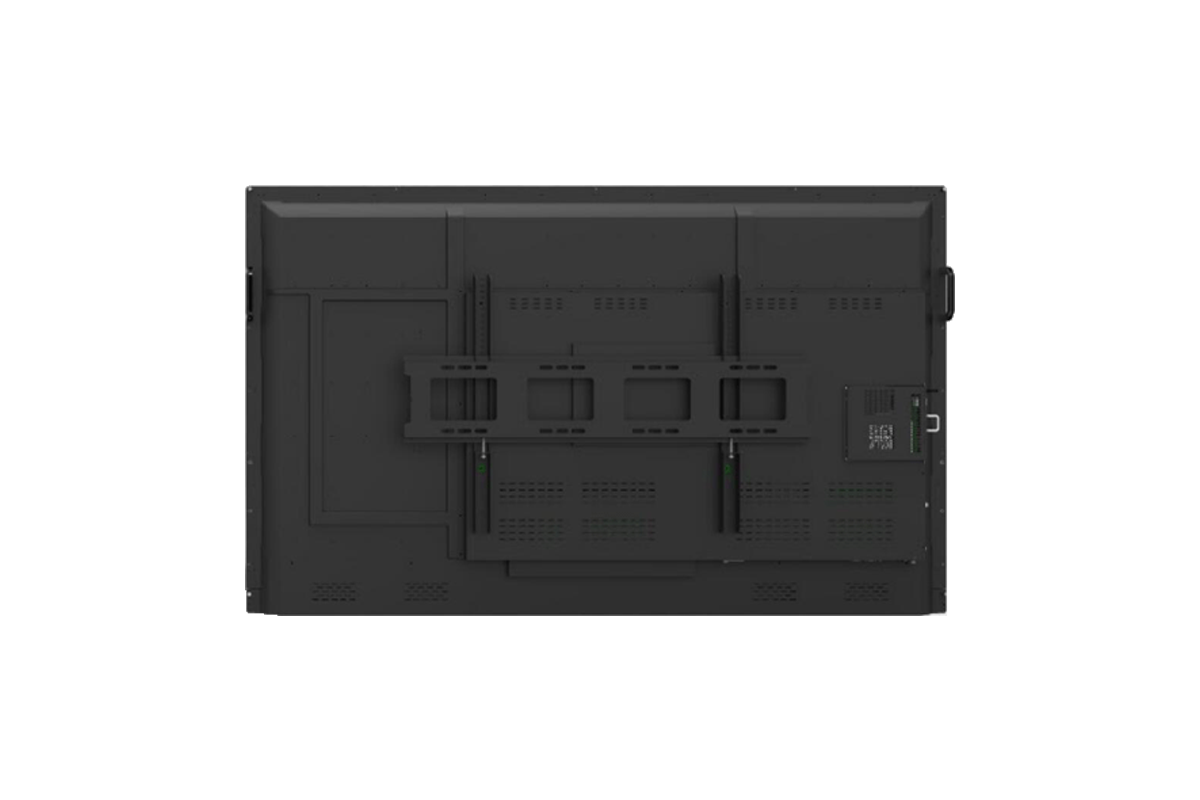

+ BackVESA wall mounting hole
+ Support OS: Windows10/Linux
+ 2-Years Warranty
Motherboard Solution：
+ Low power industrial motherboard
+ Intel ® Core I5-6200U/2.3GHzprocessor
+ Optional: Intel® Core I5-8255Uprocessor
+ Intel® HD Graphics 520/620
+ 1*RJ45 gigabit network port
+ Supports dual-screen displayand4K
+ Supports power-on and restart
+ Support hardware watchdog
+ Supports 7X24 hours ofuse
+ Built-in OPS host architecture
Specifications
Model
3230D
Color
Black/Silver
Diagonal
32 inch
Aspect Ratio
16:9
Active Area
697.4×391.85 (mm)
Dimensions
756×451×54.5 (mm)
Resolution
1920×1080@60Hz
Number of Colors
16.7M
Viewing Angle
Horizontal: 89°/89°, Vertical: 89°/89°
Contrast Ratio
1000:1
Brightness
LCD panel: 300nits, PCAP Touch:275nits
Response Time
8ms
Touch Technology
Projective capacitive touch screen - 10 points
Surface Hardness
7H (Mohs)
Touch Interface
USB 2.0
Processor Options
Intel Core® I5-6200U, 2.3GHz, Dual-core
or
Intel Core® I5-8255U, 1.6GHz, Quad-core
Graphics
Intel® HD Graphics 520/620
Memory
DDR4 up to 16GB (single slot) or 64GB (dual slots)
Storage
SSD 128G
Network
1× Gigabit NIC (RTL8111H)
Wireless
802.11a/b/g/n, 2.4GHz & 5GHz dual-band
Speaker
2×2W (built-in)
I/O Interface
1×VGA, 1×HDMI, 2×USB3.0, 2×USB2.0, 1×RJ45, 1×Line-out
Watchdog
Hardware reset (256 levels, 0-255 seconds)
Input Voltage
AC:100-240VAC, 50/60Hz
Scalability
Front frame sealed with touch screen
Drop Test
450G steel ball falls from 1.2 meters without breaking
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 70%; Storage: 10% to 80%
MTBF
50,000 hours
Shipping Dimensions
820×550×130 (mm)
VESA Mounting
200×400mm
Power Supply
Built-in AC power
Warranty
2-Years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows10/Linux (OS not included)
Accessories
Enhancements, expansions, and extras.
20D
20R
Resources
- 3230D Specification & Drawing
