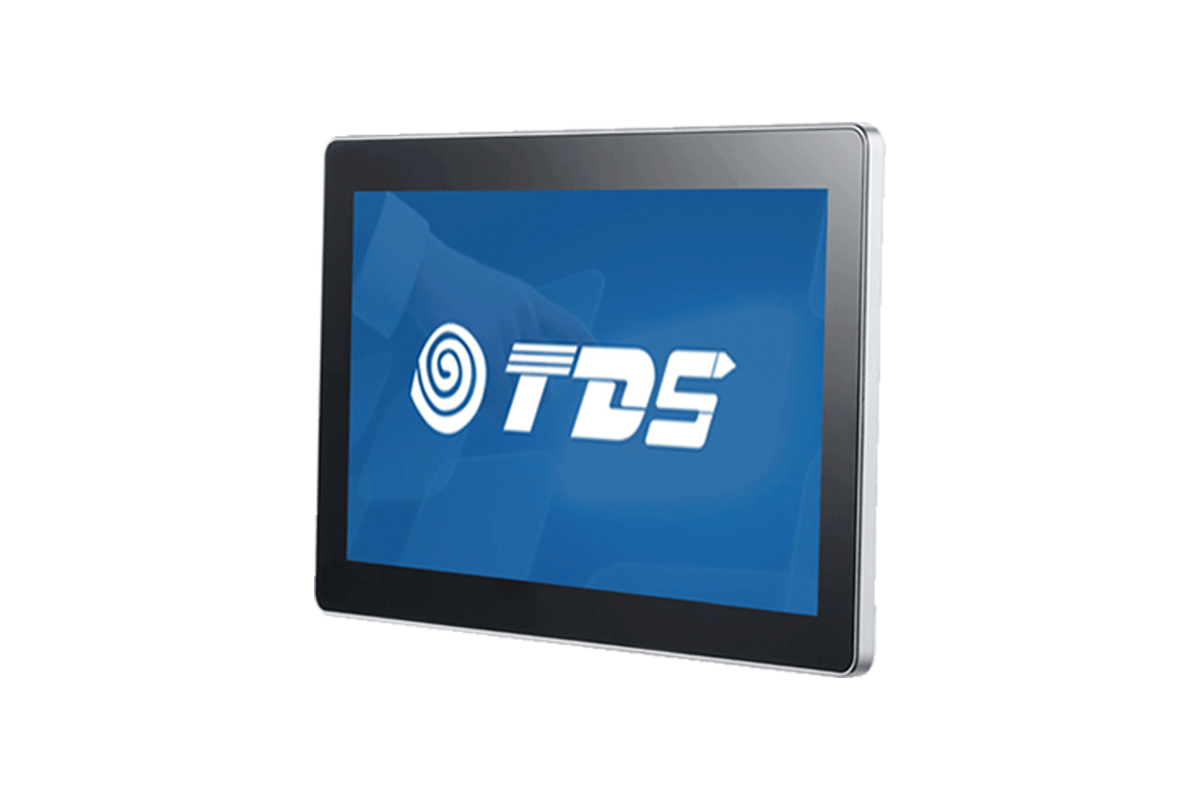

1002D 10.1" Touchscreen Monitor
Digital signage, brand experience, electronic menus, conference terminals, retail display windows, information desks.
+ Flat appearance design
+ Metal shell, ultra-thin shape
+ Commercial grade LCD, LED backlight
+ Resolution 1280X800@60Hz
+ Widescreen full viewing Angle
+ 10 point projective capacitive touchscreen
+ Cover plate anti riot and anti fingerprint
+ Support vertical and horizontal screen
+ Video interface: HDMI+VGA

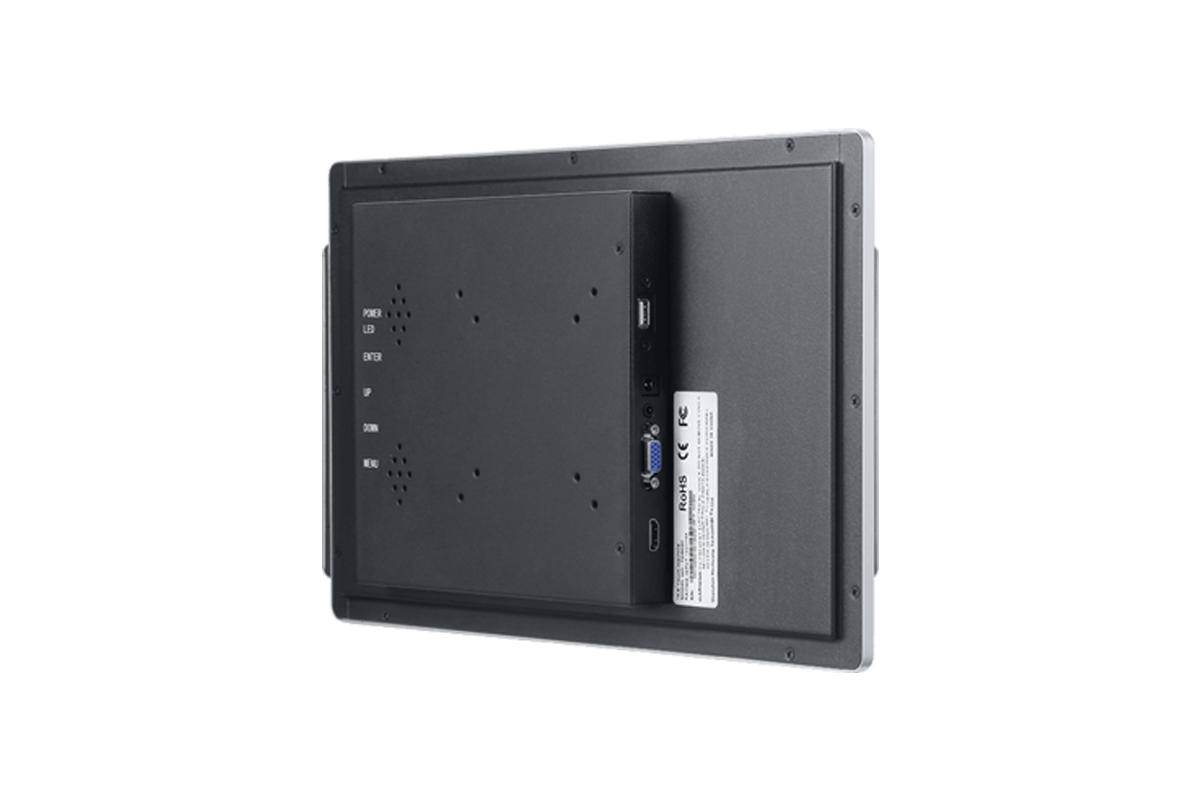

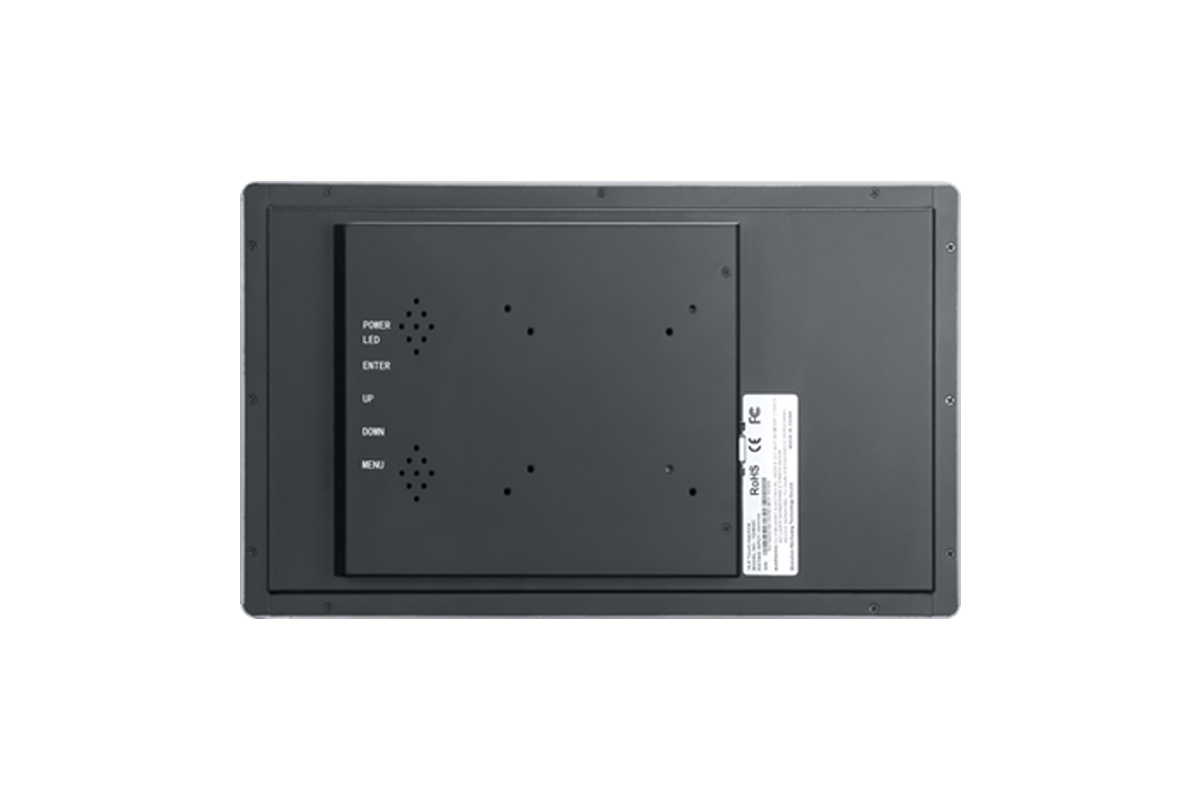

+ Back VESA wall mounting hole
+ Support OS:Windows/Android/Linux
+ 2-years warranty
Optional:
- No Touch
- AG Coating
- Media play
- Video interface: Display Port
- All-in-one (Windows/Android)
Specifications
Model
TDS1002D
Color
Black
Diagonal
10.1"
Aspect Ratio
16:10
Active Area
217 X 136(mm)
Dimensions
254 X 173 X 30(mm)
Resolution
1280 X 800@60Hz
Viewing Angle
Horizontal: 85°/85°
Vertical: 85° /85°
Number of Colors
16.7M
Brightness (typical)
LCD Panel: 300 nits
PCAP: 275 nits
Response Time
25ms
Contrast Ratio
800:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
≥90%
Surface hardness
6H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Speakers
TwoX2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
1kg steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 1.5KG
Shipping Dimensions
350 X 200 X 140(mm)
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
30,000 hours demonstrated
Mounting Options
VESA:75X75(mm)
100X100(mm)
Base Adjustable Angle
0-90 degrees(Optional)
Power Supply
DC:12V3A
Warranty
2-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows/Linux\Android
What's in the Box
1*USB cable,1*VGA cable,1*DC cable
