Hygiene and Infection Control, Durability and Reliability, Accuracy and Precision, Compliance with Regulatory Standards, Integration with Healthcare Systems.

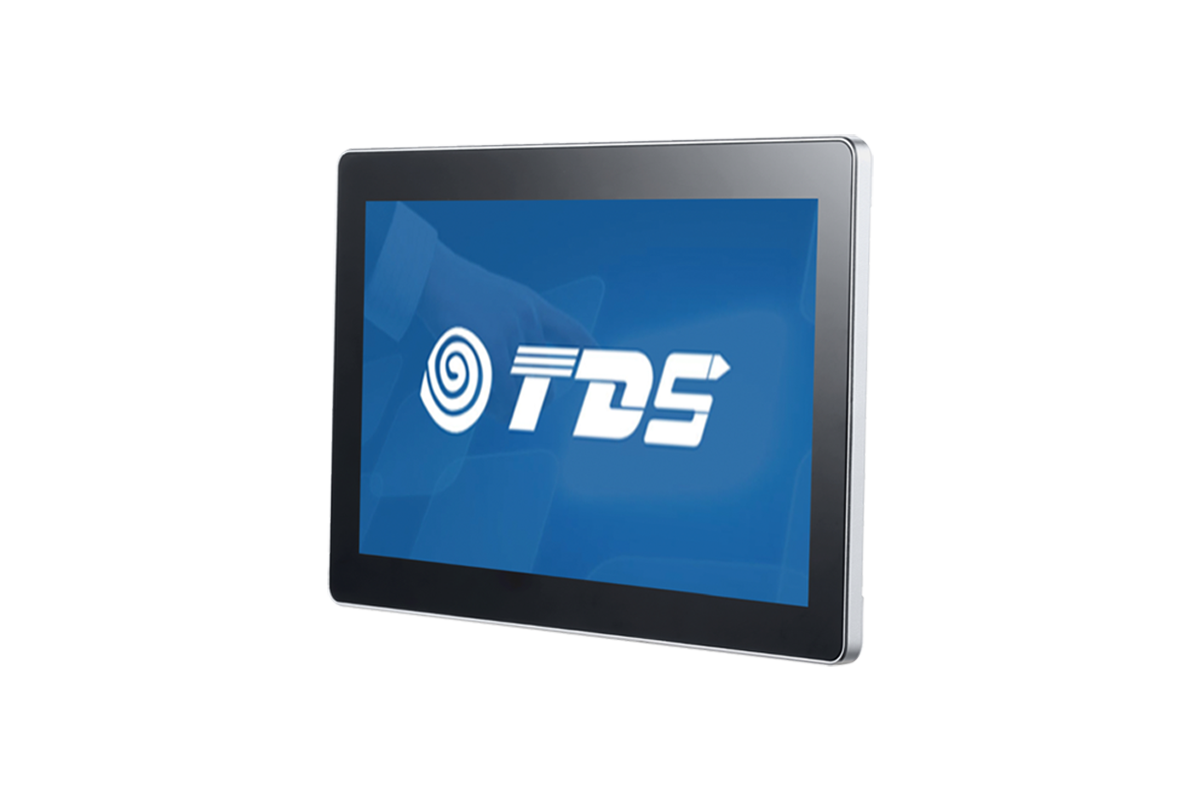

+ Flat and ultra-thin appearance
+ ABS + PC plastic material
+ Front frame against dust and liquids
+ Commercial grade LCD, LED backlight
+ Resolution 1920X1080FHD@60Hz
+ Wide viewing angle, High transmittance
+ 10 point projection capacitive touchscreen
+ Cover plate anti riot and anti fingerprint
+ Industrial grade drive board, anti-interference
+ Video interface: VGA+ HDMI+DP

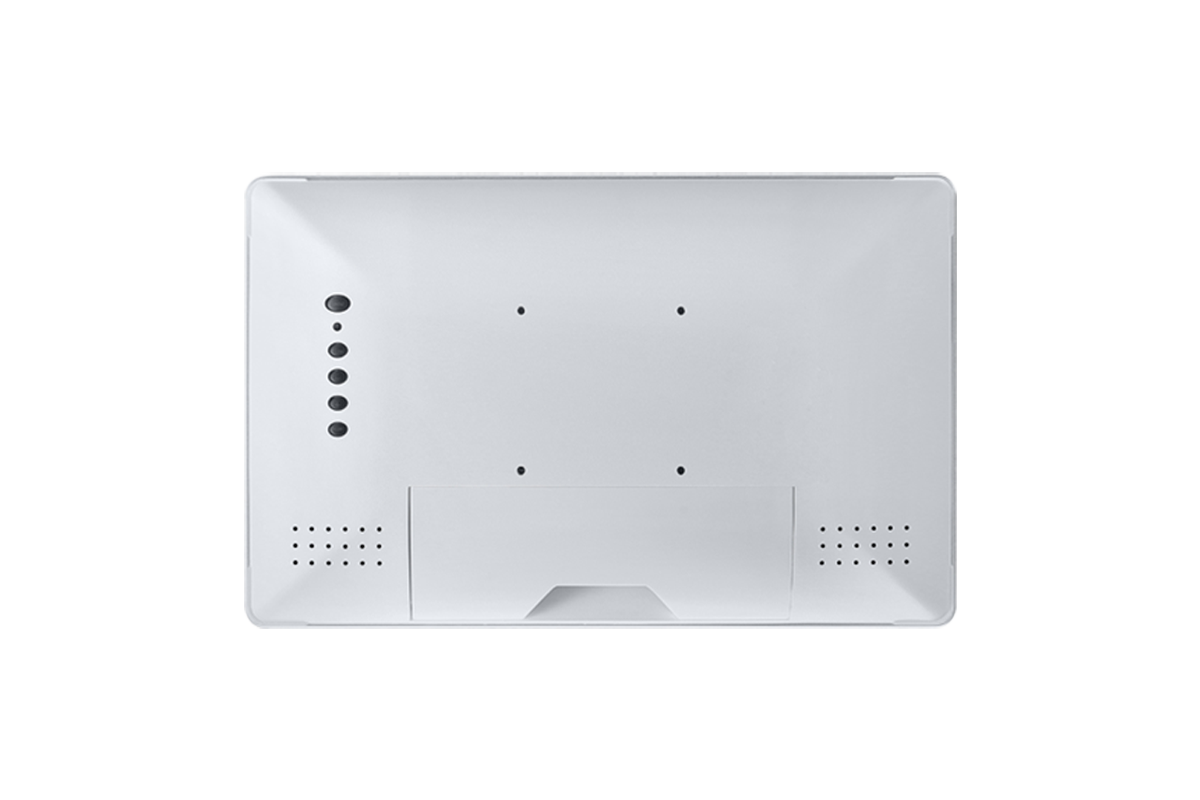

+ Back VESA mounting option
+ Support OS: Windows/Android/Linux
+ 2-Years warranty
Optional:
- No Touch
- Privacy filter
- Touch interface: RS232
- ALL-IN-ONE(Android)
Specifications
Model
TDS1302P
Color
Black
Diagonal
13.3"
Aspect Ratio
16:9
Active Area
294 X 165(mm)
Dimensions
338 X 216 X 38(mm)
Resolution
1920 X 1080@60Hz
Viewing Angle
Horizontal: 85°/85°, Vertical: 85° /85°
Number of Colors
262K
Brightness (typical)
LCD Panel: 300 nits, PCAP: 275 nits
Response Time
30ms
Contrast Ratio
800:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Speakers
TwoX2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
1kg steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 3KG
Shipping Dimensions
520 x 340 x 135(mm)
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 70%; Storage: 10% to 80%
MTBF
30,000 hours demonstrated
Mounting Options
VESA:75X75(mm),100X100(mm)
Base Adjustable Angle
0-90 degrees(Optional)
Power Supply
DC:12V3A
Warranty
3-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows/Linux\Android
What's in the Box
1*USB cable,1*VGA cable,1*DC cable
Accessories
Enhancements, expansions, and extras.
20F Stand
20A Stand
Backpack-A03 for Android Rk3399
Backpack-A05 for Windows10
Resources
- 1302P Specification Drawing
