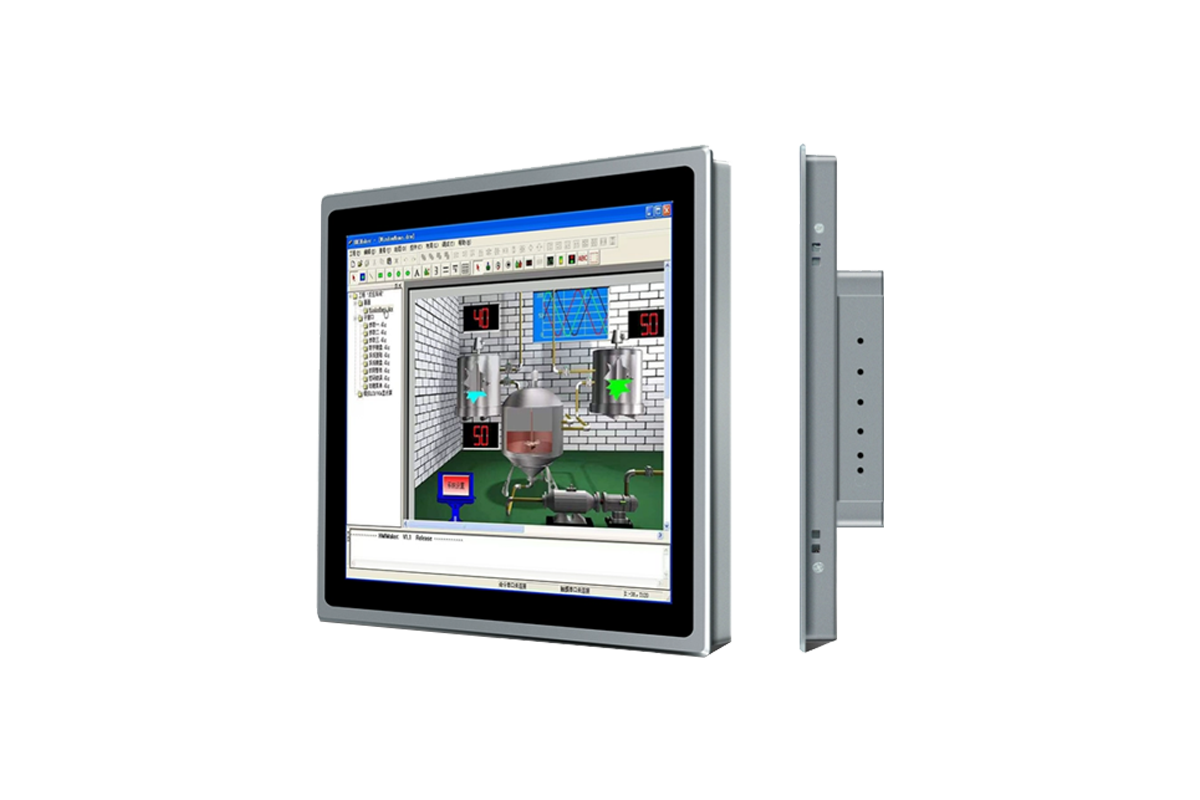

1237B 12.1" Embedded Standard Aspect Touchscreen Monitor
Touch displays for machine tool panels, control cabinets, production line stations, EV chargers, and fuel dispensers.
Features
+ Aluminum flat all aluminum front frame
+ Front assembly method, easy to integrate
+ Industrial grade LCD, LED backlight
+ Native resolution 1024X768@60Hz
+ 10-point projected capacitive touchscreen
+ 3MM tempered glass, surface AG coating
+ Ultra-Fast response speed and high precision
+ Anti-riot, anti-vibration, anti-static

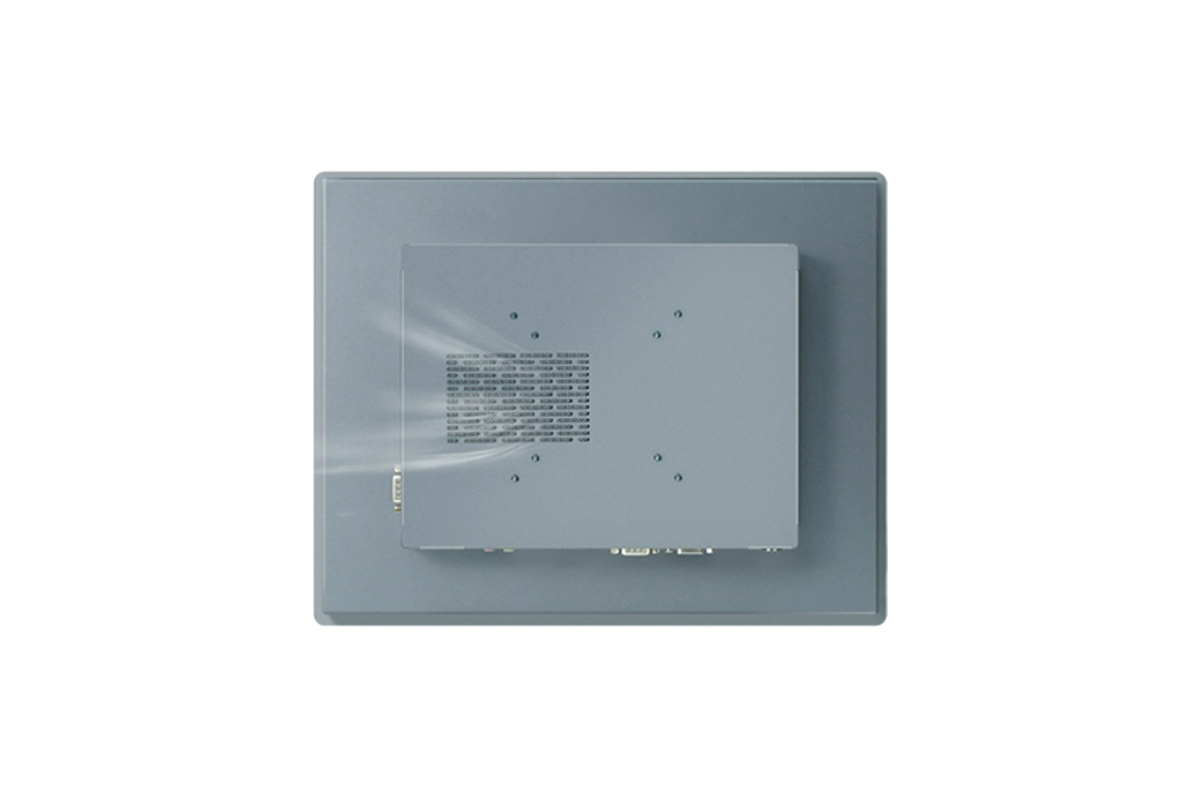

+ There are fixing holes on the back and sides

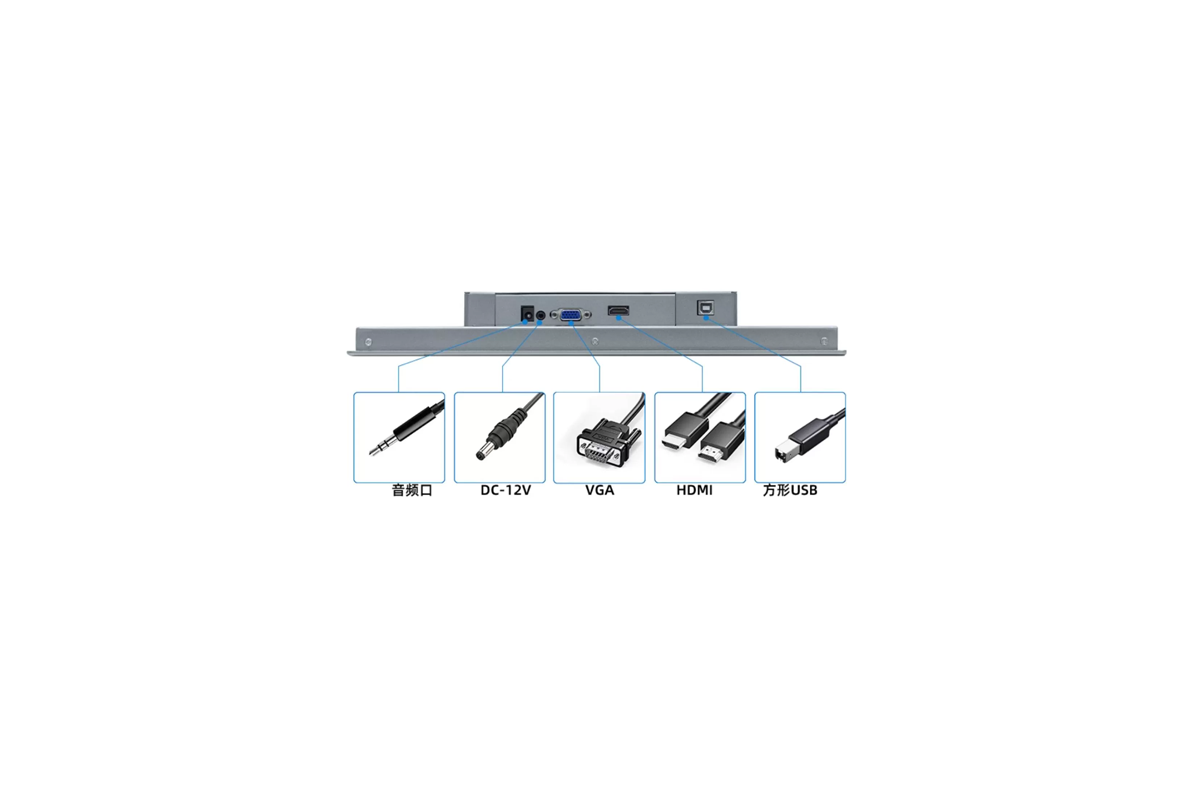

+ Video interface: HDMI+VGA
+ Support OS: Windows/Android/Linux
+ 2-Year warranty
Optional:
- Five-wire resistive touchscreen(5W)
- ALL-IN-ONE(X86 motherboard)
Specifications
Model
TDS1237B
Color
Silver
Diagonal
12.1"
Aspect Ratio
4:3
Active Area
247 x 186(mm)
Dimensions
297 X 248 X 56(mm)
Resolution
1024 X 768@60Hz
Viewing Angle
Horizontal: 70°/70°
Vertical: 70° /70°
Number of Colors
262K
Brightness (typical)
LCD Panel: 300 nits
PCAP: 265 nits
Response Time
5ms
Contrast Ratio
1000:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (Thickness≤2mm)
Transmittance
≤90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
200g steel ball falls from 0.8m without breaking
Weight
(Unpackaged) 5KG
Temperature
Operating: 0°C to 50°C
Storage: -10℃ to 70°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
50,000 hours demonstrated
Mounting Options
VESA:75X75(mm)
100X100(mm)
Power Supply
DC:12V3A
Warranty
2-year
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*USB cable,1*HDMI cable,1*DC cable
Accessories
Enhancements, expansions, and extras.
Resources
- 1237B Specification & Drawing
