1239E 12.1" Openframe Touchscreen Monitor(4:3)
From retail self-service and casino kiosks to amusement rides and industrial automation, our products deliver reliable performance across every application.
Features

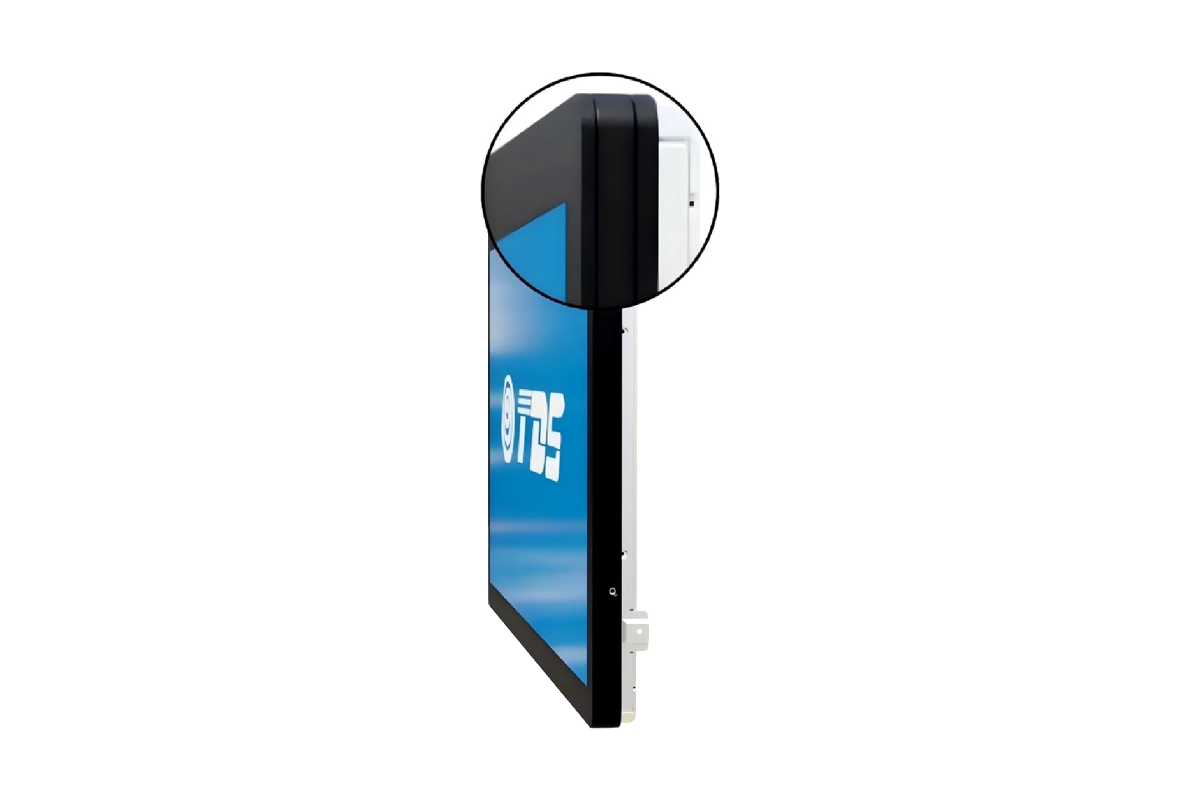

+ Metal shell, open frame structure

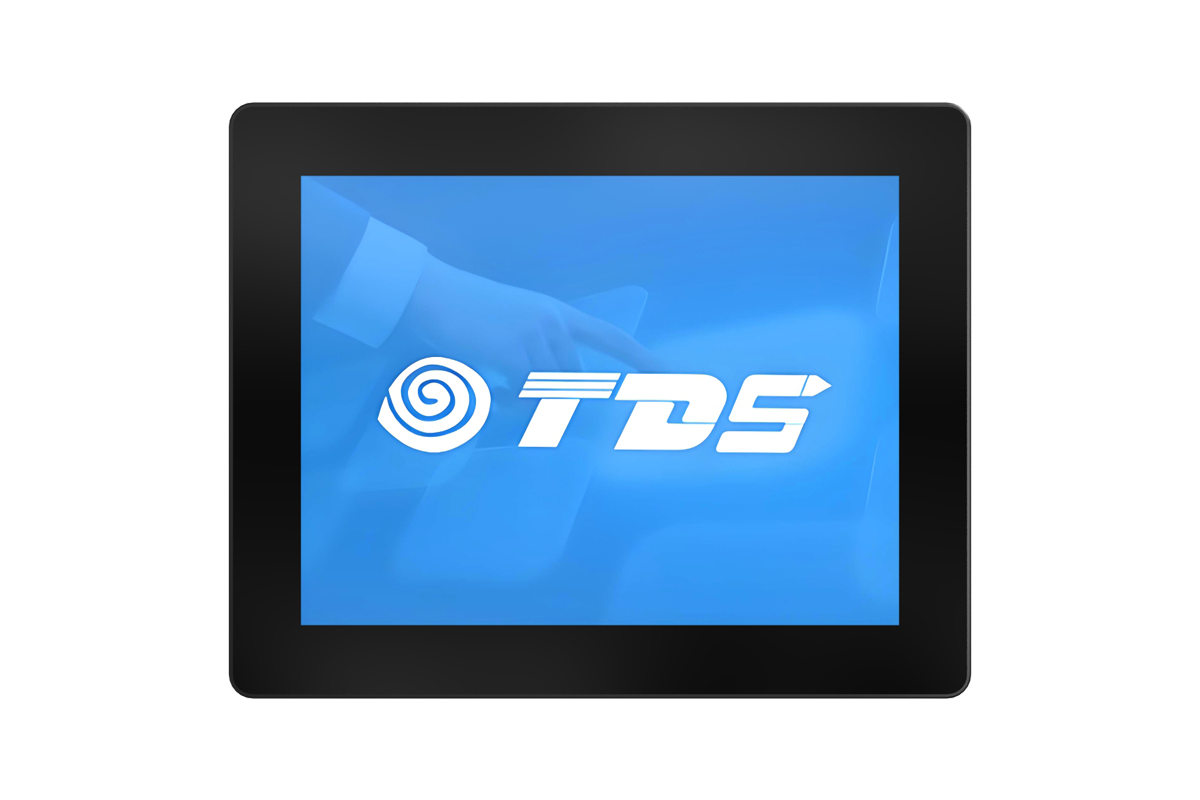

+ Flat and zero bezel appearance
+ Industrial grade LCD, LED backlight
+ Resolution 1024X768@60Hz
+ Standard aspect ratio, high brightness and contrast
+ 10 point projection capacitive touch screen
+ Cover plate anti riot and anti fingerprint
+ Supports palm rejection and glove touch

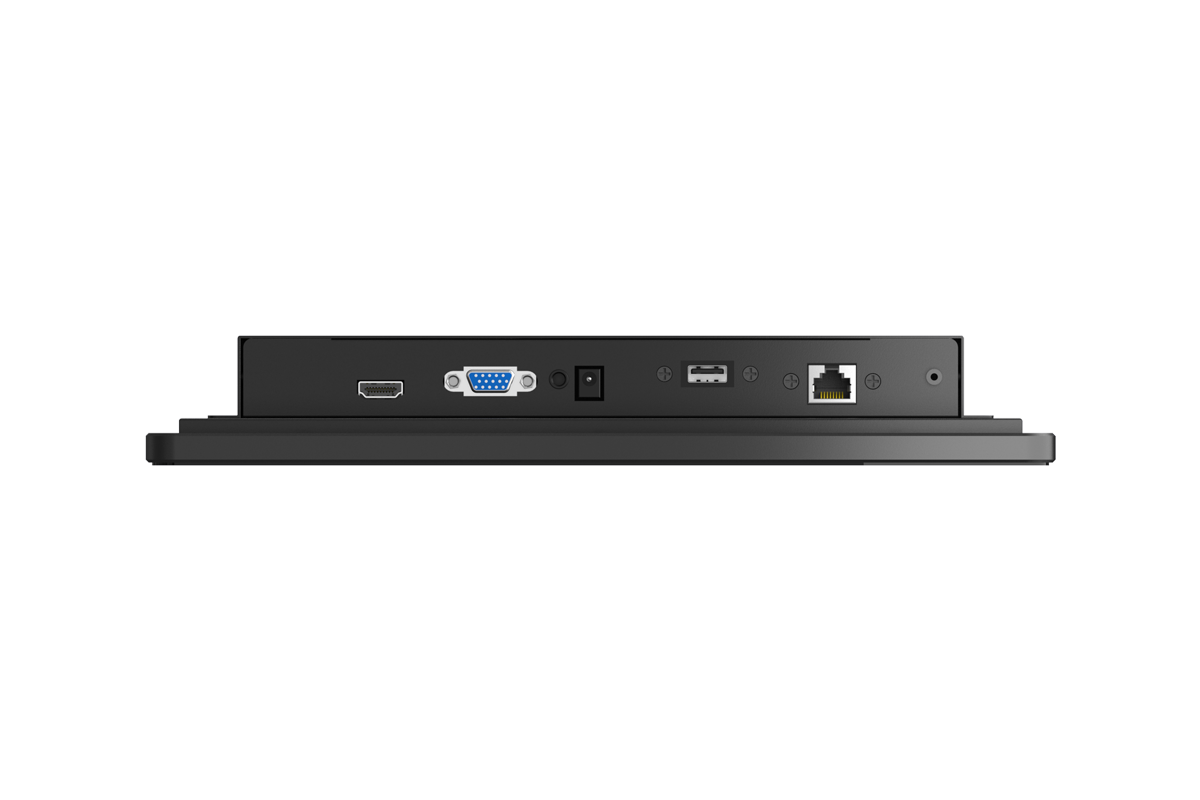

+ Video interface: HDMI+VGA

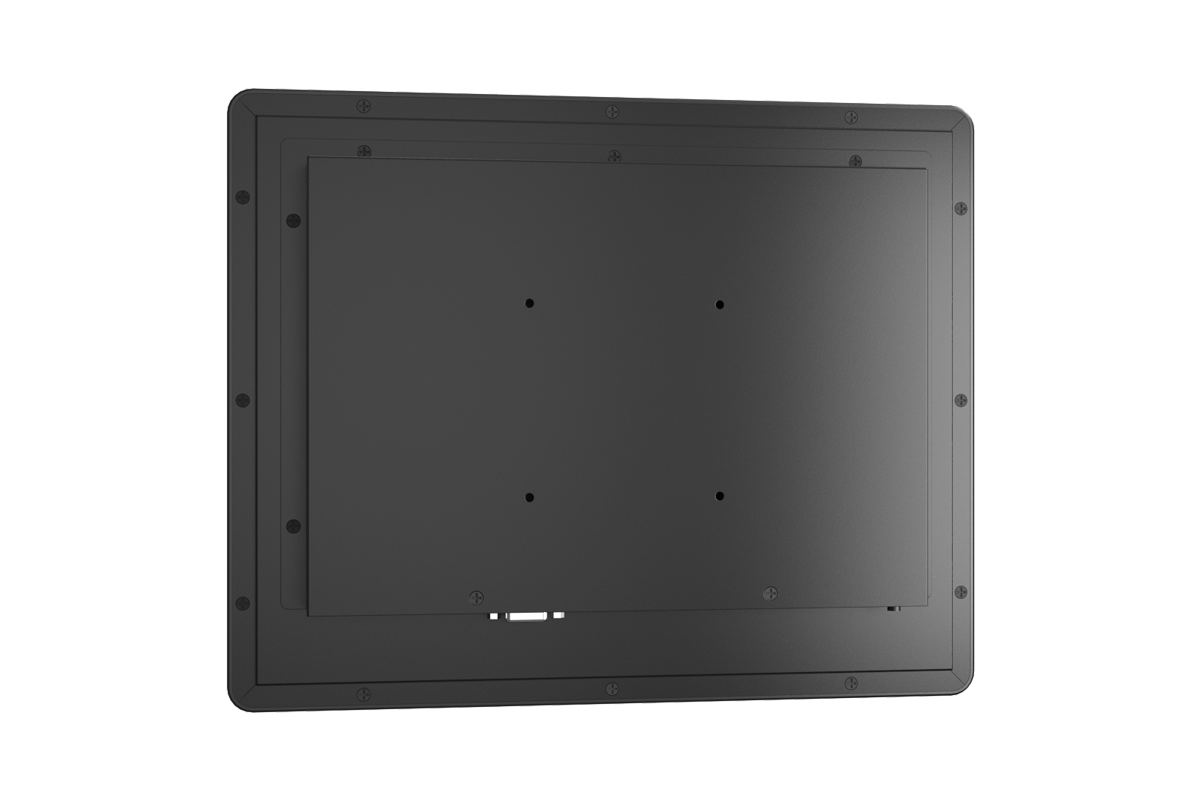

+ Multiple assembly holes on the side and back
+ Support OS: Windows, Android, Linux
Optional：
- No Touch
- Privacy Filter
- AG Coating
- Touch interface: RS232
- Video interface: Display Port
Specifications
Model
1239E
Color
Black
Diagonal
12.1inch
Aspect Ratio
4:3
Active Area
246×184.5(mm)
Dimensions
Front cutout dimensions: 302.5X242(mm)
Product dimensions: 306.9X264.2X44(mm)
Resolution
1024×768@60Hz
Viewing Angle
H:85°/85°, V:85°/85°
Number of Colors
16.7M
Brightness (typical)
LCD:450nits, PCAP:415nits
Response Time
30ms
Contrast Ratio
1000:1
Touch Technology
PCAP – 10 Touch
Touch Method
Finger, Capacitance pen(Standard)
Latex gloves touch (Thickness≤2mm)
Transmittance
≥90%
Surface Hardness
7H (Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Input Voltage
AC:100-240V, 50/60Hz
Sealability
Touchscreen sealed to bezel
Drop Test
500 grams of steel ball height 1.2meters vertical drop center point will not break
Weight (net)
2.8KG
Shipping Dims
355×340×105(mm)
Temperature
Operating:-10°C to 40°C;Storage:-20°C to 70°C
Humidity
Operating: 20% to 70%；Storage: 10% to 80%
Mounting
VESA:75×75, Side:100×100
MTBF
50,000 hours
Power Supply
DC:12V1.5A
Warranty
3-year
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
In the Box
1×USB, 1×HDMI, 1×DC
Accessories
Enhancements, expansions, and extras.
Resources
- 1239E Specification & Drawing
