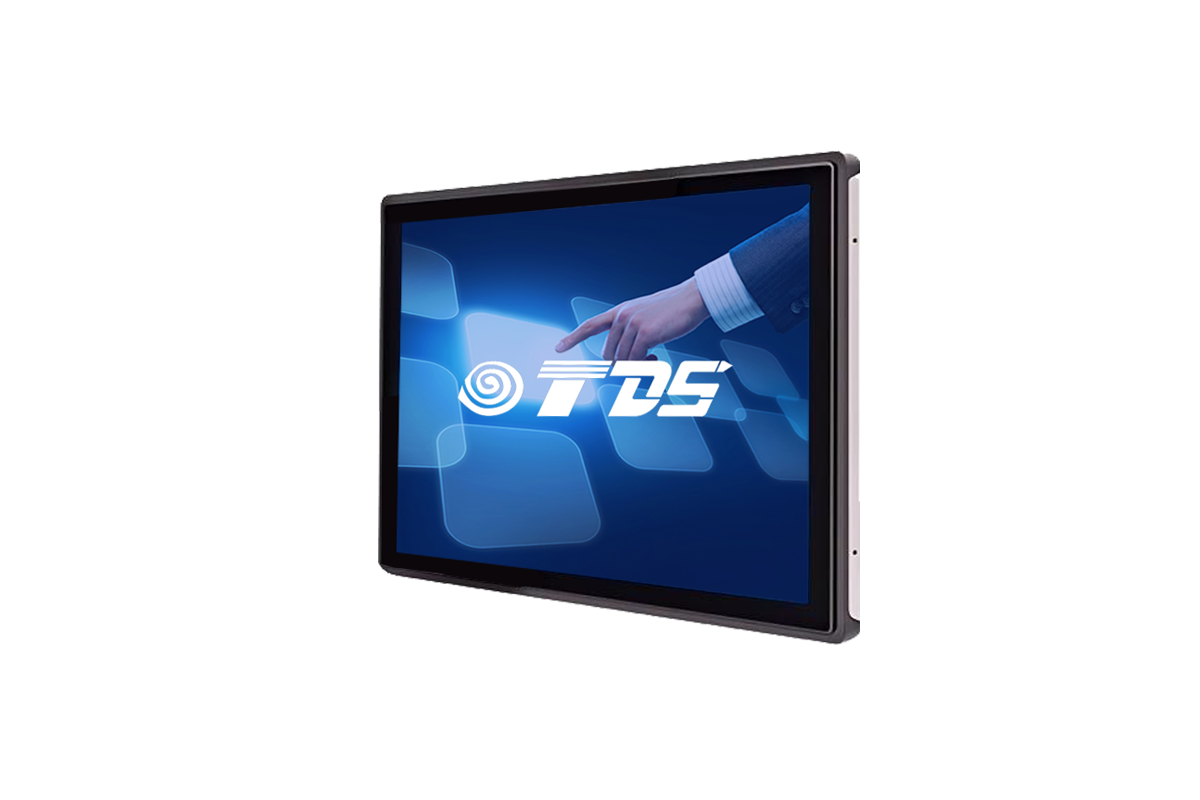

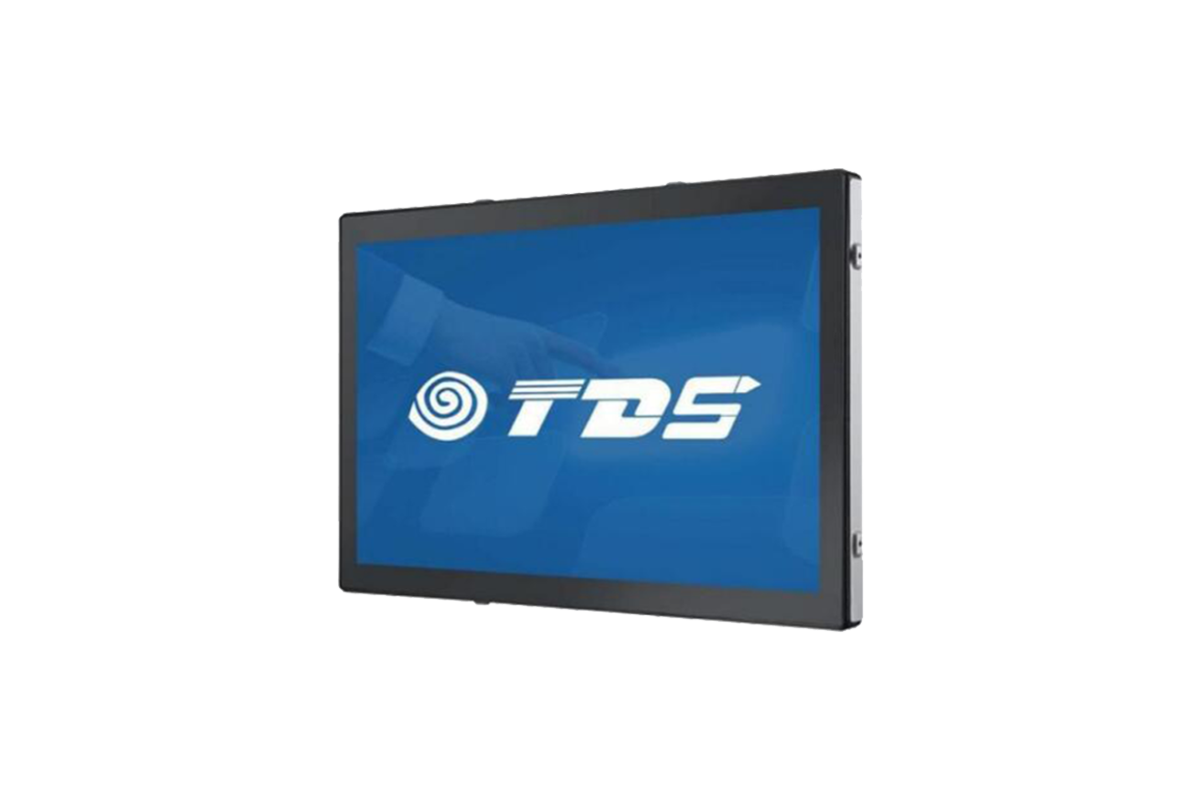

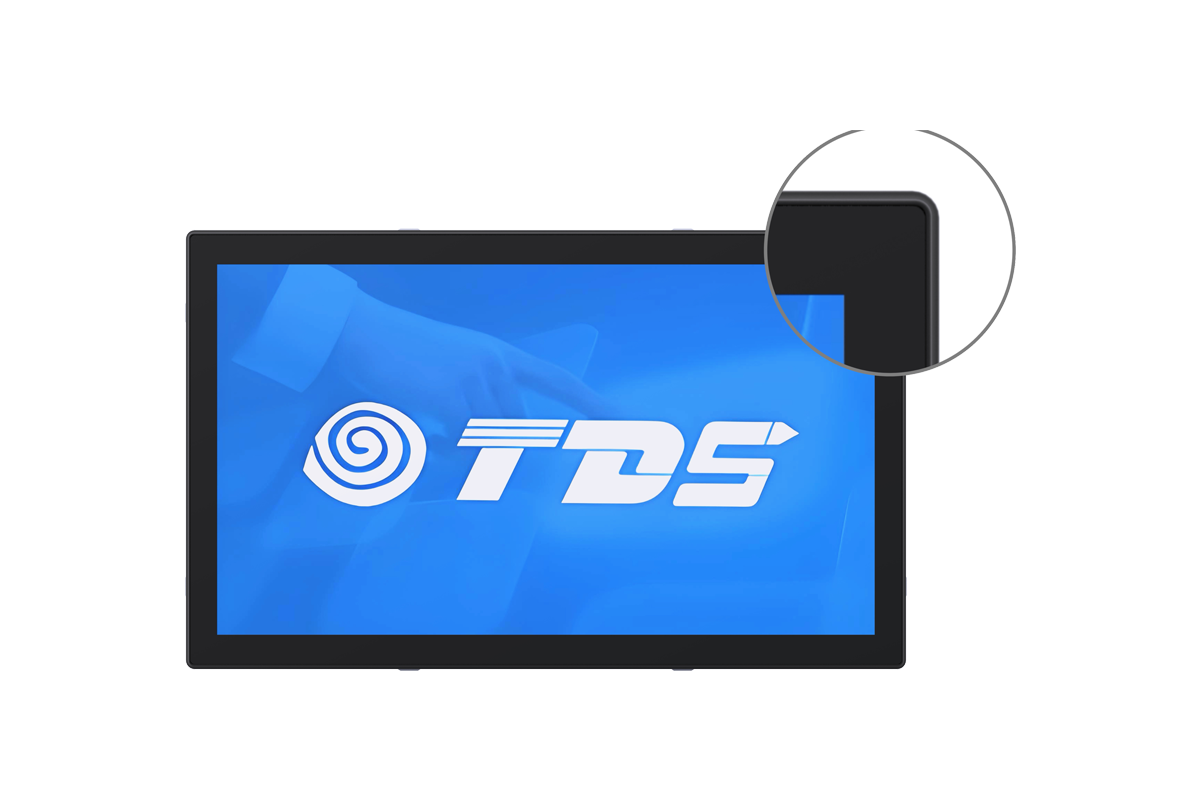

2138C 21.5" Openframe Touchscreen Monitor(16:9)
Self-service terminals, industrial automation, financial self-service equipment, self-service book equipment.
Features
+ Metal shell, flat, open frame structure

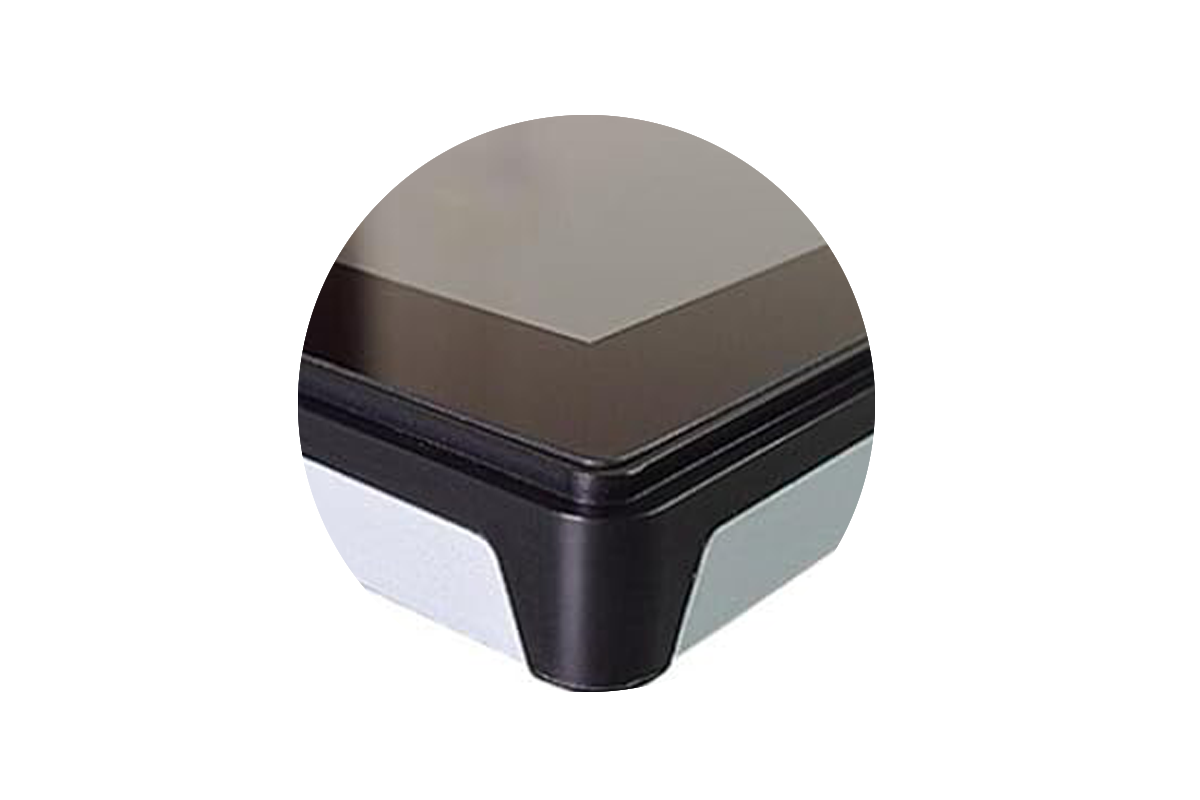

+ The step frame is easy to assemble
+ Commercial grade LCD, LED backlight
+ Resolution1920X1080FHD@60Hz
+ Wide Viewing Angle, High Brightness
+ 10-point projection capacitive touchscreen
+ 3mm Tempered Glass, Anti-Fingerprint Coating
+ Supports Palm Rejection & Glove Touch
+ Video interface: HDMI+VGA
+ Multiple assembly holes on the side and back
+ Support OS: Windows/Android/Linux
Optional:
- No Touch
- Privacy Filter
- AG Coating
- Video interface: Display Port
Specifications
Model
TDS2138C
Color
Black or Silver
Diagonal
21.5"
Aspect Ratio
16:9
Active Area
476 X 268(mm)
Dimensions
528X323.3X52.8(mm)
Cabinet Opening: 515.4X310.7(mm)
Resolution
1920 X 1080 FHD@60Hz
Viewing Angle
Horizontal: 89°/89°
Vertical: 89°/89°
Number of Colors
16.7M
Brightness (typical)
LCD Panel: 300 nits
PCAP: 275 nits
Response Time
14ms
Contrast Ratio
1000:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Gloves touch (Thickness≤2mm)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
450g steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 5.8KG
Shipping Dimensions
570 X 390 X 175(mm)
Temperature
Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
30,000 hours demonstrated

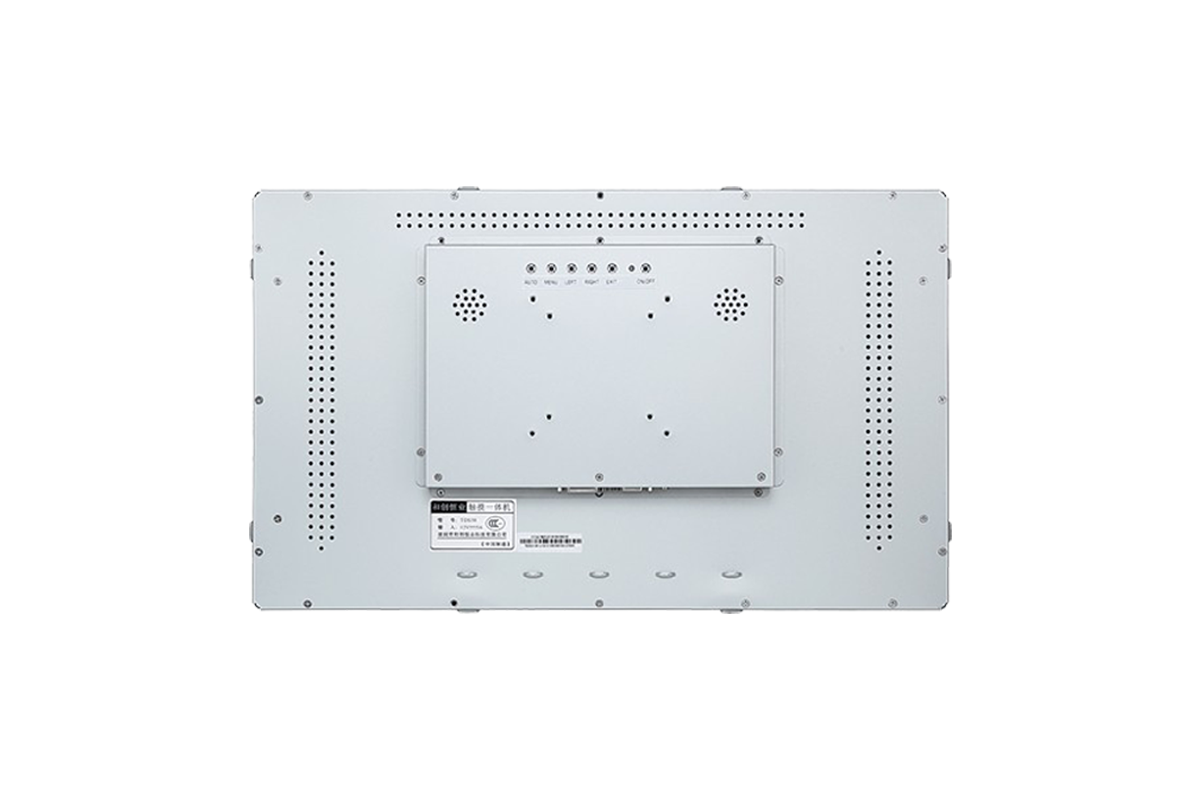

Mounting Options
Back VESA two groups of holes：75mm&100mm
Four sides has a set of fixing holes: 200mm
Power Supply
DC:12V3A
Warranty
3-year
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*USB cable, 1*HDMI cable, 1*DC cable(Standard) L" (Side Mount) Brackets and w/Screws(Options)
