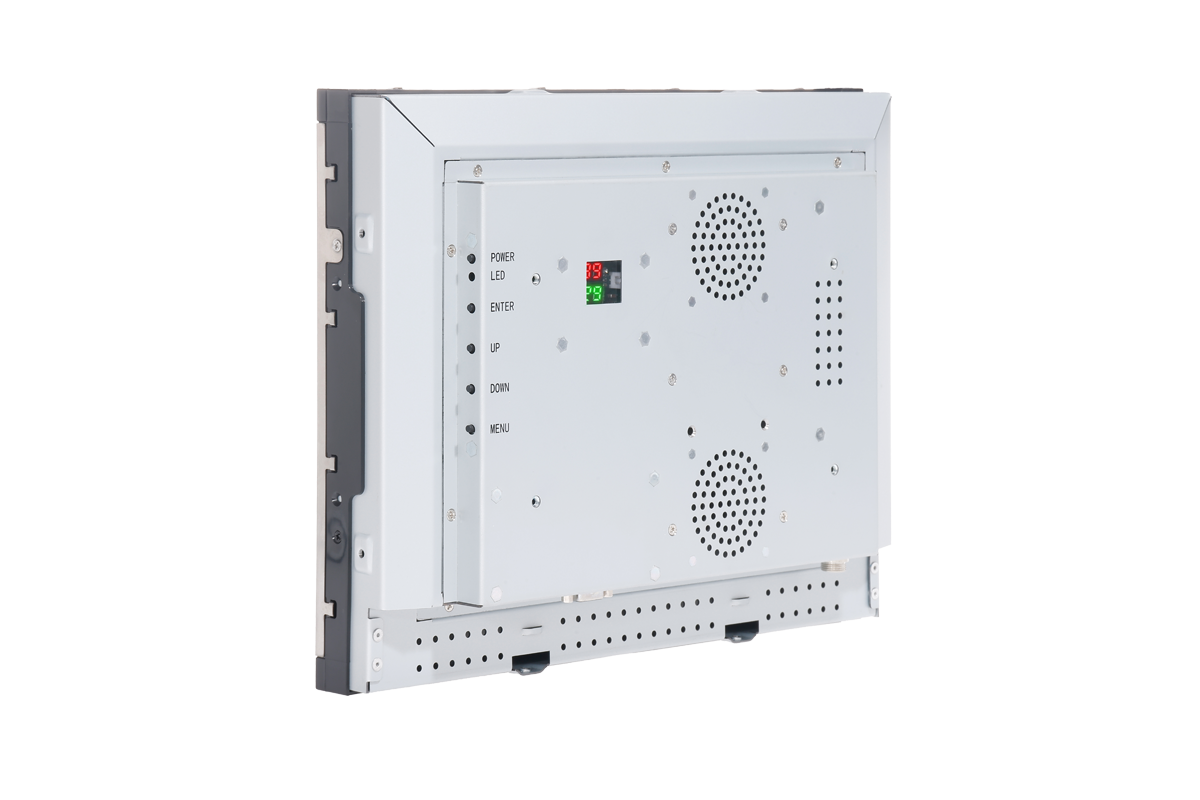

1539D 1500 Nits 15" Outdoor Open Frame Touchscreen Monitor(4:3)
Charging stations, payment & ticketing vending machine, outdoor ATM & baking, Wayfinding & signage
Features
+ Open frame, Ultra-narrow bezel design, Metal casing material, Easy to install and maintain
+ The front frame is made of stainless steel and plastic, prevent installation-related crushing/damage
+ Outdoor protective function
- Protection from direct sunlight
- Anti-fogging
- Anti-glare
- Waterproof
- Prevents screen blackout
+ Intelligent control system
- Temperature sensor
- Light sensor
+ Industrial-grade LCD, 1500 nits brightness, 50,000-hour backlight lifespan.
+ Full viewing angle, 1024X768@60Hz, HADS display mode, lower power consumption
+ 10-touch projected capacitive touchscreen, even water droplets can be touched.
+ Multiple mounting holes are provided on the side and back for easy kiosk integration
+ Support OS: Windows/Android/Linux
Optional:
- No Touch
- 3MM-5MM GLASS
- 1000-1500nits
- Privacy filter
Specifications
Model
1539D
Diagonal
15" (4:3)
Color
Black/silver
Active Area
304.128(W)×228.096(H) mm
Native Resolution
1024×768@60Hz
Number of Colors
16.7 million
Viewing Angle
Horizontal: 89°/178°
Vertical: 89°/178°
Contrast Ratio
1000:1
Brightness
LCD: 1500 nits; Touchscreen: 1300 nits
Response
14 ms
Touchscreen
Projected capacitive touchscreen
Number of Touches
10-touch with USB
Touch glass
3 mm
Touch mode
Finger/Stylus/Gloves (thickness≤ 2mm)
*Supports touch even when palm is resting on the screen.
*Supports touch even with water droplets on the screen.
Outdoor protective
Infrared blocking rate: 89.4%;
Ultraviolet blocking rate: 97%;
Anti-glare coefficient: Medium haze (10% - 15%).
Allows for clear viewing of the screen in bright light
Total solar heat rejection ratio: 52% (direct transmitted heat).
Explosion-proof: Withstands a 450g steel ball dropped vertically from a height of 1.0m onto the center of the glass without breaking.
Waterproof: The front frame is sealed to the touchscreen glass edge, preventing water from entering the display after spillage.
Light sensor module (External)
Automatically adjusts screen brightness based on ambient light. The factory default settings are as follows:
* Automatically reduce monitor brightness in low ambient light to avoid excessive glare and save energy;
* Automatically increase monitor brightness in high ambient light to ensure clear visibility of content.
Temperature sensor (built-in)
Displays startup and operating temperatures, and controls fan speed based on internal temperature to achieve cooling. Factory default settings are as follows (accuracy range ≤ 2℃):
* Internal sensed temperature > 30°C, cooling fan starts
* Internal sensed temperature < 30°C, cooling fan stops
I/O Interface

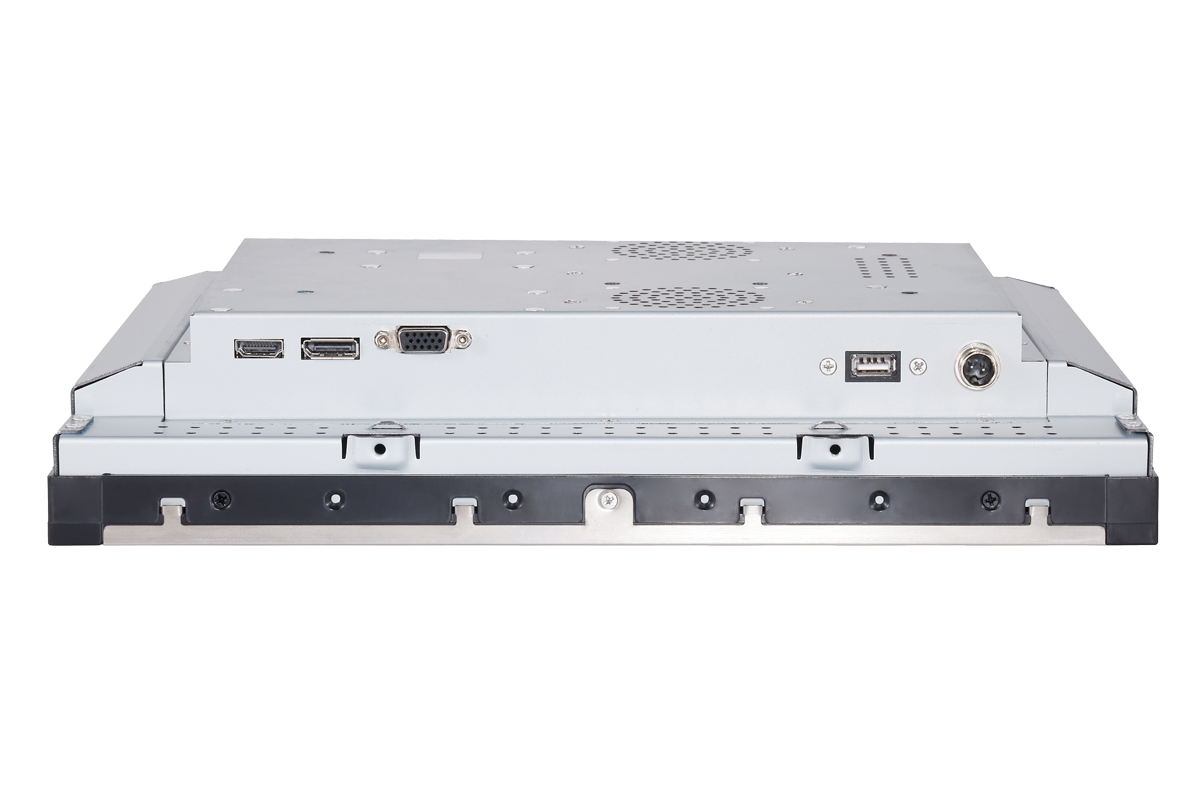

1×USB (touch), 1×HDMI, 1×VGA, 1×DC, 1×OSD
Input Voltage
AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%
Power Supply
12V5A(Power Jack: 2. 1mmx5.5mm)
Options: Aviation Connector/Locking Connector (additional purchase required)
Power Consumption
ON: 27.3W; SLEEP: 1.8W
Temperature
Operating: -10°C–55°C; Storage: -20°C–70°C
Humidity
Operating: 10%–70%; Storage: 10%–80%
Mounting Options
75mm VESA mount; 2-hole mounting on all four sides; Flush mount with brackets
MTBF
50,000 hours
Dimensions
346×270×68 mm
Shipping Dimensions
450×340×135 mm
Weight (Net.)
3.8 kg
Agency Approvals
FCC; CE; ROHS
What's in the Box
1×USB cable, 1×HDMI cable, 1×Power adapter, 1×DC cable
Side mounting bracket/screws (sold separately)
