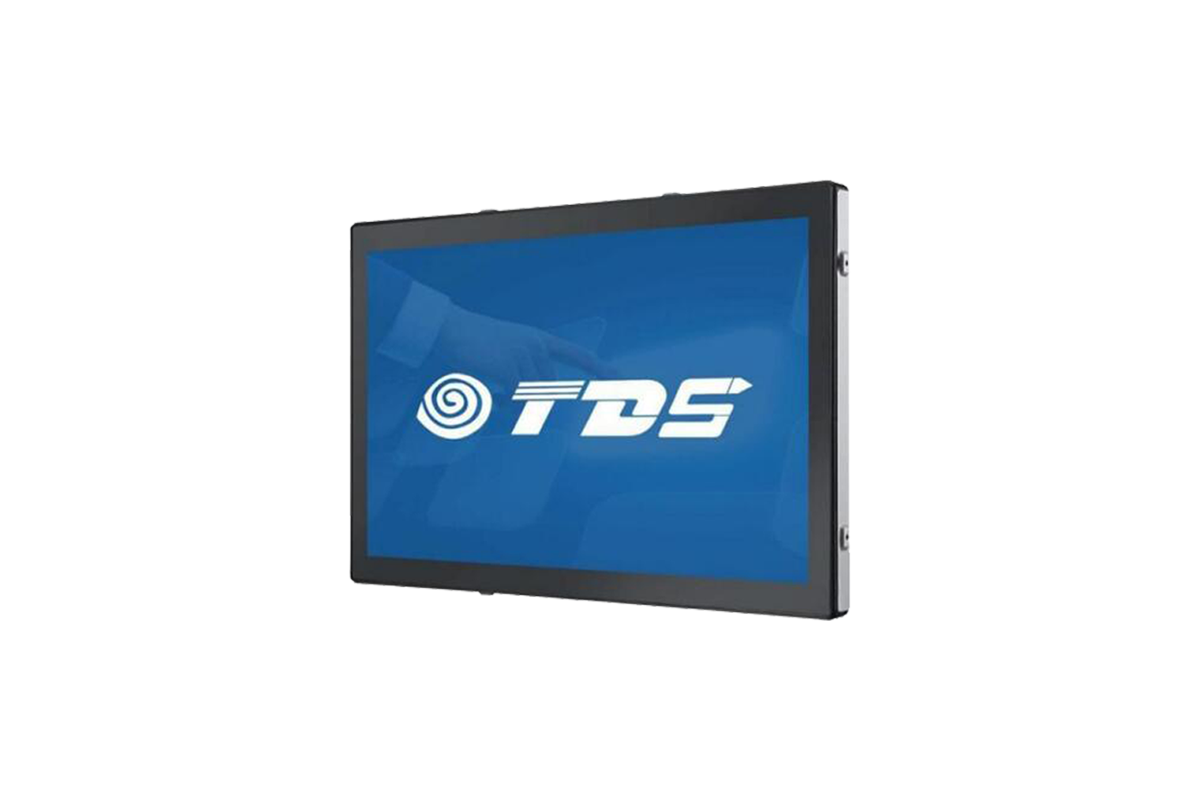

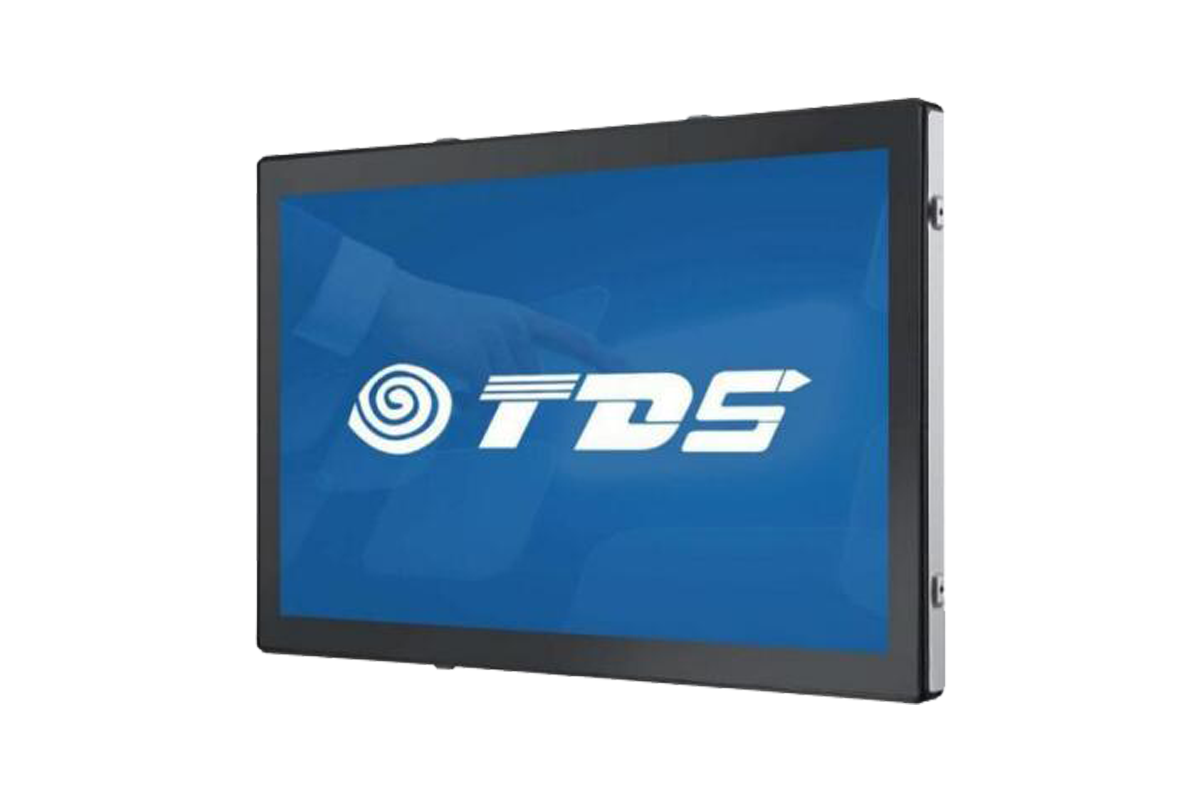

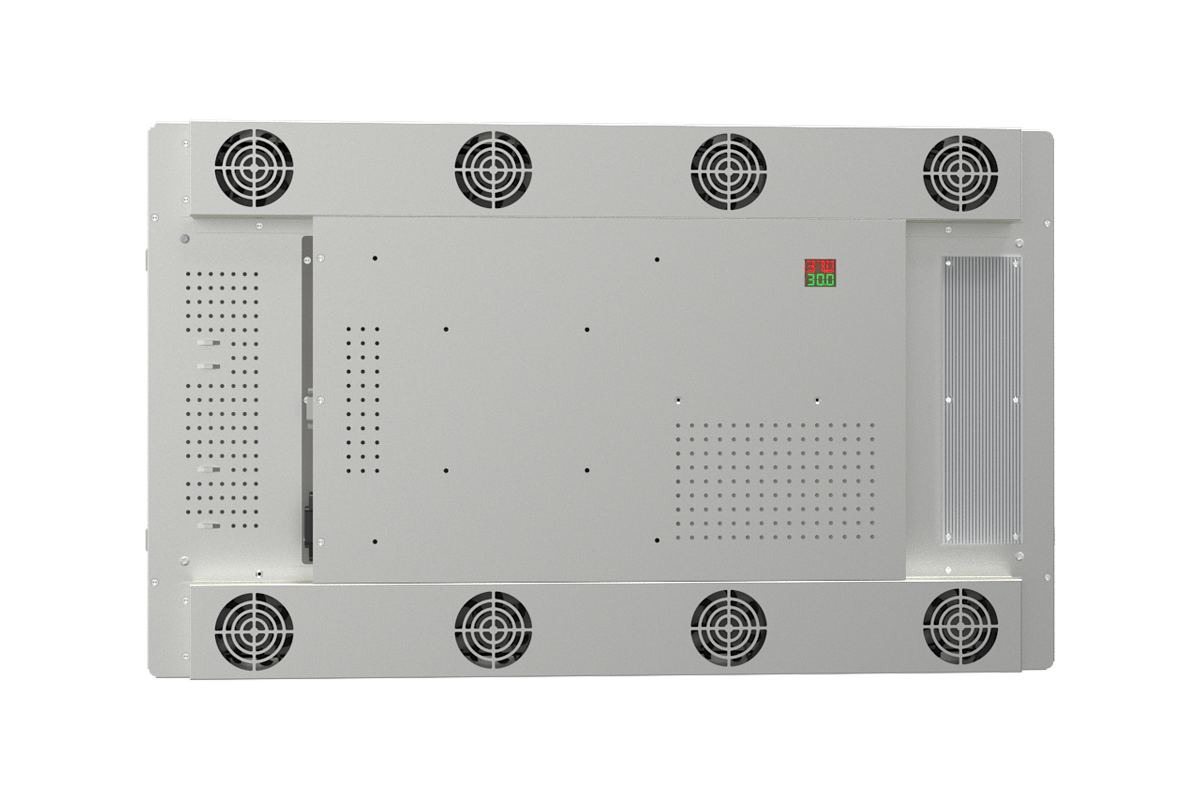

2138H 1500 Nits 21.5" Outdoor Open Frame Touchscreen Monitor(16:9)
Charging stations, payment & ticketing vending machine, outdoor ATM & baking, Wayfinding & signage
Features
+ Flat, open-frame structure, made of metal, surface rust prevention treatment
+ Stepped front frame, waterproof and dustproof, easy to integrate and maintain
+ Outdoor protective function
- Protection from direct sunlight
- Anti-fogging
- Anti-glare
- Anti-peeling
- Prevents screen blackout
+ Intelligent control system
- Temperature sensor
- Light sensor
+ Industrial-grade LCD, 1500 nits brightness, 50,000-hour backlight lifespan.
+ Full viewing angle, 1920X1080FHD@60Hz, supports both portrait and landscape display
+ 10-touch projected capacitive touchscreen, even water droplets can be touched.
+ Multiple mounting holes are provided on the side and back for easy kiosk integration.
+ Support OS: Windows/Android/Linux
Optional:
- No Touch
- 3MM-5MM GLASS
- 1000-1500nits
- Polarizer
- DP interface
Specifications
Diagonal
21.5" (16:9)
Color
Black/silver
Active Area
481.1(W)×262.7(H) mm
Native Resolution
1920×1080 FHD@60Hz
Number of Colors
16.7 million
Viewing Angle
89/89/89/89 (Typ.)(CR>10)
Contrast Ratio
1000:1
Brightness
LCD: 1500nits
Touchscreen: 1350nits
Response
14ms
Touchscreen
Projected capacitive touchscreen
Number of Touches
10-touch with USB
Touch glass
3mm
Touch mode
Finger/Stylus/Gloves (thickness≤ 2mm)
*Supports touch even when palm is resting on the screen.
*Supports touch even with water droplets on the screen.
Outdoor protective
Infrared blocking rate: 89.4%;
Ultraviolet blocking rate: 97%;
Anti-glare coefficient: Medium haze (10% - 15%). Allows for clear viewing of the screen in bright light;
Total solar heat rejection ratio: 52% (direct transmitted heat). Explosion-proof: Withstands a 450g steel ball dropped vertically from a height of 1.0m onto the center of the glass without breaking.
Waterproof: The front frame is sealed to the touchscreen glass edge, preventing water from entering the display after spillage.
Light sensor module(External)
Automatically adjusts screen brightness based on ambient light. The factory default settings are as follows:
* Automatically reduce monitor brightness in low ambient light to avoid excessive glare and save energy;
* Automatically increase monitor brightness in high ambient light to ensure clear visibility of content.

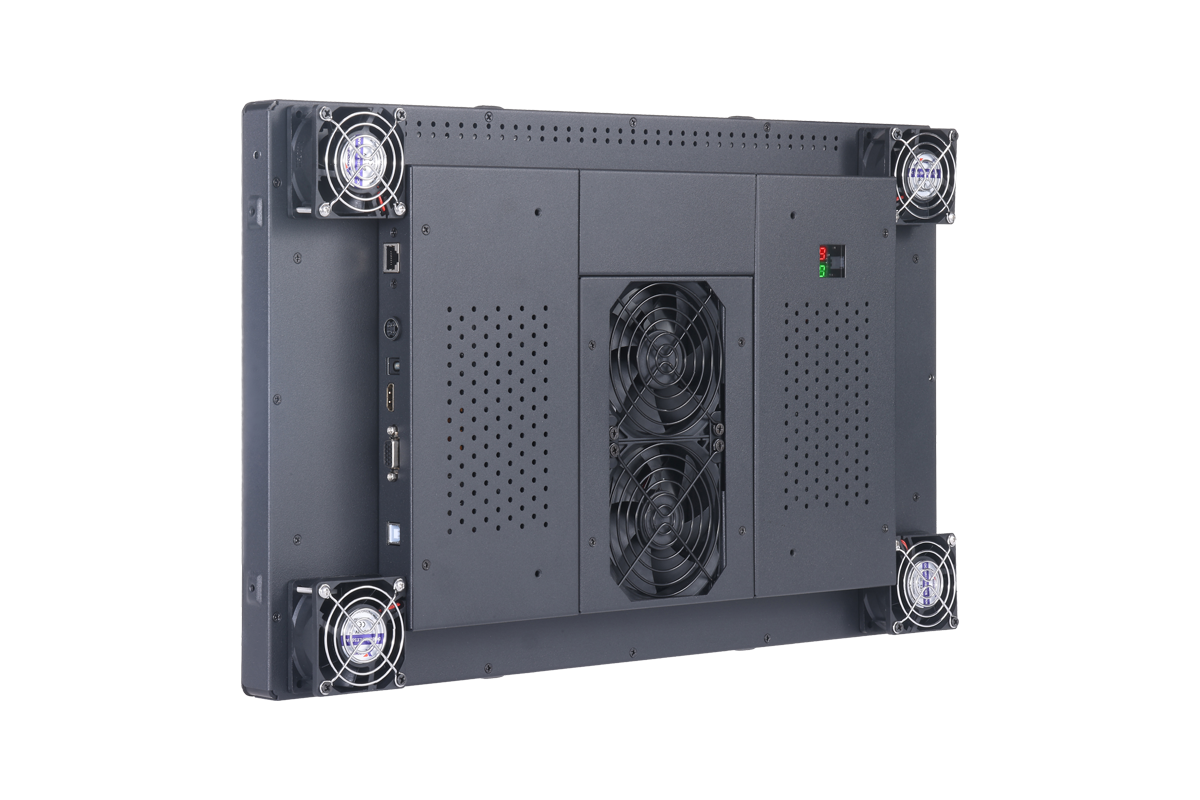

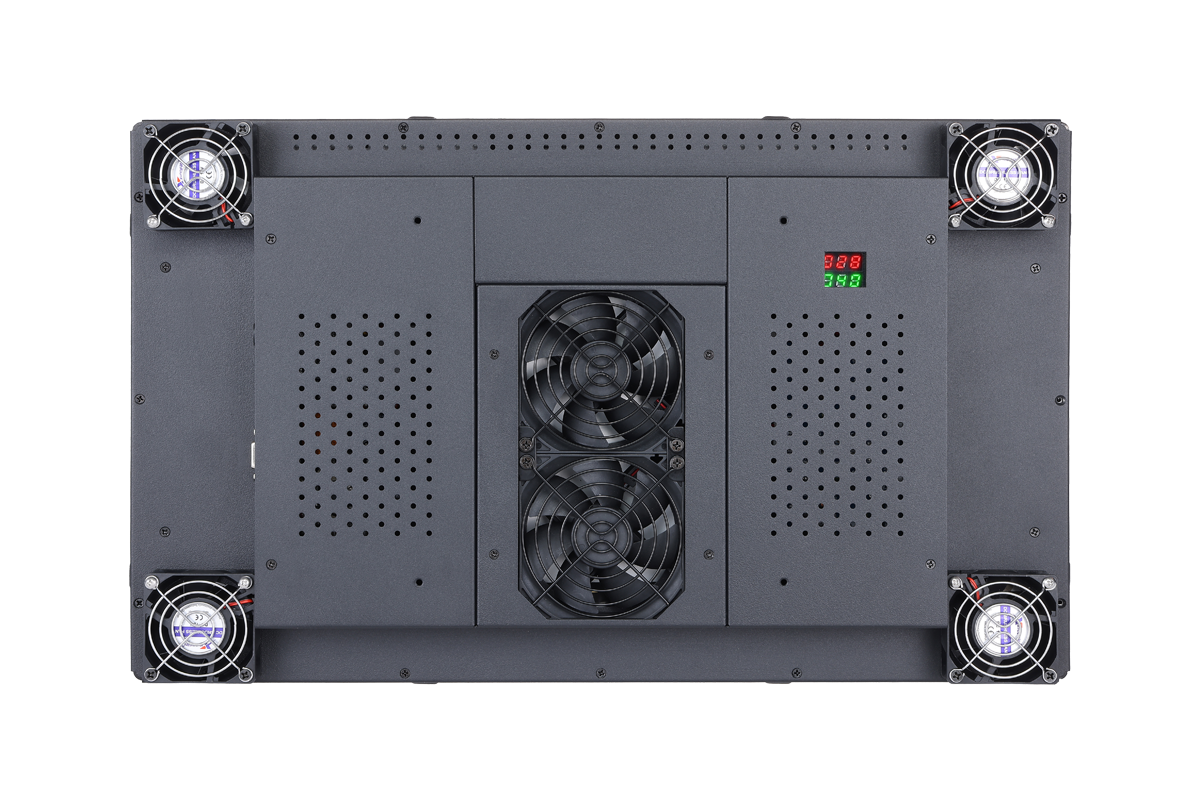

Temperature sensor(Built in)
Displays startup and operating temperatures, and controls fan speed based on internal temperature to achieve cooling. Factory default settings are as follows (accuracy range ≤ 2℃):
* Internal sensed temperature > 30°C, cooling fan starts
* Internal sensed temperature < 30°C, cooling fan stops

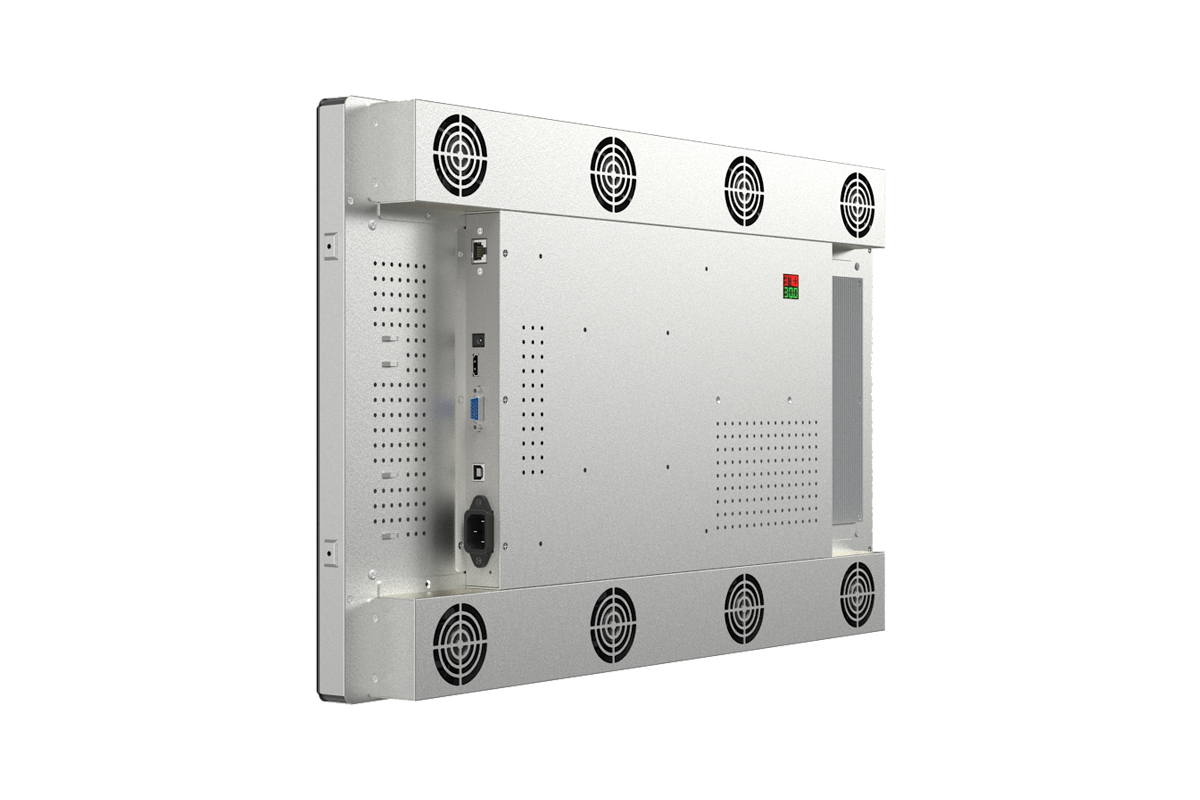

I/O Interface
1×USB(For touchscreen), 1×HDMI, 1×VGA, 1×DC, 1×OSD
Input Voltage
AC: 100-240V, 50/60Hz; DC: +12V ±5%
Power Supply
12V8A(Power Jack : 2. 1mmx5.5mm)
Options: Aviation Connector/Locking Connector (additional purchase required)
Power Consumption
Monitor + adapter - ON: 56W; SLEEP from PC: 1.8W
Temperature
Operating: -10℃ to 55℃;
Storage: -20℃ to 70℃
Humidity
Operating: 10%-70%;
Storage: 10%-80%
Mounting Options
100mm&200mm VESA mount on rear of unit;
2 hole mounting interface on all four sides;
Flush mount with included brackets
MTBF
50,000 hours
Dimensions
537.4×324.4×59.5 mm
Shipping Dimensions
620×405×190 mm
Weight (net.)
6.5KG
Agency Approvals
FCC; CE; ROHS
What's in the Box
1×USB cable, 1×HDMI cable, 1×Power adapter, 1×DC cable, 1×OSD
