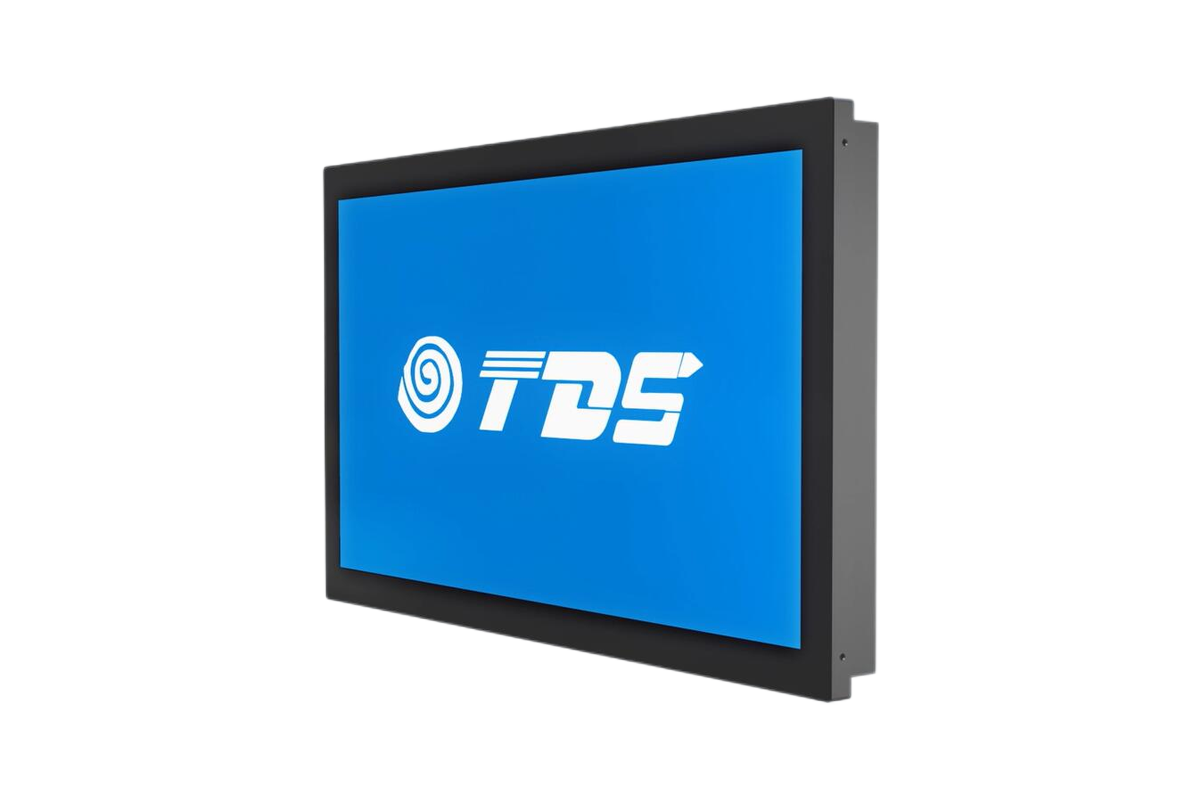

3202H 1500 Nits 32" Outdoor Touchscreen Monitor(16:9)
Information signage, charging station, Interactive signage
Features
+ Metal shell, Flat appearance design
+ IP55 level front panel waterproof
+ Infrared + UV + riot protection for outdoor use
+ Wide operating temperature: -10℃ to 50℃
+ Resolution 1920X1080FHD@60Hz
+ 1500nits brightness backlight
+ 50,000 hours of MTBF for long lasting 24/7 operation
+ 10-Point projection capacitive touchscreen
+ UV-resistant inks prevent screen printing from peeling
+ Touch screen and LCD full bonding process
+ Built-in self-adjusting light sensor module
+ Built-in intelligent temperature control system
+ 2-year Warranty
Optional:
- No Touch
- 3mm-6mm glass
- 1000-2000nits
- Video interface: Display Port
- All-In-One(Android/Windows)
Specifications
Diagonal
32”(16:9)
Color
Black
Active Area
699.4X393.3(mm)
Dimensions
762X467.5X92.7(mm)
Resolution
1920X1080FHD@60Hz
Viewing Angle
Horizontal: 89° /89°, Vertical: 89° /89°
Number of Colors
16.7M
Brightness
LCD panel : 1500nits; PCAP : 1275nits
Brightness adjustment mode
The brighter the ambient light, the brighter the LCD screen. The darker the ambient light, the darker the LCD screen, and enter the power saving mode.
Contrast Ratio
1400:1
Response Time
12ms
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard),
Gloves touch (≥2mm)
Glass Processing Technology
3mm, tempered, surface AG coating, UV protection≥99.4%(optional),
Infrared protection≥86%(optional)
Glass hardness
7H(MOHS)
Touch Accuracy
≤2mm
Touch Interface
USB 2.0
Video Interface
HDMI+VGA
Input Voltage
AC:100-240 VAC, 50/60 Hz
Power type
built-in power supply
Waterproof
Front panel: Front frame touch screen sealed to bezel. Back: rain-proof hole design, can withstand rainwater falling vertically.
Explosion-proof
450 grams of steel ball height 1.2 meters vertical drop center point will not break.
Temperature control
When the operating temperature reaches 40°C, the cooling fan starts. When the temperature is below 40°C, stop it.
Weight(net)
16.35KG
Temperature
Operating: -10°C-50°C; Storage: -10°C-80°C
Humidity
Operating: 20%-70%;
Storage: 10%-80%
MTBF
50,000 Hours
VESA Mounting
400X200(mm)
Warranty
2-Year
Agency Approvals
FCC; CE; ROHS
Support OS
Windows/Linux/Android
What’s in the Box
1*USB cable, 1*HDMI cable, 1*AC cable
Accessories
Enhancements, expansions, and extras.
Resources
- 3202H Specification & Drawing
- VIEW SPEC
