Hygiene and Infection Control, Durability and Reliability, Accuracy and Precision, Compliance with Regulatory Standards, Integration with Healthcare Systems.
Features
+ Flat appearance design
+ ABS + PC Plastic shell
+ Front frame against dust and liquids
+ Industrial grade LCD, LED backlight
+ Resolution 1024X768@60Hz
+ 10 point projection capacitive touchscreen
+ Cover plate anti riot and anti fingerprint
+ Video interface: VGA + HDMI
+ Medical IEC 60601 compliant power supply

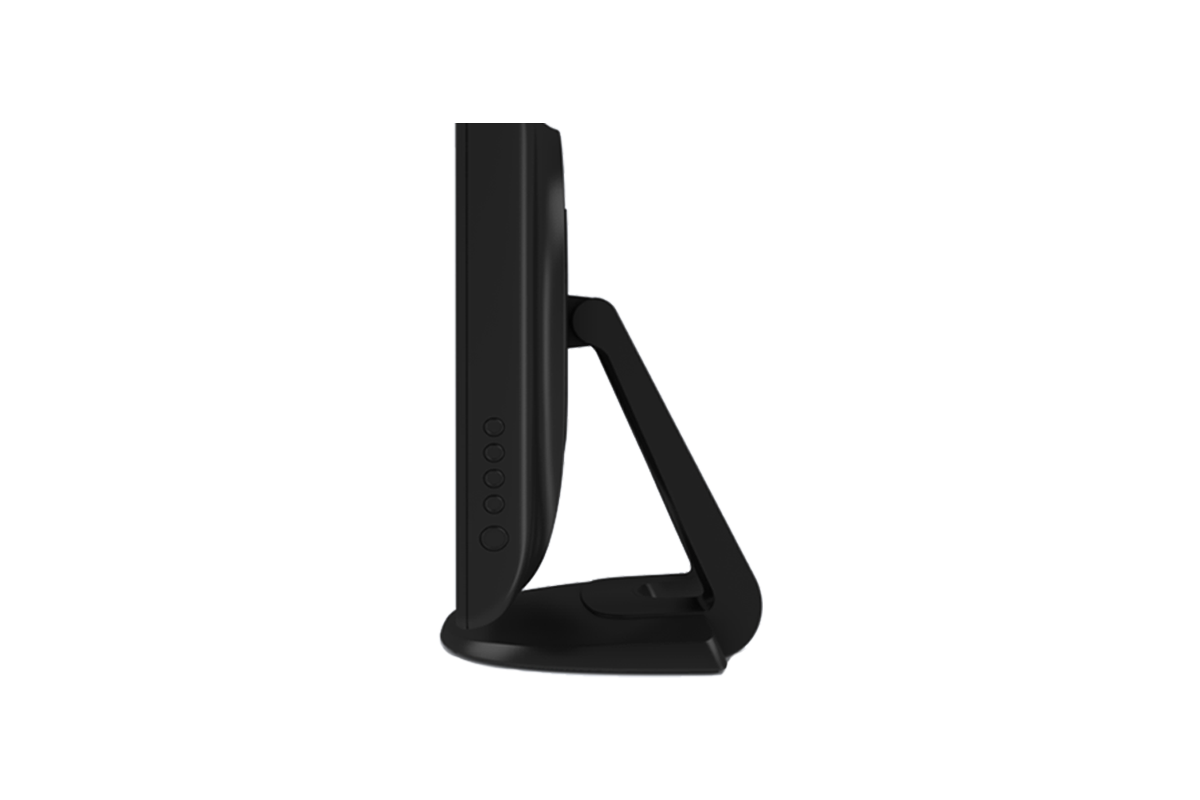

+ Stable base with adjustable angle
+ Back VESA mounting option
+ Support OS: Windows/Android/Linux
+ 3-Years warranty
Optional：
- No Touch
- Privacy filter
- Touch interface:RS232
- Video interface: Display Port
- ALL-IN-ONE(Windows/Android)
Specifications
Model
TDS1501P
Color
Black
Diagonal
15"
Aspect Ratio
4:3
Active Area
304.12 x 228.09(mm)
Dimensions
350 x 280 x 52(mm)
Resolution
1024X768@60Hz
Viewing Angle
Horizontal: 89°/89°,
Vertical: 89°/89°
Number of Colors
16.2M
Brightness (typical)
LCD Panel: 350 nits, PCAP: 325 nits
Response Time
20ms
Contrast Ratio
1500:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Speakers
TwoX2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
450g steel ball falls from 1m without breaking
Weight
(Unpackaged) 4.2KG
Shipping Dimensions
520 x 340 x 135(mm)
Temperature
Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%
MTBF
50,000 hours demonstrated
Mounting Options
VESA:75X75(mm),
100X100(mm)
Base Adjustable Angle
0-90 degree(Optional)
Power Supply
DC:12V3A
Warranty
3-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows,Linux,Android
What's in the Box
1*USB cable,1*HDMI cable,1*DC cable
Accessories
Enhancements, expansions, and extras.
Resources
- 1501P Specification Drawing
