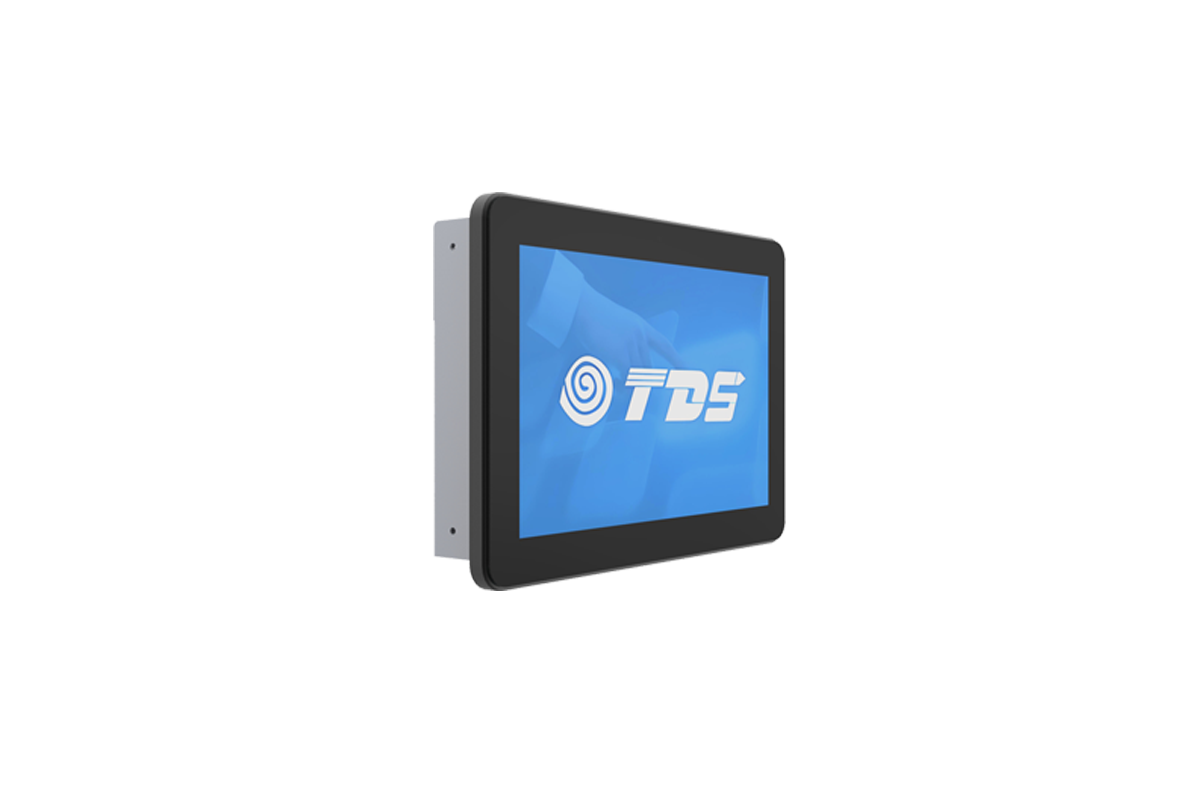

1039H 1000 Nits 10.1" Outdoor Open Frame Touchscreen Monitor(16:10)
Charging stations, payment & ticketing vending machine, outdoor ATM & baking
Features
+ Zero-bezel, flat, open-frame structure, made of metal, surface rust prevention treatment
+ The front panel is waterproof and dustproof, making it suitable for outdoor applications
+ Outdoor protective function
- Protection from direct sunlight
- Anti-fogging
- Anti-glare
- Anti-peeling
- Prevents screen blackout
+ Intelligent control system
- Temperature sensor
- Light sensor
+ Industrial-grade LCD, 1000 nits brightness, 50,000-hour backlight lifespan.
+ Full viewing angle, 1280x800@60Hz, supports both portrait and landscape display
+ 10-touch projected capacitive touchscreen, even water droplets can be touched.

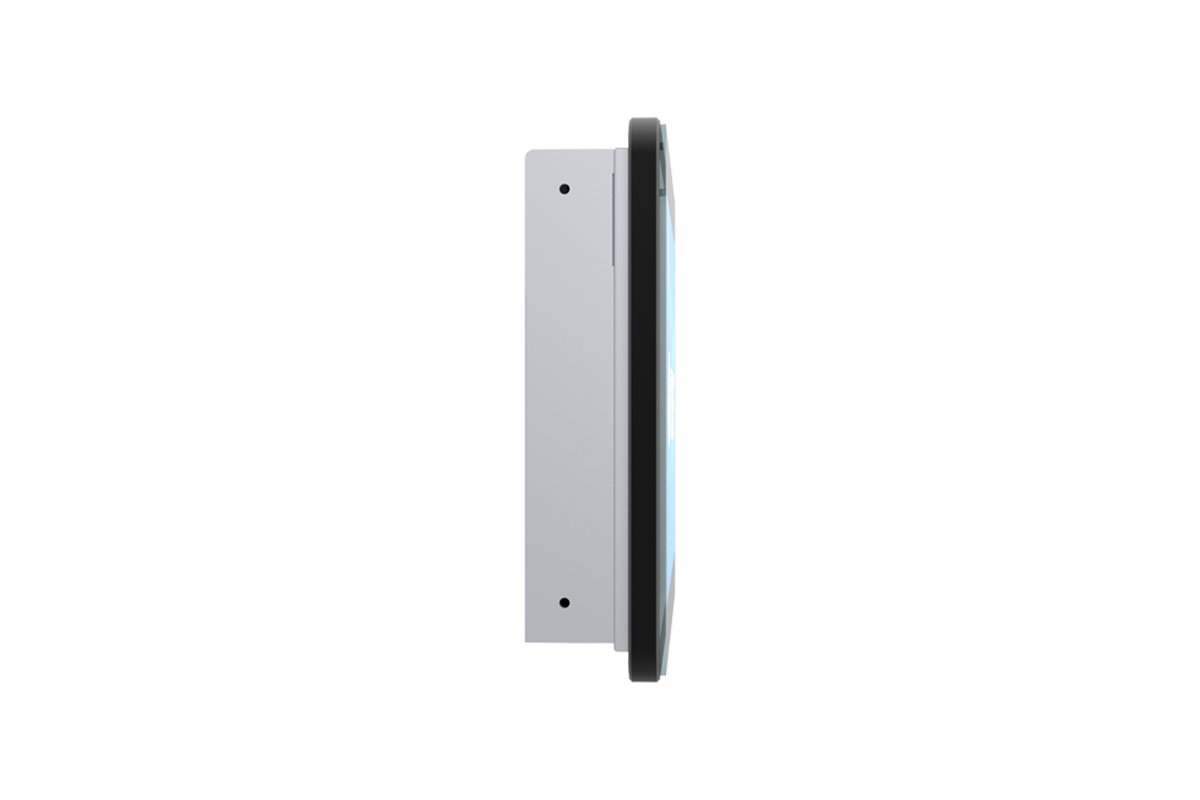

+ Multiple mounting holes are provided on the side and back for easy kiosk integration
+ Support OS: Windows/Android/Linux
Optional:
- No Touch
- 700-1200nits
- 3MM-5MM GLASS
- Polarizer
- DP interface
Specifications
Diagonal
10.1” (16:10)
Color
Black/silver
Active Area
216.96(W)×135.6(H) mm
Native Resolution
1280×800@60Hz
Number of Colors
16.2 million
Viewing Angle
Horizontal: 85°/170°; Vertical: 85°/170°
Contrast Ratio
800:1
Brightness
LCD: 1000nits; Touchscreen: 875nits
Response
25ms
Touchscreen
Projected capacitive touchscreen
Number of Touches
10-touch with USB
Touch glass
3mm
Touch mode
Finger/Stylus/Gloves (thickness≤ 2mm)
*Supports touch even when palm is resting on the screen. *Supports touch even with water droplets on the screen.
Outdoor protective
Infrared blocking rate: 89.4%;
Ultraviolet blocking rate: 97%;
Anti-glare coefficient: Medium haze (10% - 15%).
Allows for clear viewing of the screen in bright light
Total solar heat rejection ratio: 52% (direct transmitted heat).
Explosion-proof: Withstands a 450g steel ball dropped vertically from a height of 1.0m onto the center of
the glass without breaking.
Waterproof: The front frame is sealed to the touchscreen glass edge, preventing water from entering the
display after spillage.
Light sensor module
Automatically adjusts screen brightness based on ambient light.
The factory default settings are as follows:
* Automatically reduce monitor brightness in low ambient light to avoid excessive glare and save energy;
* Automatically increase monitor brightness in high ambient light to ensure clear visibility of content.

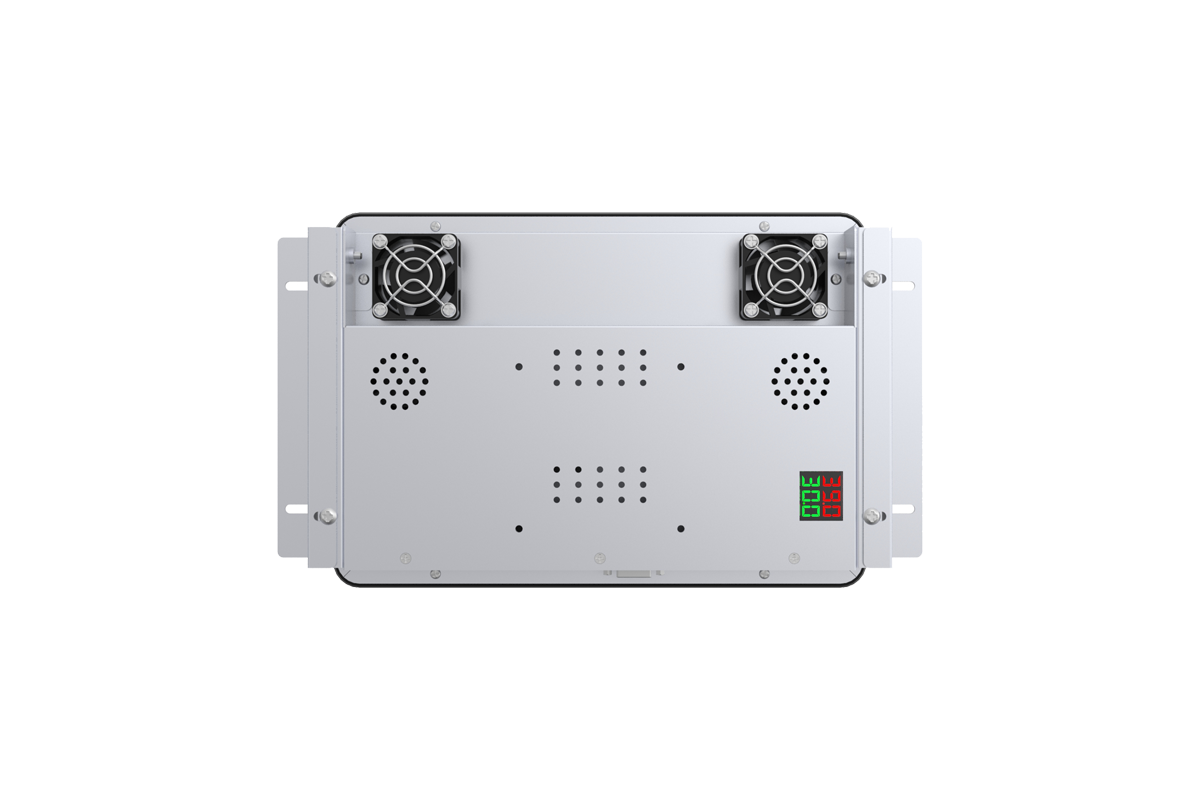

Temperature sensor
Displays startup and operating temperatures, and controls fan speed based on internal temperature to achieve
cooling.
Factory default settings are as follows(accuracy range ≤ 2℃):
* Internalsensed temperature > 30°C, cooling fan starts
* Internalsensed temperature < 30°C, cooling fan stops

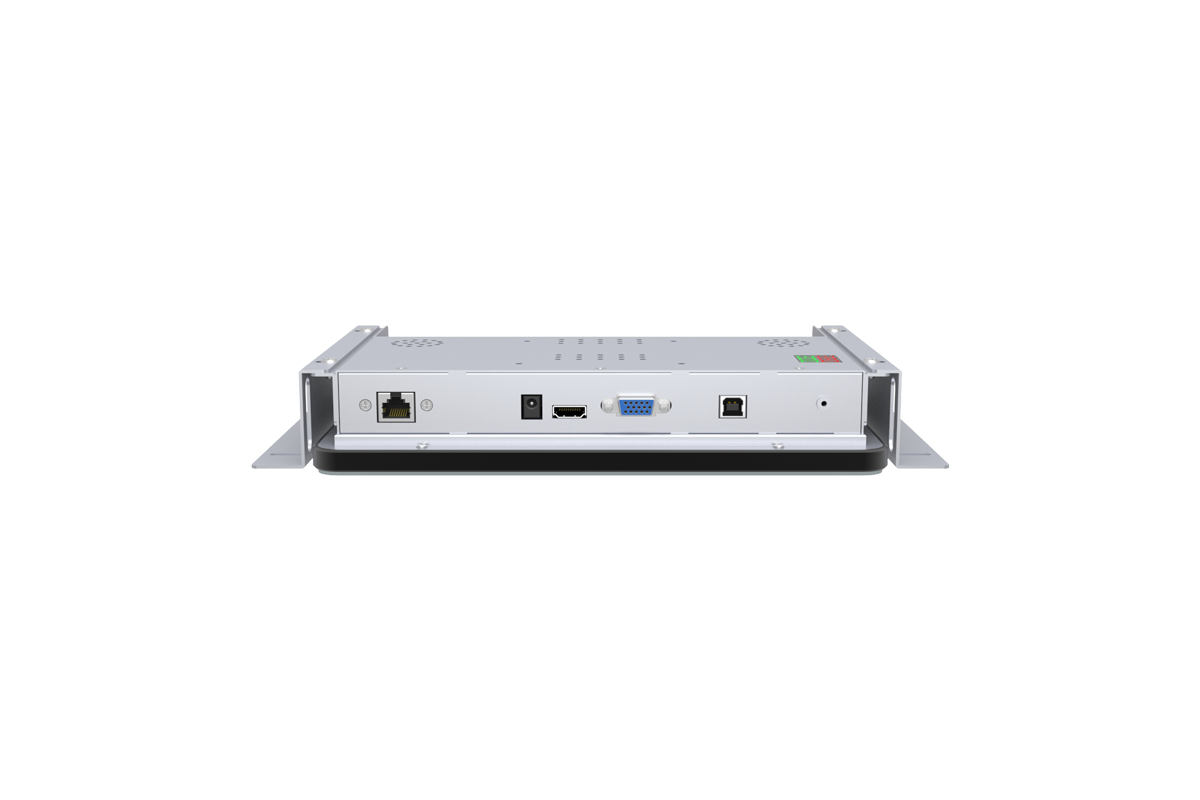

I/O Interface
1×USB, 1×HDMI, 1×VGA, 1×DC, 1×OSD
Input Voltage
AC: 100-240V, 50/60Hz; DC: +12V ±5%
Power Supply
12V5A(Power Jack: 2.1mmx5.5mm)
Options: Aviation Connector/Locking Connector (additional purchase required)
Power Consumption
ON: 18W; SLEEP: 0.8W
Temperature
Operating: -10℃ to 55℃; Storage: -20℃ to 70℃
Humidity
Operating: 10%-70%; Storage: 10%-80%
Mounting Options
75mm VESA mount on rear of unit;
2 hole mounting interface on all four sides;
Flush mount with included brackets;
MTBF
50,000 hours
Dimensions
260.2×178.5×46 mm
Shipping Dimensions
535×210×80 mm
Weight (net.)
2KG
Agency Approvals
FCC; CE; ROHS
What's in the Box
1×USB cable, 1×HDMI cable, 1×Power adapter, 1×DC cable, 1×OSD
Accessories
Enhancements, expansions, and extras.
Resources
- 1039H Specification & Drawing
- VIEW SPEC
