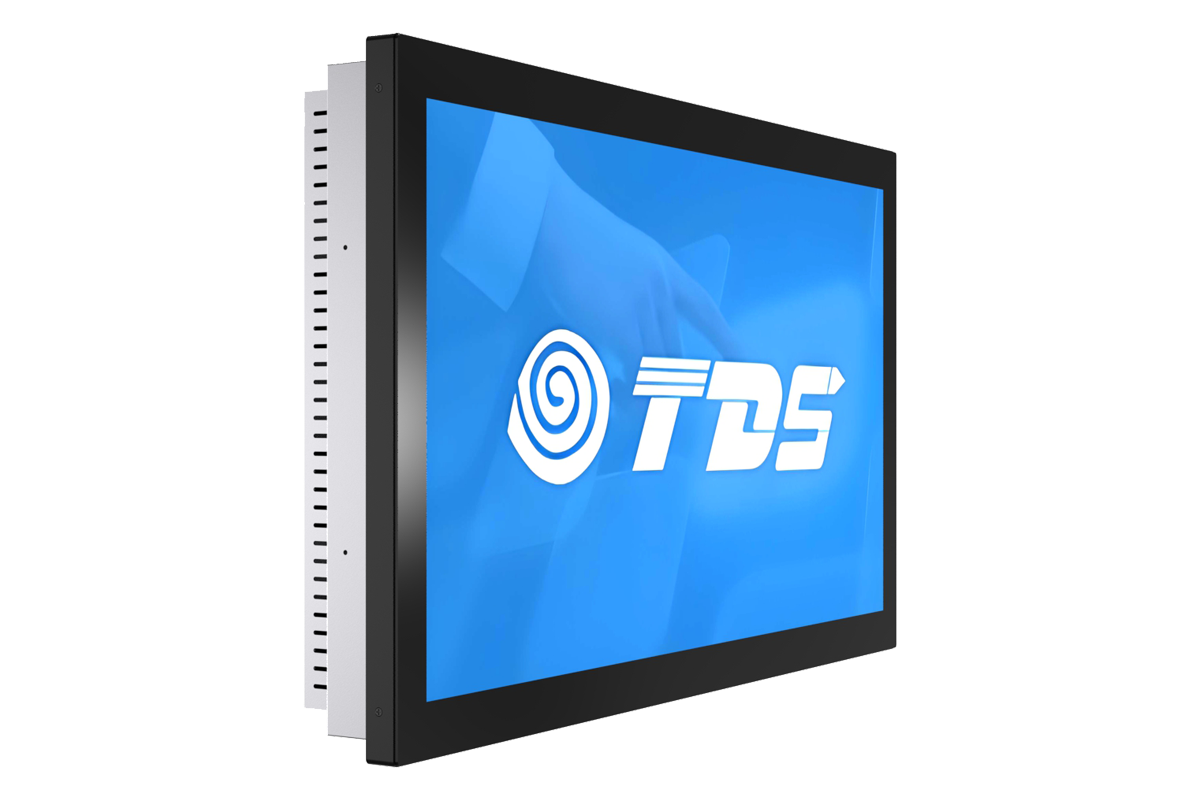

3239H 1500 Nits 32" Outdoor Open Frame Touchscreen Monitor(16:9)
Charging stations, payment & ticketing vending machine, outdoor ATM & baking, Wayfinding & signage
Features
+ Zero-bezel, flat, open-frame structure, made of metal,surface rust prevention treatment
+ The front panel is waterproof and dustproof, making it suitable for outdoor applications
+ Outdoor protective function
- Protection from direct sunlight
- Anti-fogging
- Anti-glare
- Anti-peeling
- Prevents screen blackout
+ Intelligent control system
- Temperature sensor
- Light sensor
+ Mini LED panel, direct-lit backlight, 1500nits brightness, 50,000-hour backlight lifespan.
+ ADSDS technology offers high penetration, resulting in a brighter screen
+ Full viewing angle, 1920X1080FHD@60Hz, supports both portrait and landscape display
+ 10-touch projected capacitive touchscreen, even water droplets can be touched.
+ Multiple mounting holes are provided on the side and back for easy kiosk integration
+ Support OS: Windows/Android/Linux
+ 2-year Warranty
Optional:
- No Touch
- 1000-2000nits
- 3MM-5MM GLASS
- Polarizer
- DP interface
Specifications
Diagonal
32" (16:9)
Color
Black/silver
Active Area
698.4(W)×392.85(H) mm
Native Resolution
1920×1080 FHD@60Hz
Number of Colors
16.7 million
Viewing Angle
89/89/89/89 (Typ.)(CR>10)
Contrast Ratio
1200:1
Brightness
LCD: 1500nits; Touchscreen: 1350nits
Response
8ms
Touchscreen
Projected capacitive touchscreen
Number of Touches
10-touch with USB
Touch glass
5mm
Touch mode
Finger/Stylus/Gloves (thickness≤ 1mm):
*Supports touch even when palm is resting on the screen. *Supports touch even with water droplets on the screen.
Outdoor protective
Infrared blocking rate: 87.1%;
Ultraviolet blocking rate: 99.6%;
Anti-glare coefficient: Medium haze (10% - 15%).
Allows for clear viewing of the screen in bright light;
Total solar heat rejection ratio: 53% (direct transmitted heat). Explosion-proof: Withstands a 450g steel ball dropped vertically from a height of 1.2m onto the center of the glass without breaking.
Waterproof: The front frame is sealed to the touchscreen glass edge, preventing water from entering the display after spillage.
Light sensor module(External)
Automatically adjusts screen brightness based on ambient light. The factory default settings are as follows:
* Automatically reduce monitor brightness in low ambient light to avoid excessive glare and save energy;
* Automatically increase monitor brightness in high ambient light to ensure clear visibility of content.
Temperature sensor(Built in)
Displays startup and operating temperatures, and controls fan speed based on internal temperature to achieve cooling. Factory default settings are as follows (accuracy range ≤ 2℃):
* Internal sensed temperature > 30°C, cooling fan starts
* Internal sensed temperature < 30°C, cooling fan stops
I/O Interface

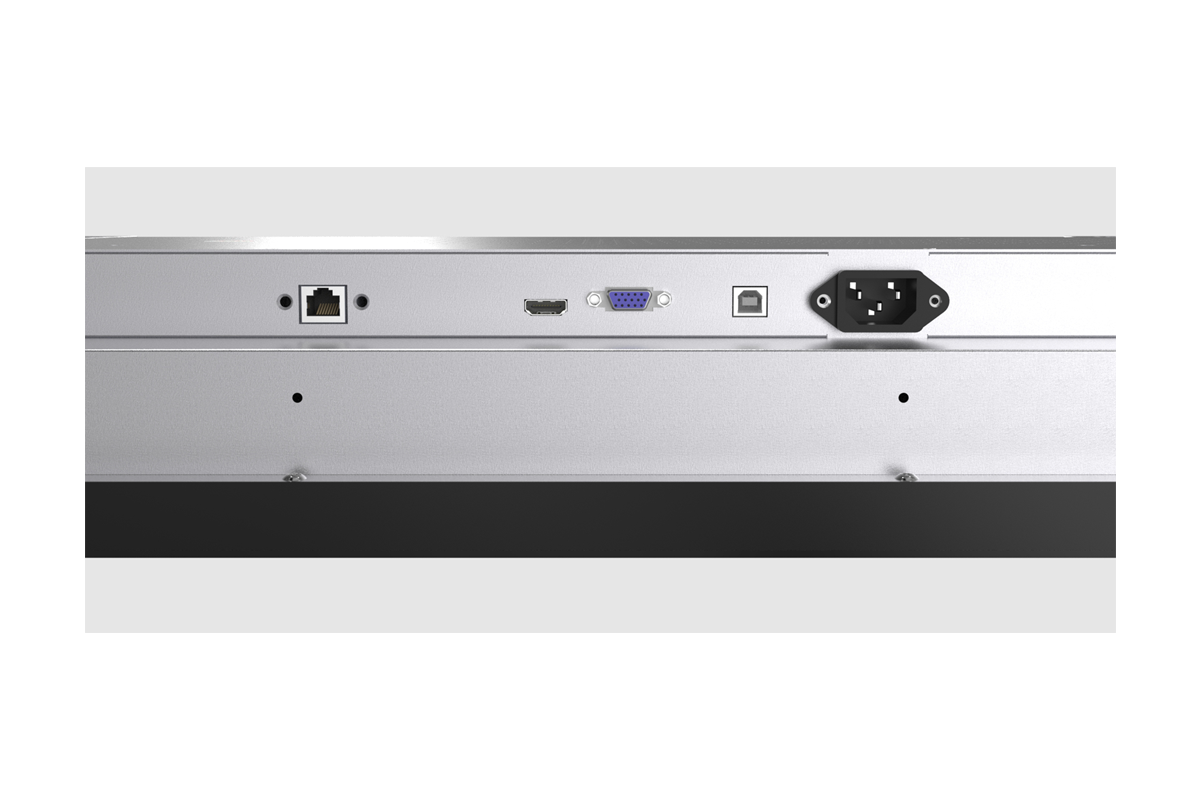

1×USB, 1×HDMI, 1×VGA, 1×DC, 1×OSD
Input Voltage
AC: 100-240V, 50/60Hz; DC: +12V ±5%
Power Supply
Built-in AC switching power supply
Power Consumption
ON: 82W; SLEEP: 3W
Temperature
Operating: -10℃ to 55℃; Storage: -20℃ to 70℃
Humidity
Operating: 10%-70%; Storage: 10%-80%
Mounting Options
200mm&400mm VESA mount on rear of unit;
2 hole mounting interface on all four sides;
Flush mount with included brackets;
MTBF
50,000 hours
Dimensions
762×471×97.7 mm
Shipping Dimensions
870×570×170 mm
Weight (net.)
20KG
Agency Approvals
FCC; CE; ROHS
What's in the Box
1×USB cable, 1×HDMI cable, 1×AC cable, 1×OSD
Accessories
Enhancements, expansions, and extras.
Resources
- 3239H Specification & Drawing
