Suited for Retail, Information acquisition desk, Service station, Conference terminal, Cash register system, Library inquiry terminal.
+ ABS + PC Plastic shell
+ Front frame against dirt, dust and liquids
+ Industrial grade LCD, LED backlight
+ Resolution 1280X1024@60Hz
+ Wide viewing angle, high contrast
+ 10 point projection capacitive touchscreen
+ Cover plate anti riot and anti fingerprint
+ 5-wire resistive touchscreen optional
+ Video interface: VGA + HDMI

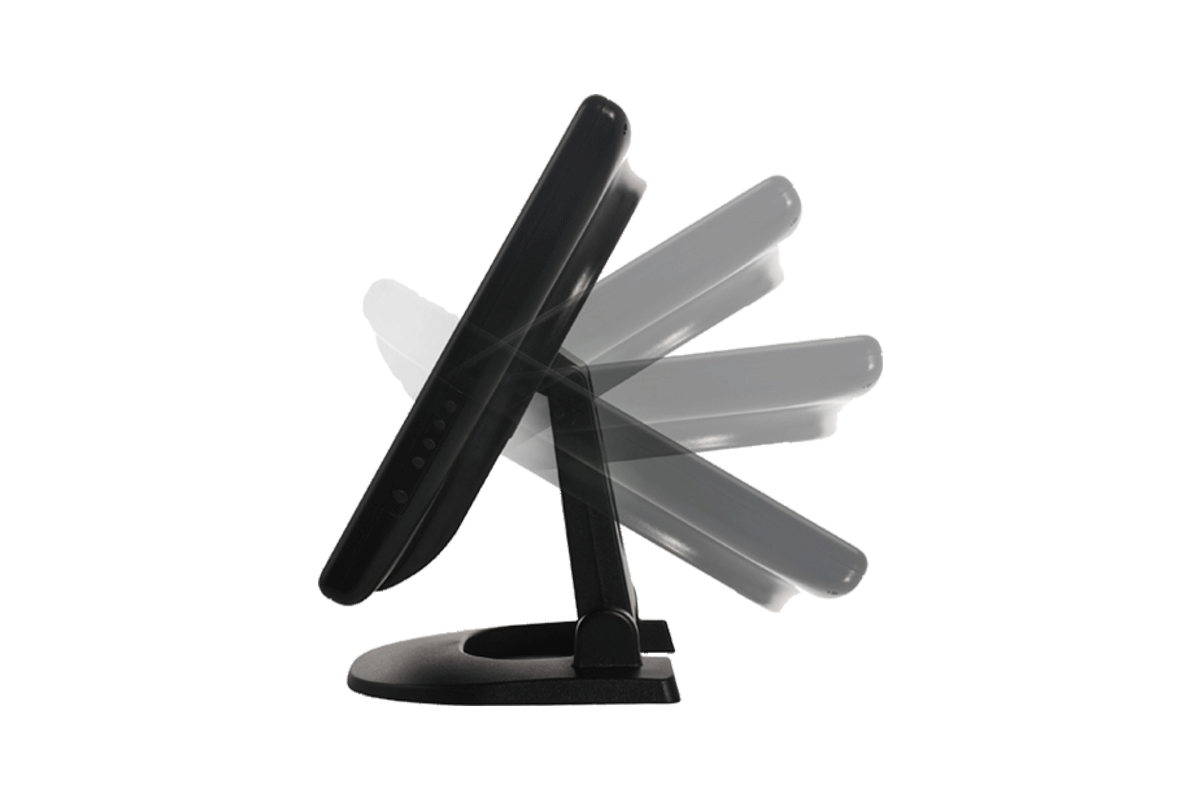

+ Stable base with adjustable angle

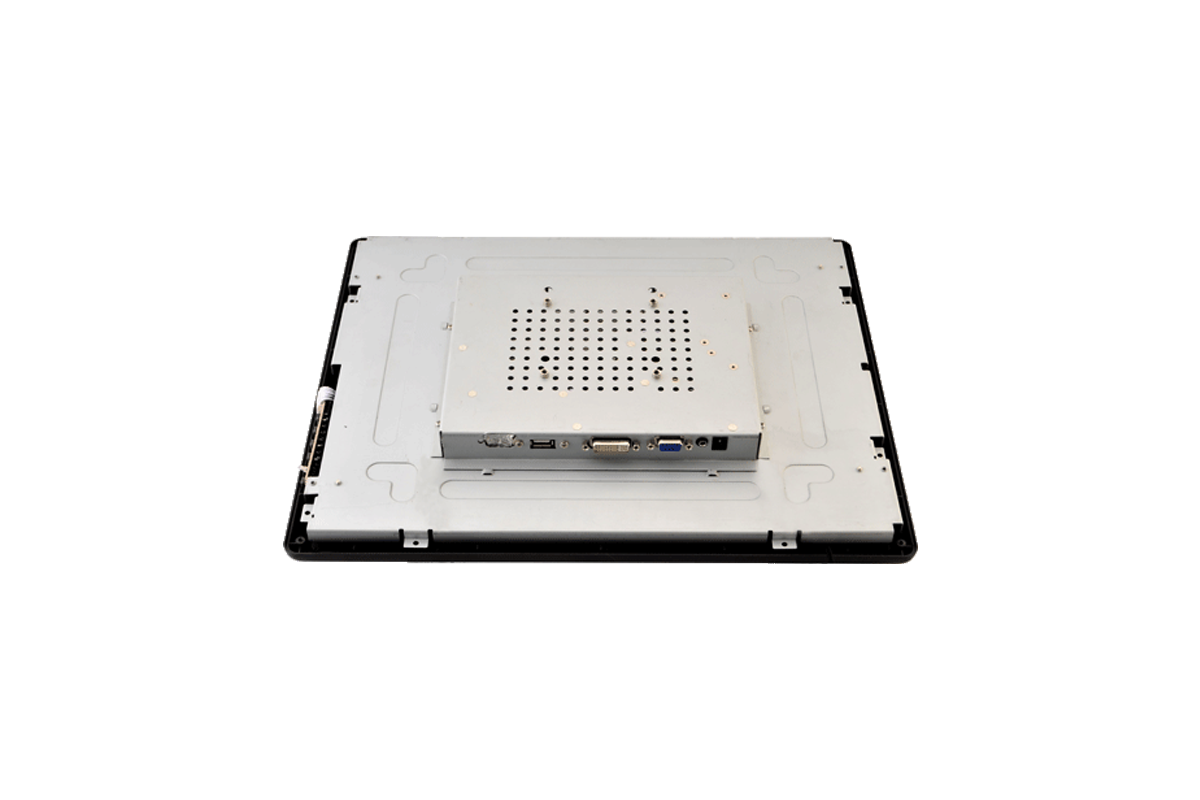

+ Back VESA mounting option
+ Support OS: Windows/Android/Linux
+ 3-Years warranty
Optional：
- No Touch
- Private filter
- Touch interface: Dual serial/USB
- Video interface: Display Port
- ALL-IN-ONE(Windows/Android)
Specifications
Model
TDS1901
Color
Black
Diagonal
19"
Aspect Ratio
5:4
Active Area
376 x 301(mm)
Dimensions
440 x 365 x 69(mm)
Resolution
1280 X 1024@60Hz
Viewing Angle
Horizontal: 89°/89°
Vertical: 89° /89°
Number of Colors
16.2M
Brightness (typical)
LCD Panel: 300 nits, PCAP: 275 nits
Response Time
8ms
Contrast Ratio
1000:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Speakers
TwoX2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
1kg steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 6KG
Shipping Dimensions
525 x 455 x 170(mm)
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
50,000 hours demonstrated
Mounting Options
VESA:75X75(mm)
100X100(mm)
Base Adjustable Angle
0-90 degrees（Optional)
Power Supply
DC:12V3A
Warranty
3-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows/Linux\Android
What's in the Box
1*USB cable,1*VGA cable,1*DC cable
Accessories
Enhancements, expansions, and extras.
20F Stand
20A Stand
Backpack-A03 for Android Rk3399
Backpack-A05 for Windows10
