4302D 43" Touchscreen Monitor
Point-of-sale, self-service-signage, Commercial applications
Features
+ Metal shell material, flat, ultra-light and thin
+ Front frame against dust and liquids
+ Integrated back reinforcement structure
+ Commercial grade LCD, LED backlight
+ Resolution 1920X1080FHD@60Hz
+ 500nits brightness, full viewing angle
+ 50,000 hours of backlight lifespan
+ 10-touch projective capacitive touchscreen
+ 7H physical tempered glass, surface AF coating
+ Smooth to the touch, even with water droplets.
+ The touchscreen uses a USB control interface
+ Supports both landscape and portrait orientations
+ Video interface: HDMI+VGA

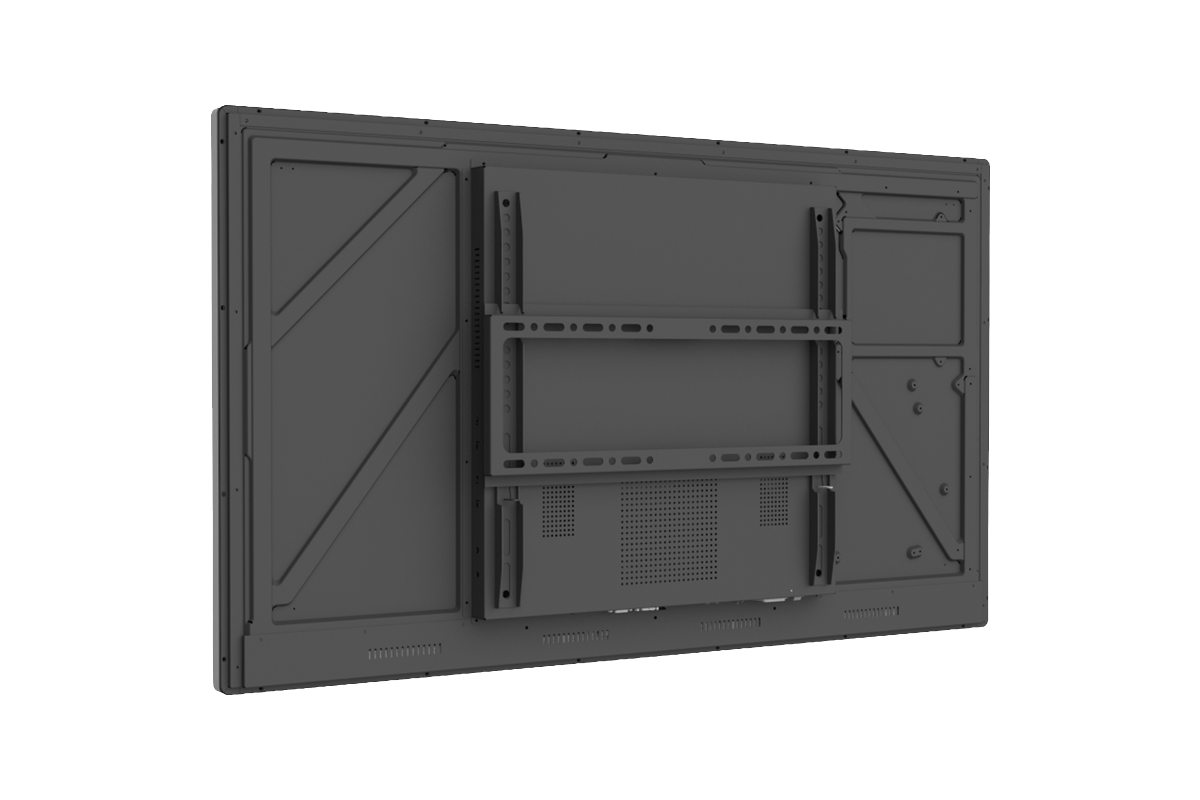

+ Back VESA wall mounting: 400X400mm
+ Support OS: Windows/Android/Linux
+ 2-Year Warranty
Optional:
- No Touch
- AG Coating
- Video interface: Display Port
- Media play
- All-in-one (Android/Windows)
Specifications
Model
4302D(4302C)
Color
Black
Diagonal
43 inches
Aspect Ratio
16:9
Active Area
941.2×529.4 (mm)
Dimensions
985×573.4×62.4 (mm)
Resolution
1920×1080FHD@60Hz
Viewing Angle
Horizontal: 89°/89°
Vertical: 89°/89°
Number of Colors
16.7M
Brightness
LCD panel: 500cd/m²
Touch: 450cd/m²
Contrast Ratio
1200:1
Response Time
8ms
Touch Technology
Projective Capacitive - 10 point touch
Input Method
Finger, Capacitance pen (Standard), Latex gloves touch (Thickness≤2mm)
Light Transmittance
90%
Surface Hardness
7H
Touch Interface
USB 2.0
Video Interface
HDMI+VGA
Speaker
Two×2W internal speakers
Input Voltage
AC: 100-240 VAC, 50/60 Hz
Power Type
Built-in AC
Scalability
Touchscreen sealed to bezel
Drop Test
450g steel ball falls from 1.2m without breaking
Weight (Unpackage)
15.5KG
Shipping Dimensions
1090×150×710 (mm)
Temperature
Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity
Operating: 20% to 70%
Storage: 10% to 80%
Power Consumption
ON: 90W, SLEEP: 1.2W
VESA Mounting
400×500 (mm) M6
MTBF
50,000 hours
Warranty
2-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*HDMI cable, 1*USB cable, 1*AC cable, 1*Remote control,
Wall mount bracket(Optional)
