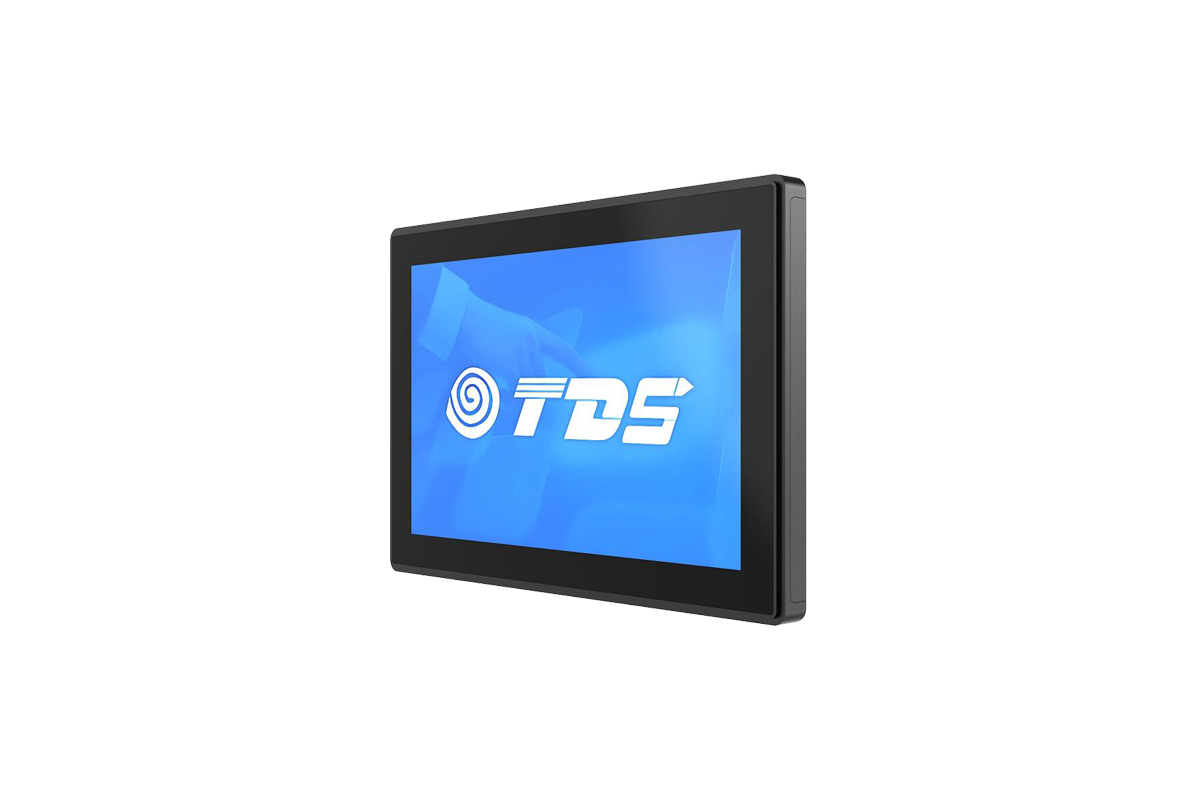

1038B 10.4" Openframe Touchscreen Monitor(4:3)
Kiosks, casino and amusement, Retail-self-service, industrial automation
Features
+ Metal shell, open-frame structure

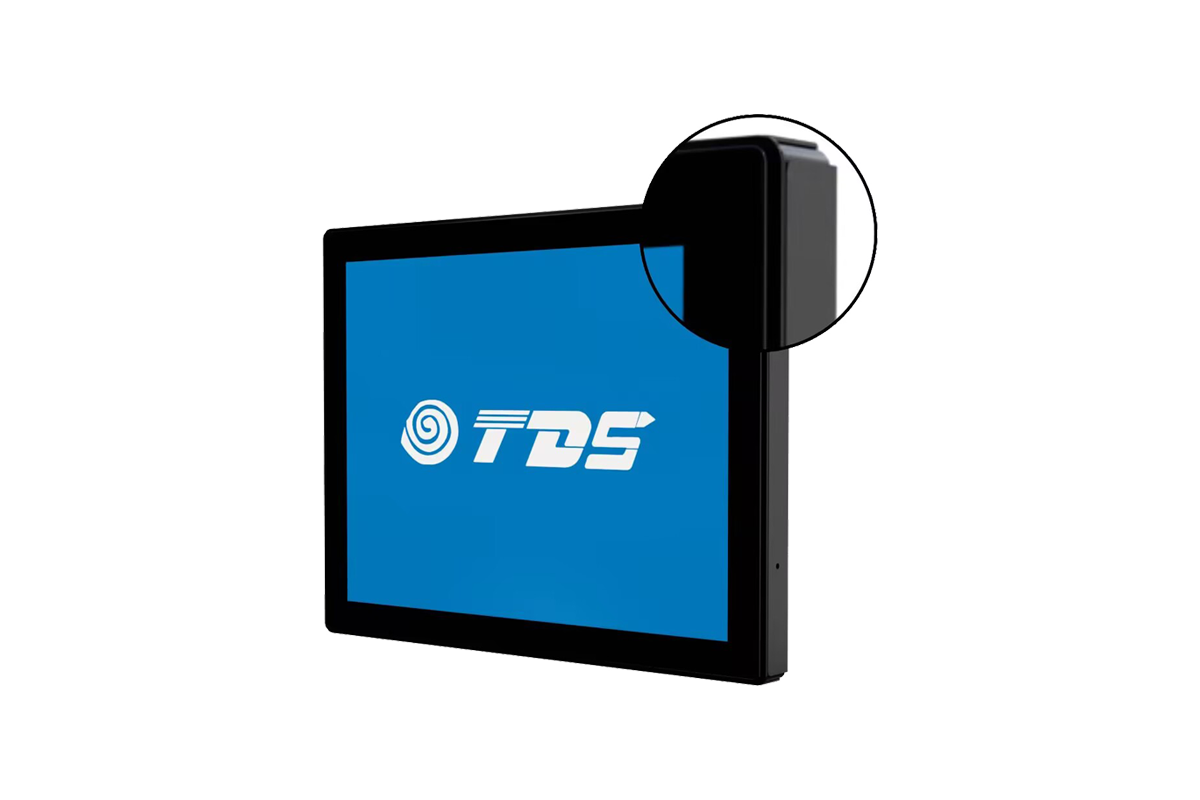

+ Stepped edge of front frame, easy to integrate
+ Bezels and touch screen sealed and waterproof
+ Industrial-grade LCD, LED backlight
+ Resolution 1024X768@60Hz
+ 10-point projection capacitive touchscreen
+ Cover plate anti riot and anti fingerprint
+ Reliable Industrial Grade Components

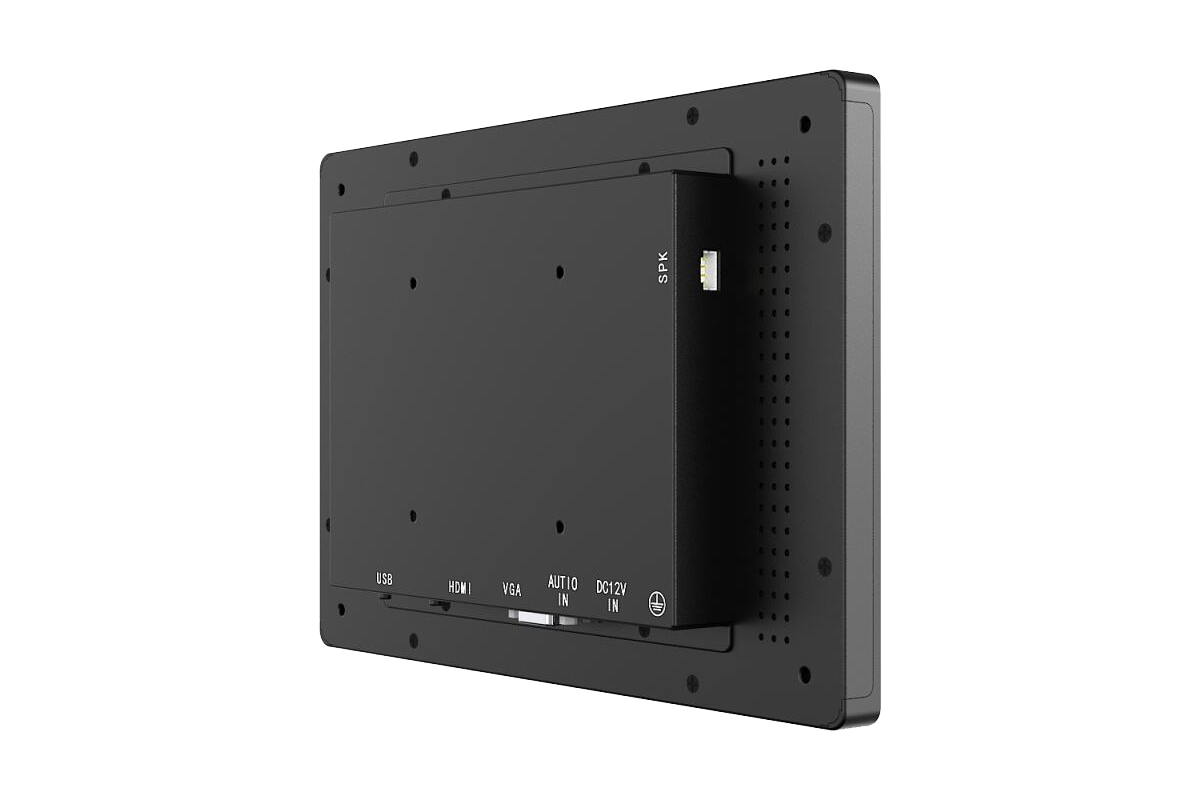

+ Video interface: HDMI+VGA
+ Multiple assembly holes on the side and back
+ Support OS: Windows/Android/Linux
Optional:
- No Touch
- Privacy Filter
- AG Coating
- Video interface: DP
- Brightness:500-1000nits
Specifications
Model
1038B
Color
Black
Diagonal
10.4”
Aspect Ratio
4:3
Active Area
210.4X157.8(mm)
Dimensions
254×201.2×39 (mm)
Resolution
1024×768@60Hz
Viewing Angle
Horizontal: 80°/80°
Vertical: 80°/80°
Number of Colors
262K, 50% NTSC
Brightness (typical)
LCD panel: 350nits; PCAP: 315nits
Response Time
25ms
Contrast Ratio
1000:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input Method
Finger, Capacitance pen(Standard)
Latex gloves touch (Thickness≤2mm)
Transmittance
≥90%
Surface Hardness
7H (Mohs)
Touch Interface
USB 2.0

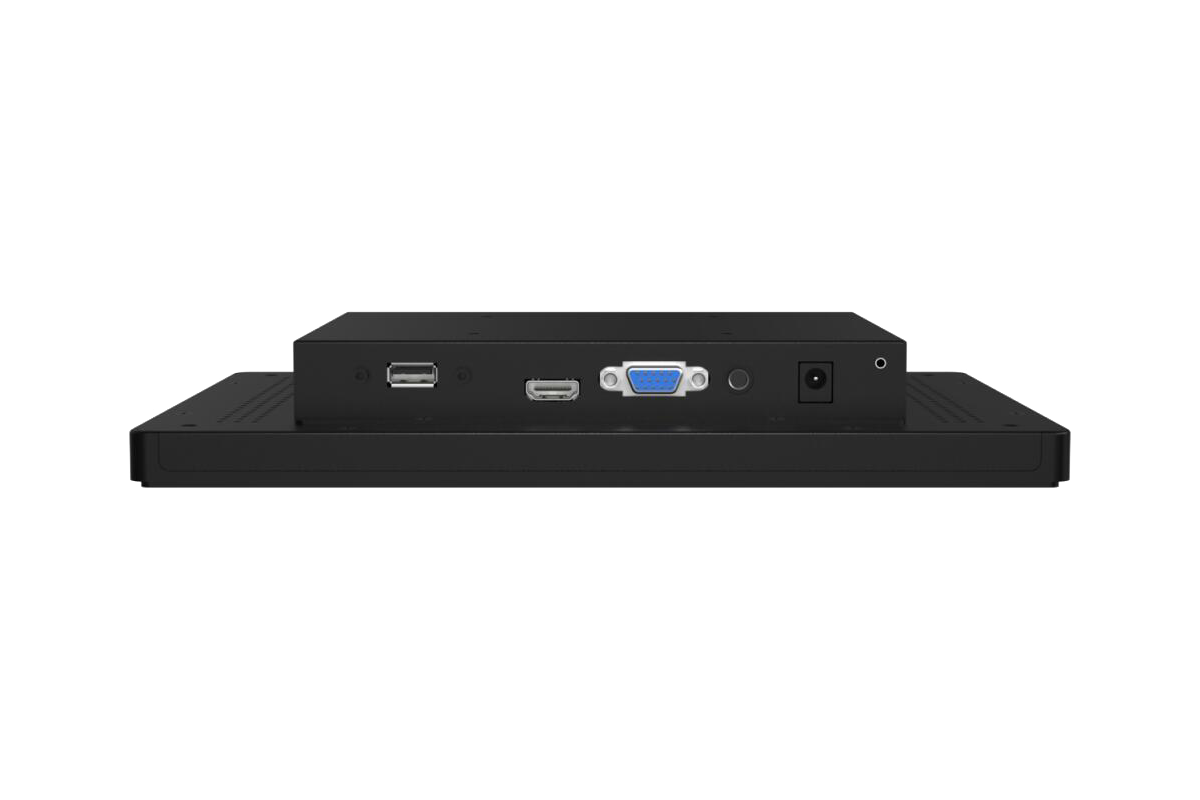

Video Interface
VGA+HDMI
Input Voltage
AC: 100-240 VAC, 50/60 Hz
Scalability
Touchscreen sealed to bezel
Drop Test
200g steel ball falls from 0.8m without breaking
Weight (net.)
1.5KG
Shipping Dimensions
370×170×330 (mm)
Temperature
Operating: 0°C to 50°C
Storage: -10°C to 70°C
Humidity
Operating: 20% to 70%;
Storage: -10% to 80%
Mounting Options
VESA: 75mm×75mm;
Fixing holes: 122mm (four sides)
MTBF
50,000 hours demonstrated
Power Supply
DC: 12V3A
Warranty
2-year
Agency Approvals
FCC, CE, ROHS
Support OS
Windows/Linux/Android
What's in the Box
1*USB cable,1*HDMI cable,1*DC cable(Standard)
L” (Side Mount) Brackets and w/Screws(Options)
