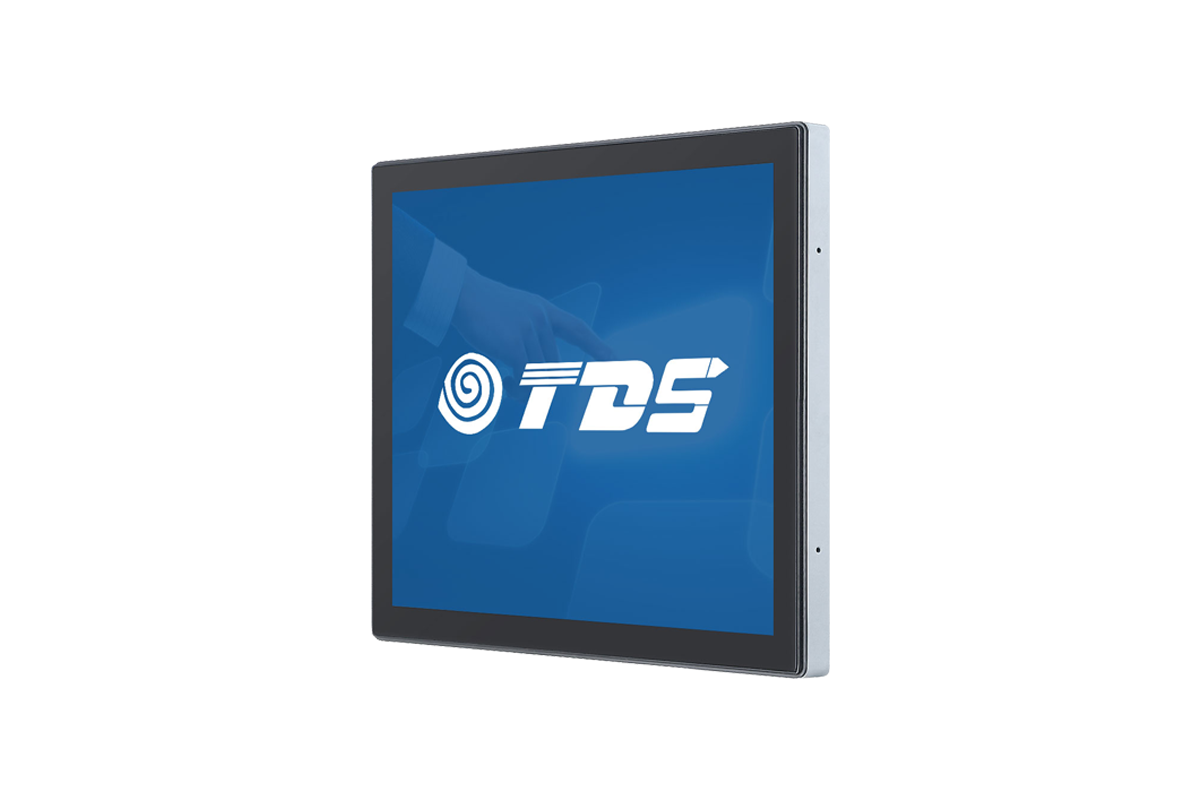

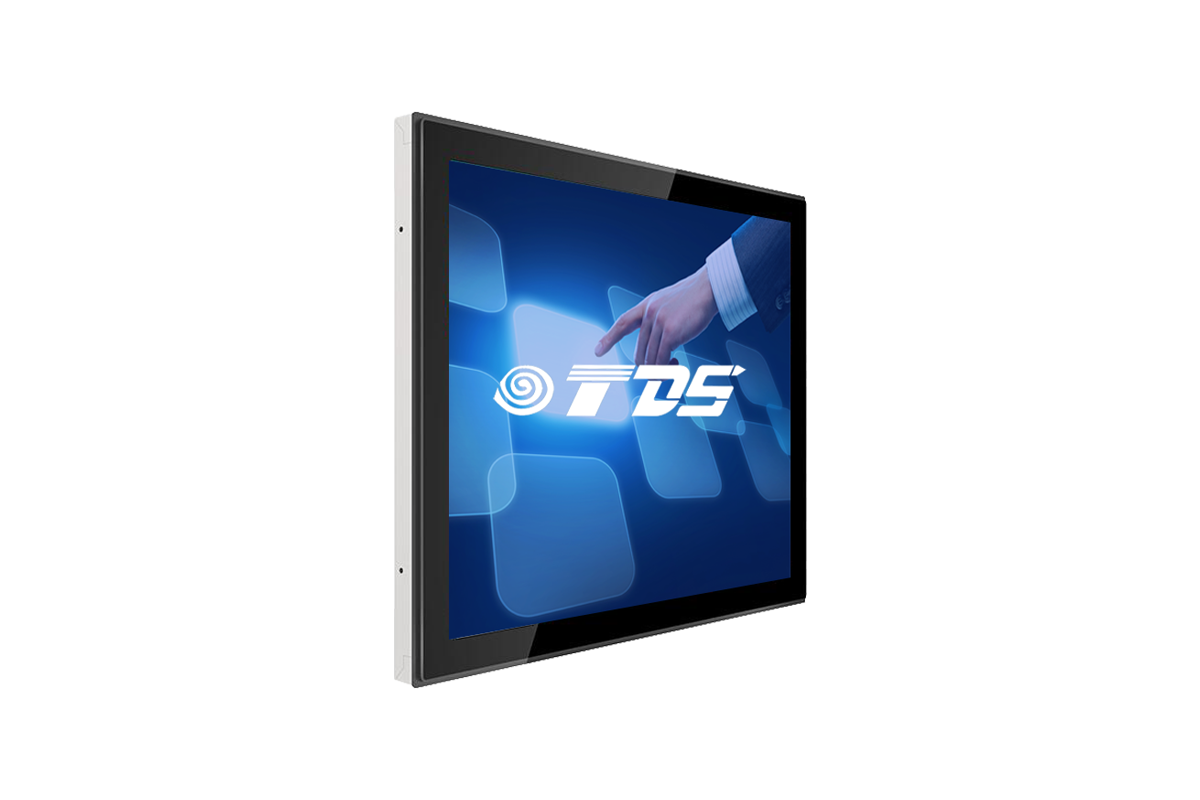

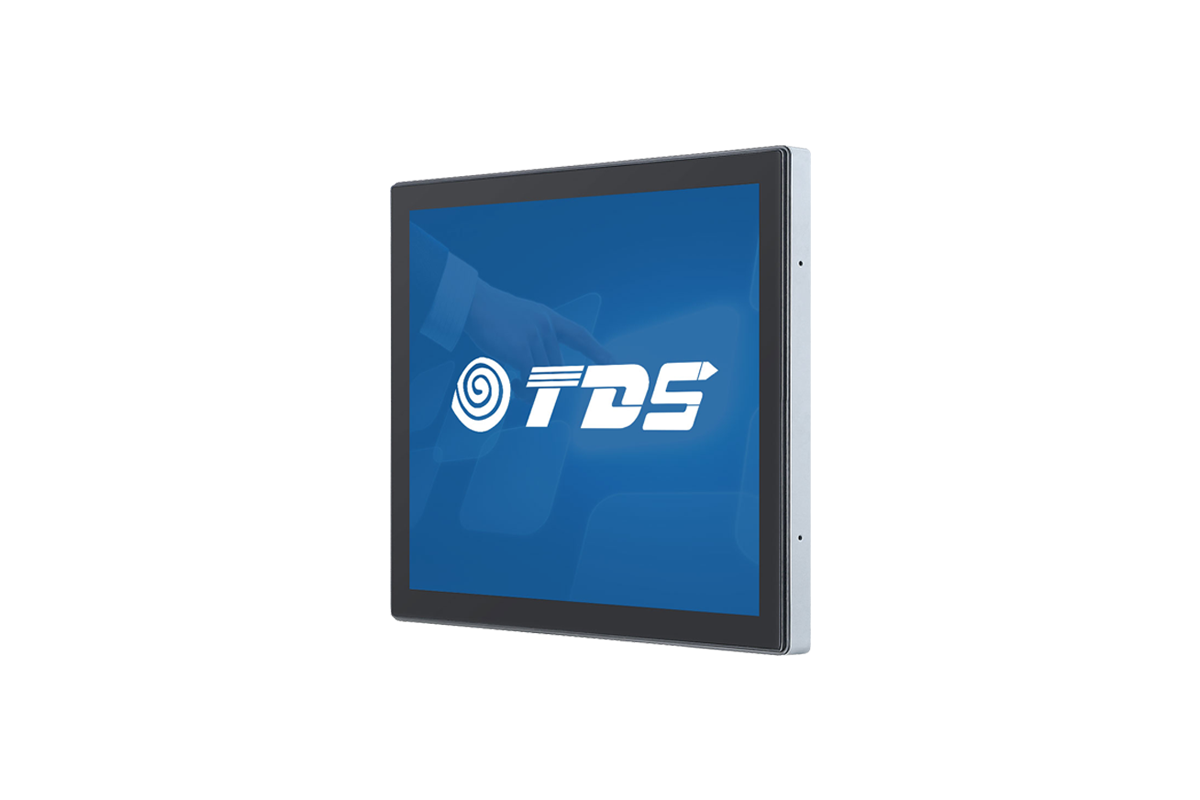

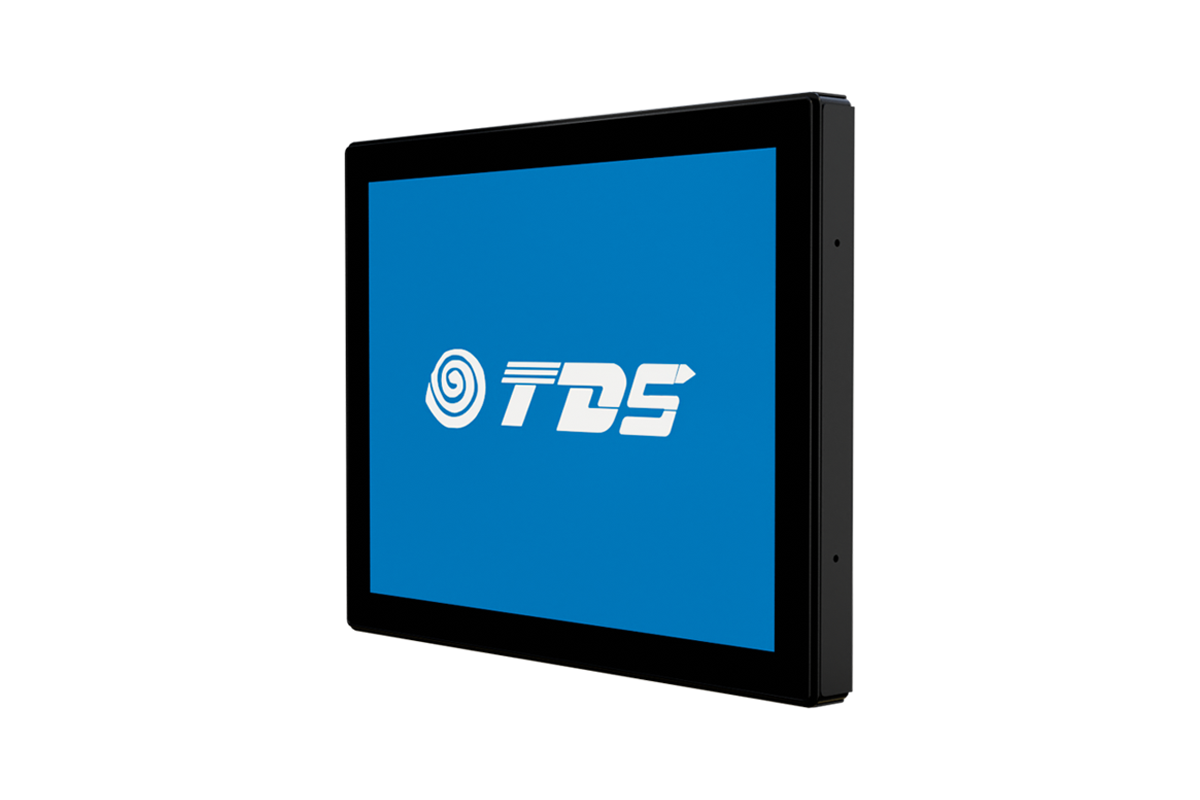

1738B 17" Openframe Touchscreen Monitor(5:4)
Kiosks, casino and amusement, Retail-self-service, industrial automation
Features
+ Metal material, flat surface, open structure design
+ Sealed touch screen & edge, waterproof and dustproof

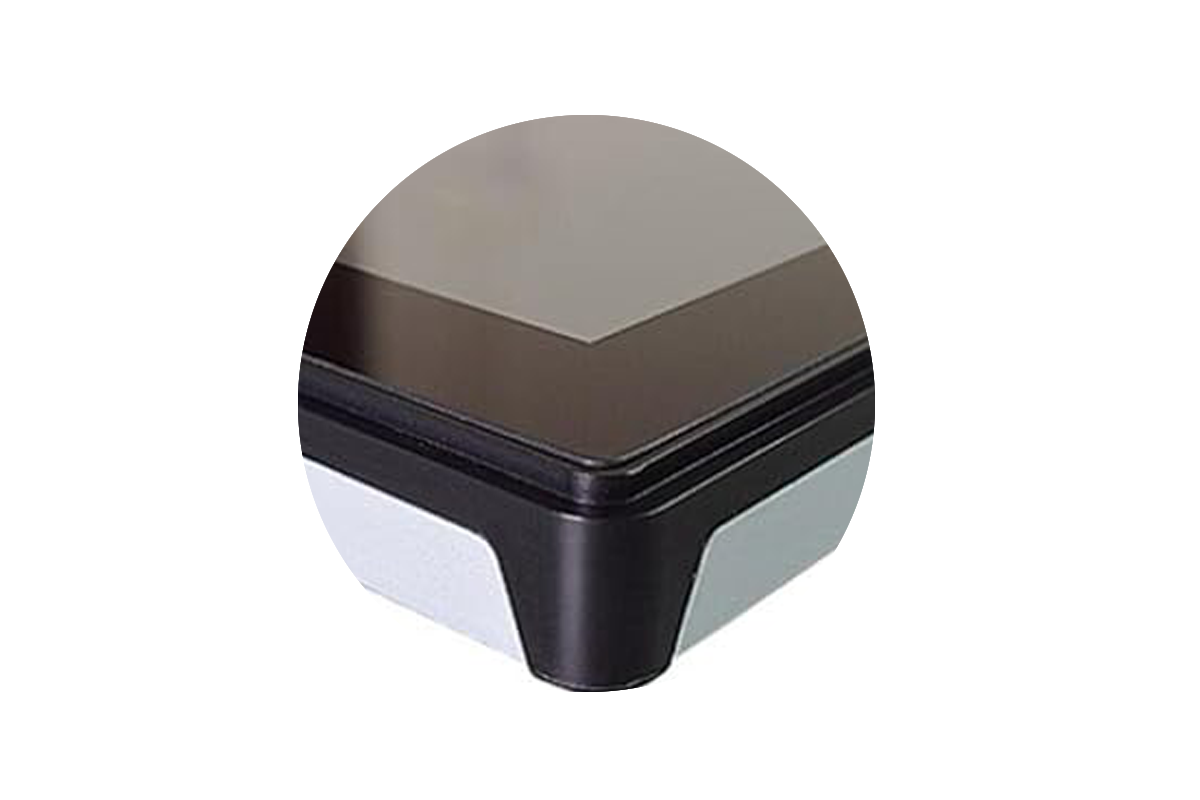

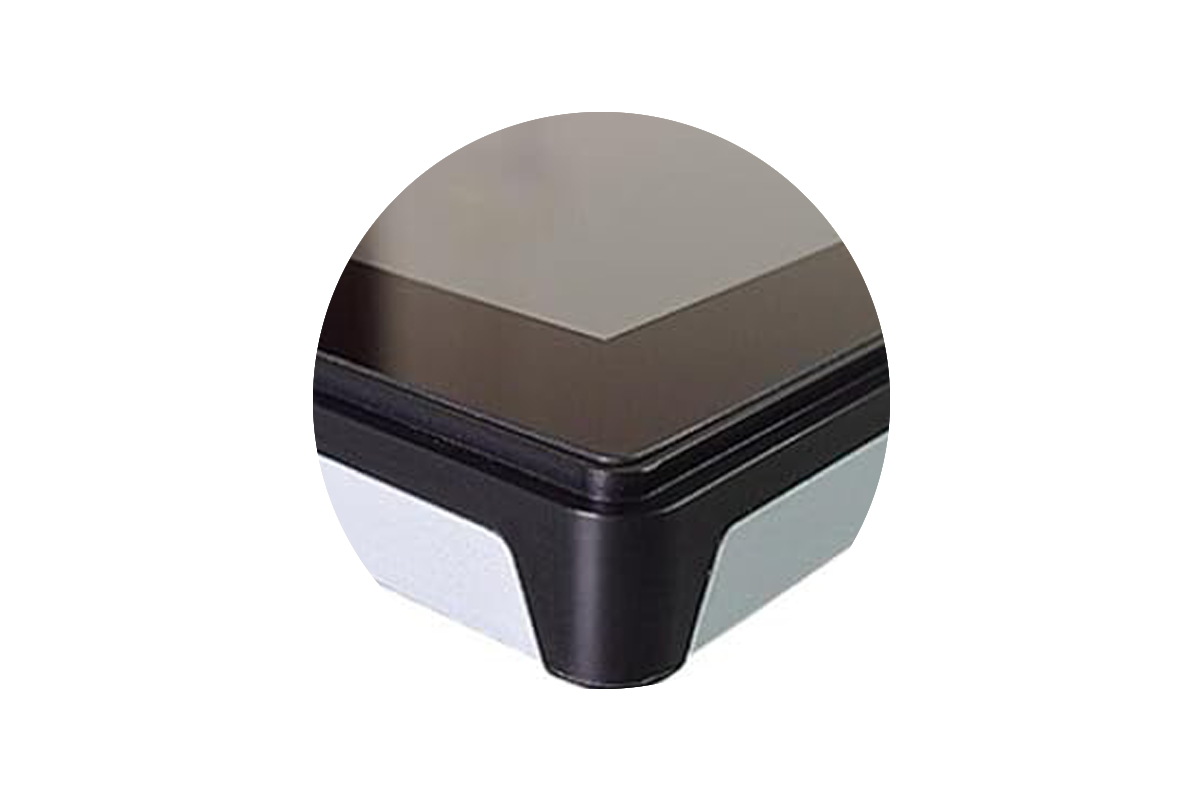

+ Step frame structure is easy to assemble
+ Industrial LCD screen, LED energy saving backlight
+ Standard screen ratio, 1280×1024@60Hz resolution@60Hz
+ Projected capacitive touch screen, 10-point touch supported
+ 3mm tempered touch glass with anti-fingerprint coating
+ Video interface: VGA+HDMI
+ Flexible mounting: Side holes and standard rear VESA holes
+ Support OS: Windows/Android/Linux
Optional
- No Touch
- Private Filter
- AG Coating
Specifications
Model
TDS1738B
Color
Black
Diagonal
17"
Aspect Ratio
5:4
Active Area
338 x 270(mm)
Dimensions
385 X 318 X 52(mm)
Resolution
1280 X 1024@60Hz
Contrast Ratio
1000:1
Viewing Angle
Horizontal: 85°/80°
Vertical: 85°/80°
Number of Colors
16.7M
Brightness (typical)
LED Panel: 300 nits
PCAP: 275 nits
LCD Response Time
8ms
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard),
Gloves touch (Thickness≤2mm)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch accuracy
≤2mm
Touch Interface
USB2.0(Standard)
Touch Response
12ms
Video Interface

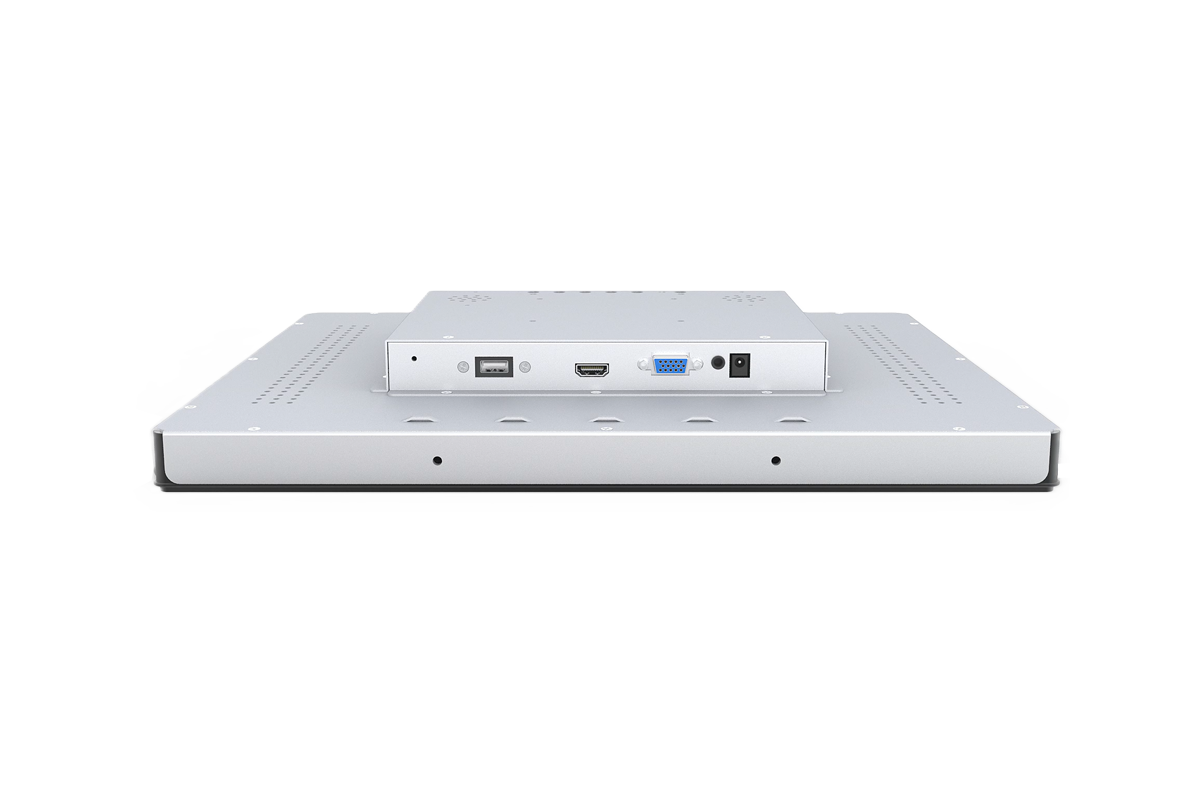

VGA+HDMI
Speaker(Optional)
2 X 2W
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Touchscreen Sealed to LCD
Drop Test
450g steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 4.3KG
Shipping Dimensions
520 x 400 x 135(mm)
Temperature
Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity
Operating: 20% to 80%;
Storage: 10% to 95%;
MTBF
50,000 hours
Mounting Options

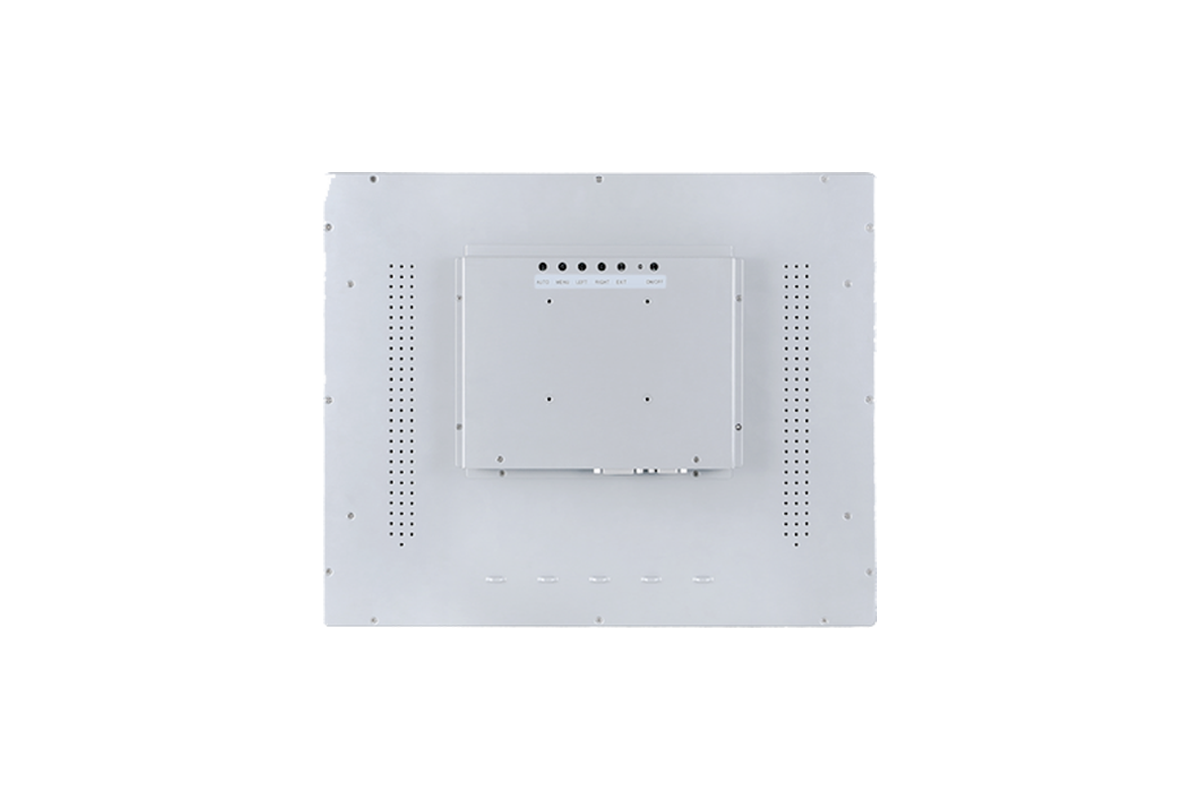

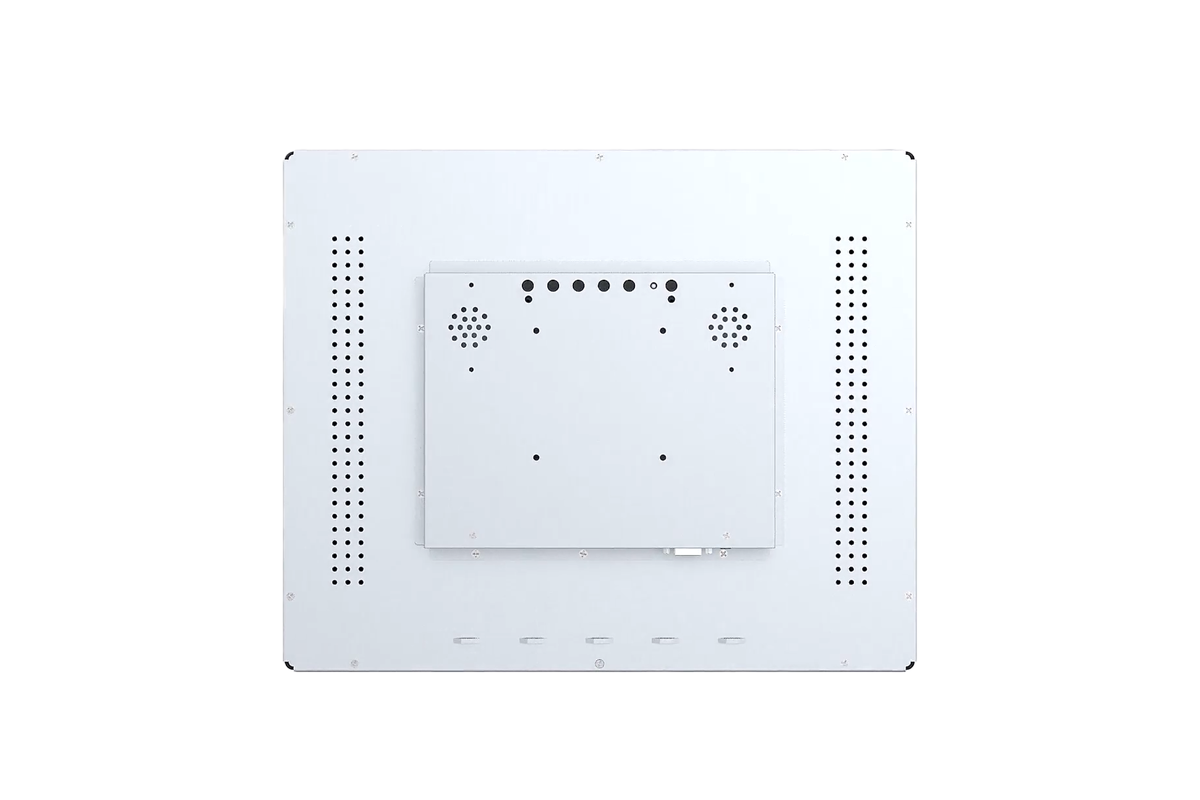

Two sets of VESA holes on the back: 75mm&100mm
There is a set of fixed holes on each side: 142mm
Power Supply
DC:12V3A
Warranty
3-year
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*USB cable,1*HDMI or VGA cable,1*DC cable
