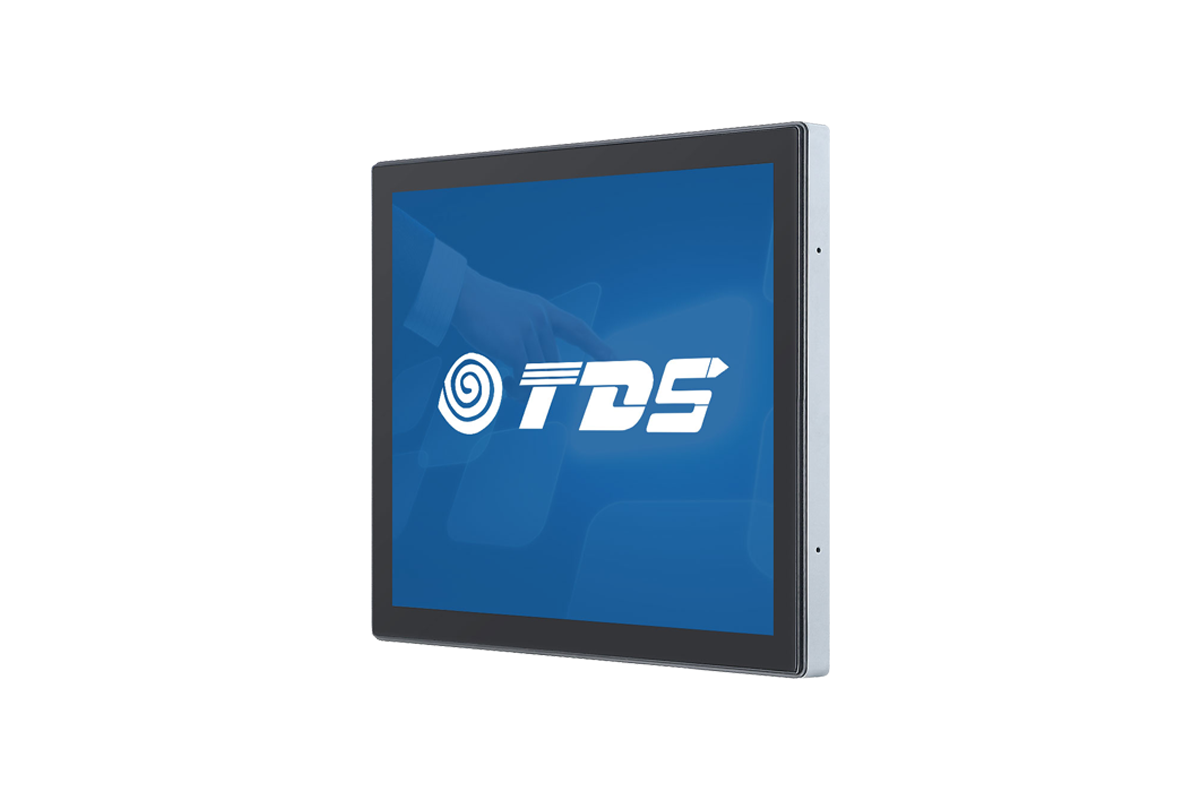

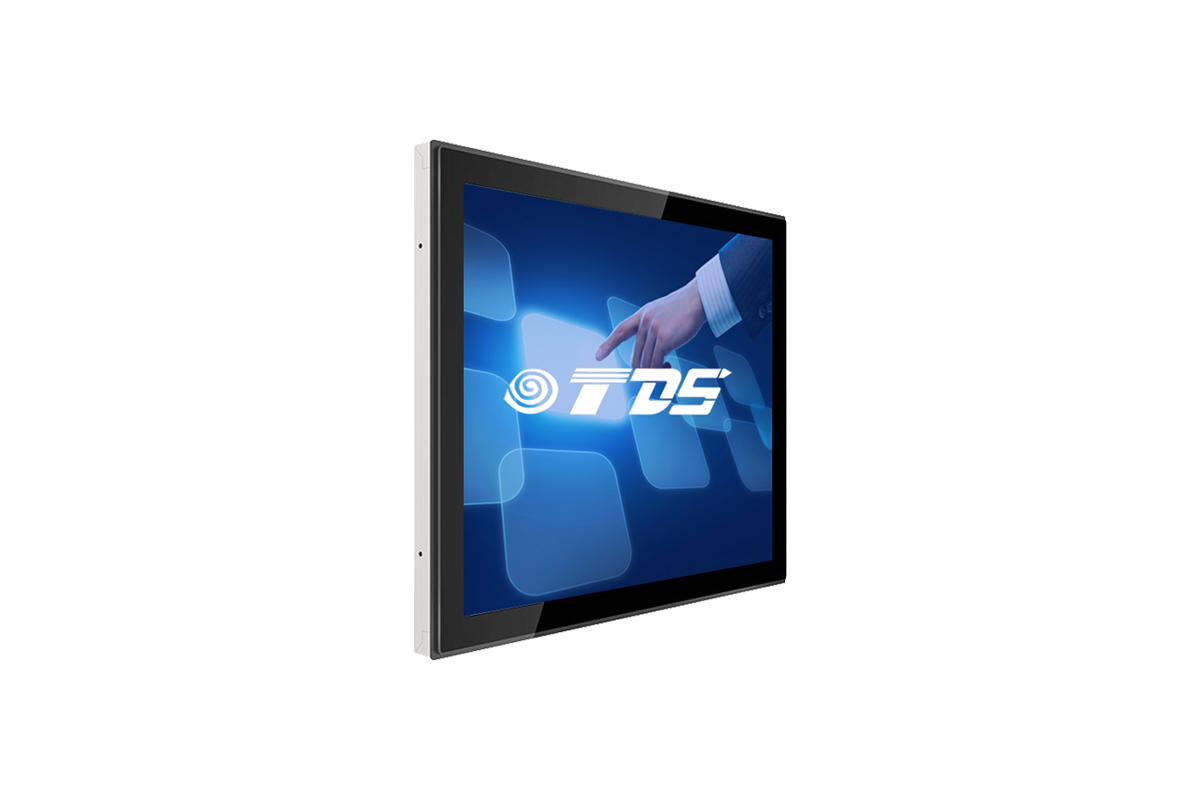

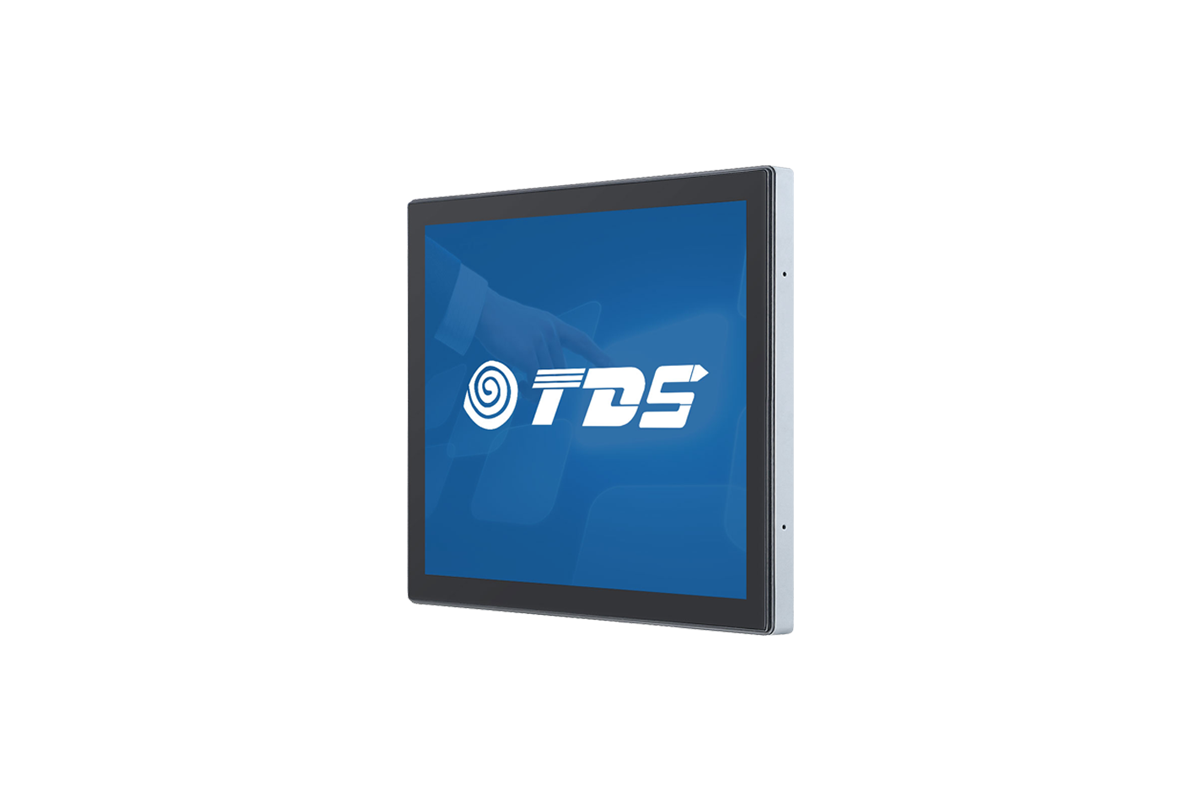

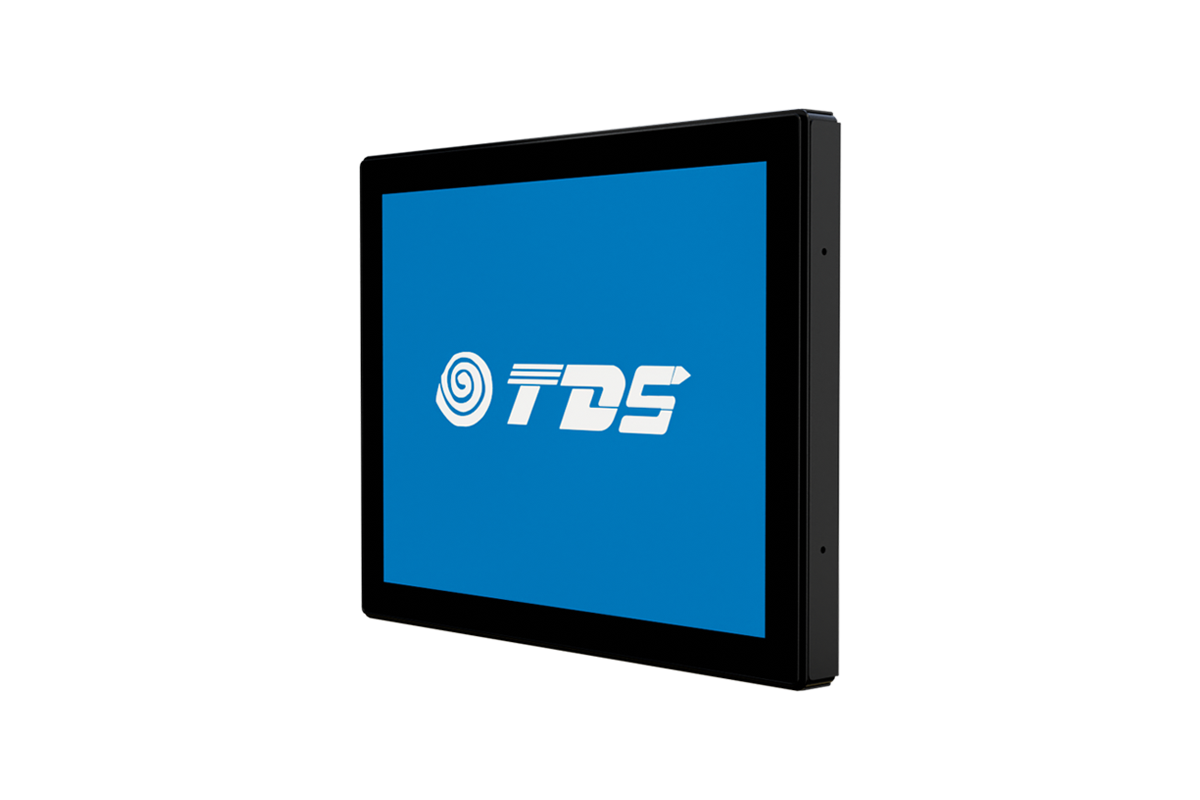

1538B 15" Openframe Touchscreen Monitor(4:3)
Kiosks, casino and amusement, Retail-self-service, industrial automation
Features

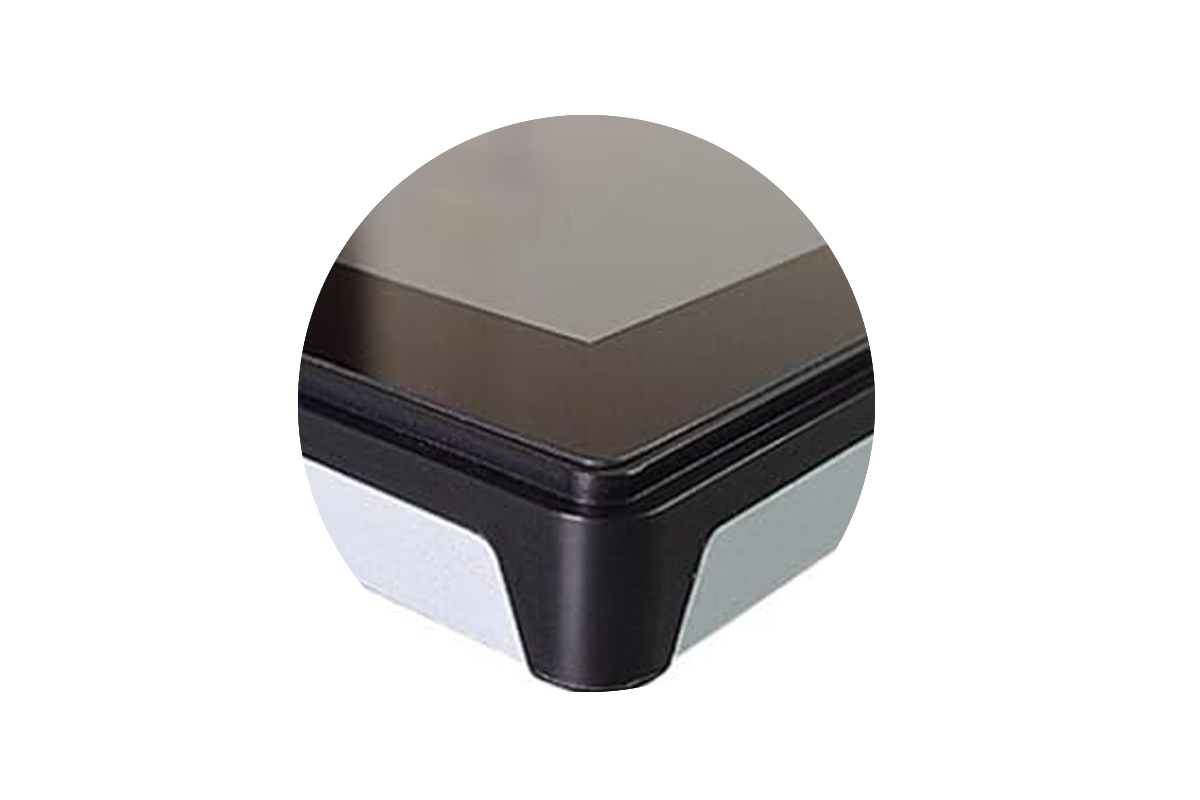

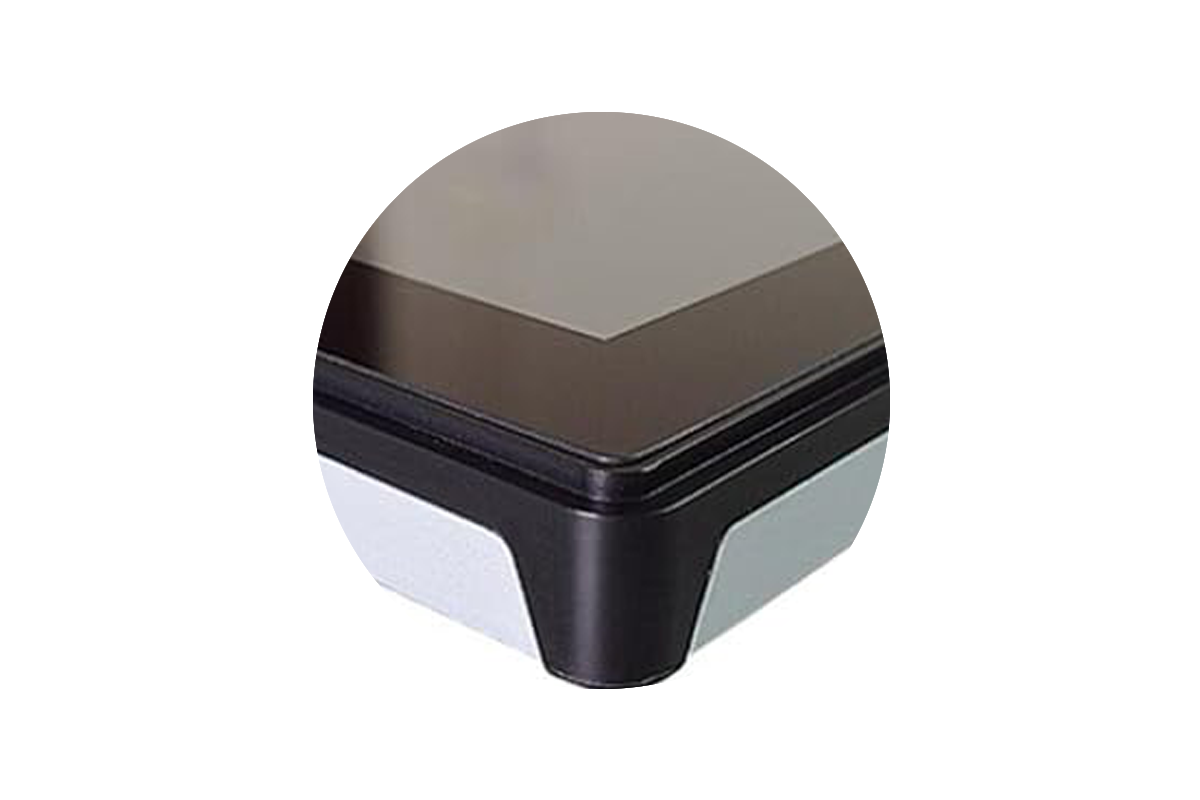

+ Metal material, flat surface, open structure design
+ Sealed touch screen & edge, waterproof and dustproof
+ Step frame structure is easy to assemble
+ Industrial LCD screen, LED energy saving backlight
+ Standard screen ratio, resolution1024X768@60Hz
+ Projected capacitive touch screen, 10-point touch supported
+ 3mm tempered touch glass with anti-fingerprint coating

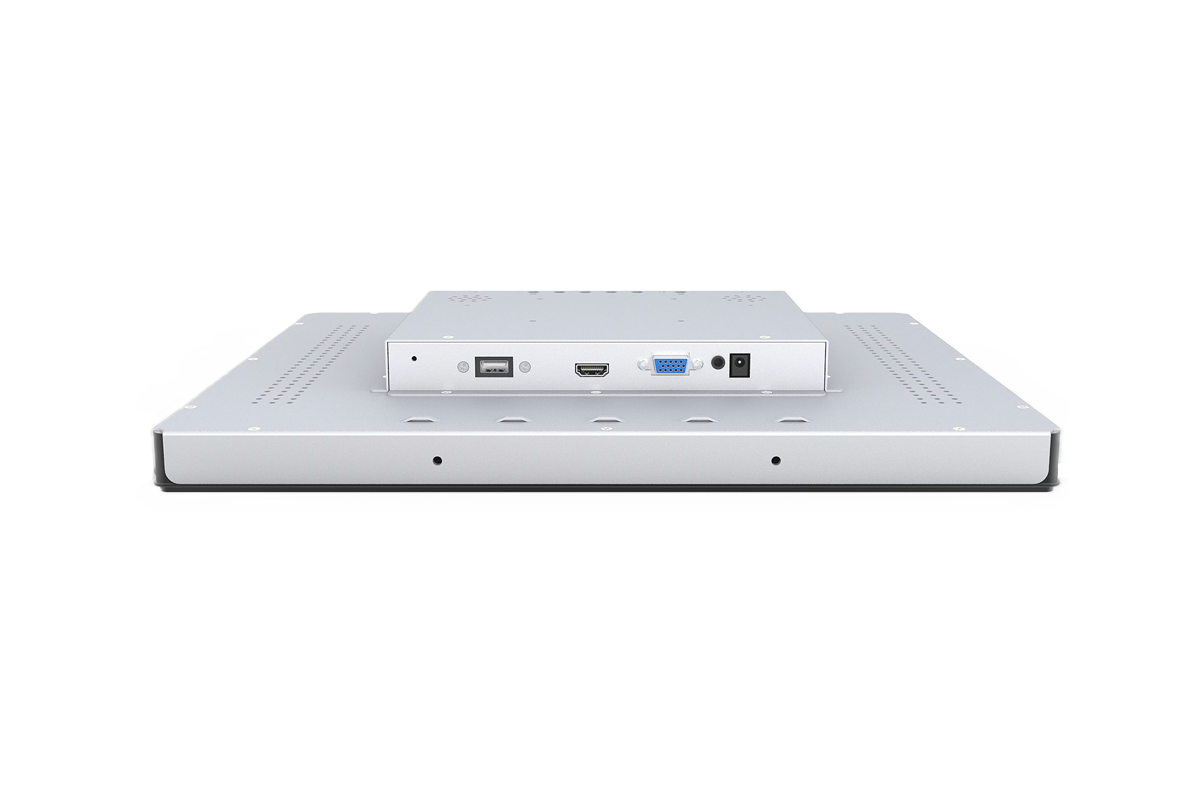

+ Video interface: VGA+HDMI
+ Flexible mounting: Side holes and standard rear VESA holes
+ Support OS: Windows/Android/Linux
Optional:
- No touch
- Private filter
- AG Coating
- Touch Control Serial Interface
Specifications
Model
TDS1538B
Diagonal
15"
Color
Black or Silver
Aspect Ratio
4:3
Resolution
1024 X 768@60Hz
Active Area
304 x 228(mm)
Dimensions
354 x 227 x 52(mm)
Cabinet Opening：345X268(mm)
Viewing Angle
Horizontal: 85°/85°
Vertical: 85°/85°
Number of Colors
16.7M, 72% NTSC
Brightness (typical)
LCD Panel: 350 nits
PCAP: 325 nits
Response Time
30ms
Contrast Ratio
1000:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard),
Gloves touch (Thickness≤2mm)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0(Standard)
Video Interface
VGA+HDMI
Speaker(Optional)
2 x 2W
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCD
Drop Test
450g steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 3.7KG
Shipping Dimensions
520 x 340 x 135(mm)
Temperature
Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity
Operating: 20% to 80%;
Storage: 10% to 95%;
MTBF
50,000 hours demonstrated
Mounting Options

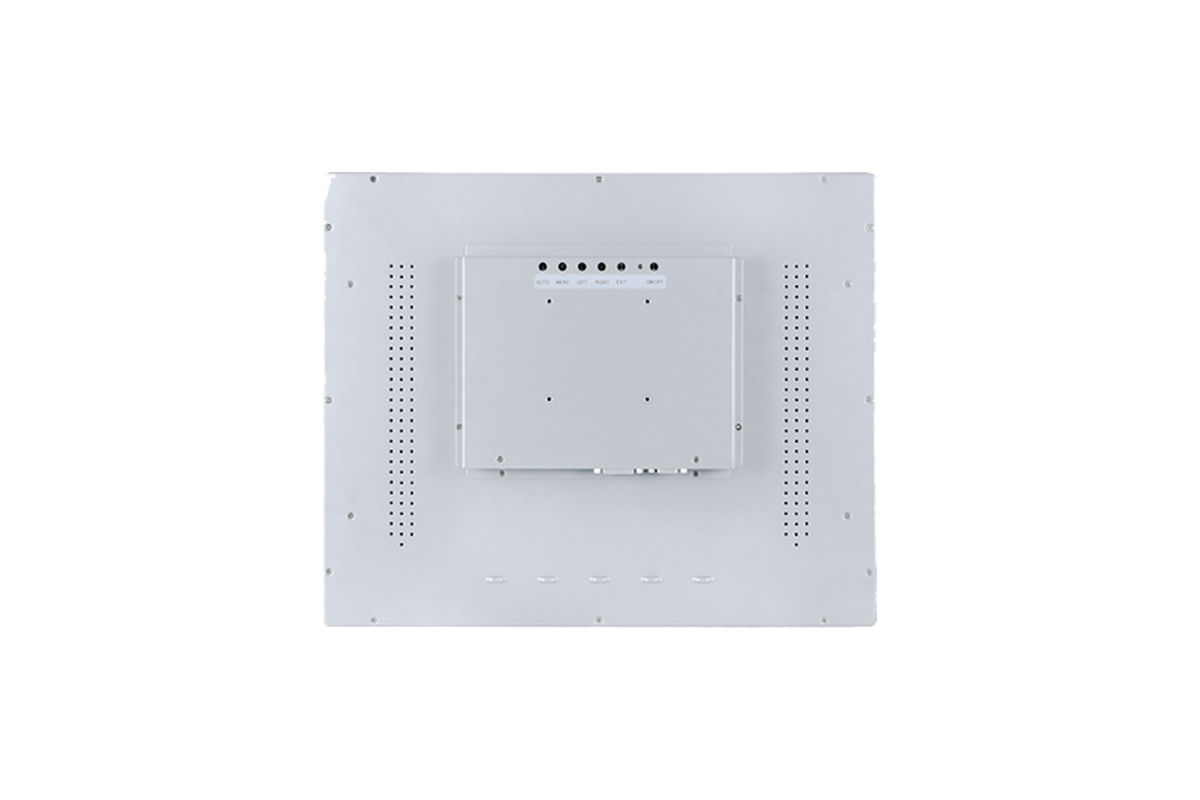

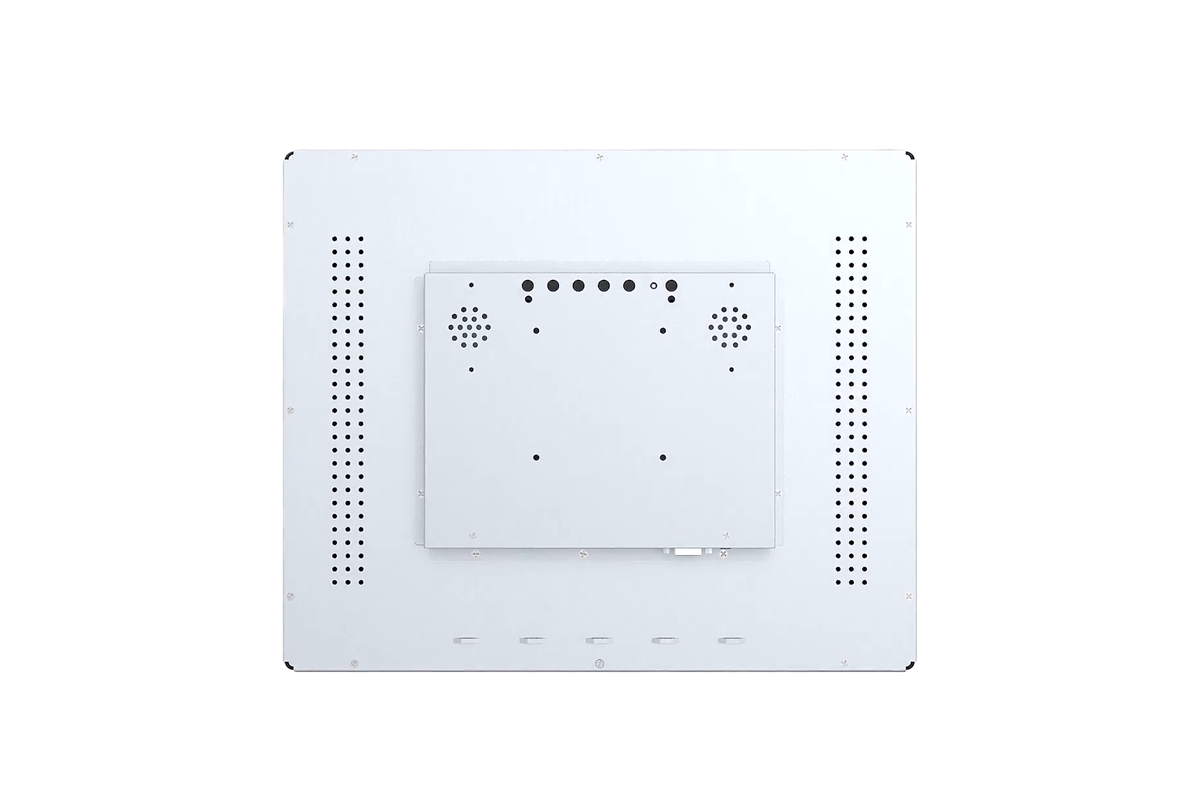

Two sets of VESA holes on the back: 75mm&100mm
There is a set of fixed holes on each side: 142mm
Power Supply
DC:12V3A
Warranty
3-year
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*USB cable,1* VGA or HDMI cable,1*DC cable
Accessories
Enhancements, expansions, and extras.
Resources
- 1538B Specification & Drawing
- VIEW
